DRACO SIRA
Stand-Alone

Individual computers can be accessed and operated remotely over an IP network using an HTML5.0 browser, client software or SIRA User Station.

Alternative module for stand-alone connections

Alternative module for stand-alone connections

Draco SIRA Stand-Alone (Series 488)

SIRA – Secure IP Remote Access
For installations that do not require full matrix switching capability, IHSE offers an IP module for direct computer connection. Individual computers can be accessed and operated remotely over an IP network using an HTML5 browser, client software or SIRA User Station down to the BIOS level since the Stand-Alone SIRA only connects to the external interfaces and does not require any drivers to be installed. Additional local outputs (signal feed-through) allow users to access the local computer at the same time. Includes USB virtual media support to enable transmitting files.

The modular design allows several mounting options including redundant power feeding. Up to three SIRA Stand-Alone encoders fit into 1RU. In combination with Draco tera matrix switching system for 4K60 networks, the SIRA Stand-Alone encoder is the ideal remote service gateway in combination with an HDMI 2.0 CON module (R495) without sacrificing the local 4K60 performance.

Product Features

Product Features

Draco SIRA Stand-Alone (Series 488)
  • Stand-Alone version directly connects to PCs or 3rd party KVM
  • HDMI input up to 4k30
  • USB HID input
  • Local console interface
  • HDMI embedded Audio
  • Virtual Media support (file transfer to target PC)

Specifications

Draco SIRA CON (Serie 488)
Input
HDMI up to 4K30, USB 2.0 (Type B)
Output
HDMI 4K30, 2x USB Type A, 1x RJ-45
Audio (embedded)
2-channel stereo audio
Maximum Resplution
Up to 4K30 or 1920 x 1200 x 60 Hz
Keyboard / Mouse
USB-HID
Supported Protocols
TCP/IP
Network Security Protocols
SSL with 128-bit or 256-bit encryption; SNMPv3, LDAPS
Power Supply
Power supply via the used Draco vario chassis
Current Draw
Max. 1.600 mA per extender module (power input via the used Draco vario chassis)
Dimensions
40 x 129 x 145 mm
Weight
approx. 120 g

Part-No.

Draco SIRA Stand-Alone (Series 488)
Devices

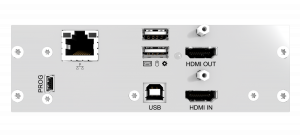

R488-BIPHHL

Draco SIRA Stand-Alone module with native HDMI and USB interfaces

Downloads

Draco SIRA Stand-Alone (Series 488)

System Diagram

System Diagram​

Draco SIRA Stand-Alone (Series 488)
Room B: Remote user via Desktop PC running remote client SW or HTML5 browser
Room A: Stand-Alone PC with local user
Room B: Remote user via dedicated SIRA Remote User Station (K488-UST)
Room A: Stand-Alone PC with local user
