Draco vario DisplayPort 1.1 DH

The Draco vario DisplayPort 1.1 Dual-Head extender enables video transmission of two DisplayPort including keyboard and mouse signals over a single duplex fiber optic cable or a Cat X cable and includes keyboard and mouse control. This reduces the complexity of an installation, saves cost, space, cabling and reduces the need for matrix ports in a KVM matrix switch installation.

Product Information

Draco vario DisplayPort 1.1 DH - Series 483

The Draco vario DisplayPort 1.1 Dual-Head KVM extender allows the visually lossless extension of highresolution video and audio signals via the DisplayPort interface. Fully digital video signals can be transmitted in Single-Head operation in 4K resolutions up to 4096 x 2160 (4K DCI) and 3840 x 2160 (UHD). In Dual-Head mode, resolutions of up to 1920 x 1200 pixels per channel are supported. The embedded audio signal is directly reproduced by the connected displays with integrated speakers. In combination with optional analog or digital audio modules, the stereo signal can be
extracted and outputted separately. The Draco vario DisplayPort 1.1 Dual-Head KVM extender is also compatible* with Draco tera KVM matrix systems.

Produkt Features

Draco vario DisplayPort 1.1 DH - Series 483
  • Operation of a CPU from a remote workstation with two DisplayPort monitors and USB HID devices (keyboard/mouse)
  • Transmission of fully digital video signals up to 4K DCI (4096 x 2160) and UHD (3840 x 2160) up to 30 Hz, color depth 8 bit (4:4:4)
  • The DisplayPort interface can transmit the audio format at a sample rate of up to 192 kHz
  • Intelligent monitor EDID management
  • Optional: Redundant connections for 24/7 availability
  • Compatibility with all common operating systems (Linux, Unix, Windows, Mac OS) and Draco vario chassis
  • Compatible* with IHSE Draco tera KVM matrix systems, all add-on modules of the Draco vario extender series for audio and data signals such as USB or RS232

*Draco vario CONs only support connectivity to Draco vario CPUs.

Specification

Draco vario DisplayPort 1.1 DH - Series 483
Input
Primary channel: 1x DisplayPort 1.1
Secondary channel: 1x Mini DisplayPort 1.1
Output
Primary channel: 1x DisplayPort 1.1
Secondary channel: 1x Mini DisplayPort 1.1
Audio (embedded)
Stereo Linear Pulse Code Modulation (LPCM), DTS, DTS-HD (5.1), Dolby Digital, Dolby Digital Plus (5.1)
Maximum Resolution
Single-Head operation
(primary channel)
1920 x 1080 @ 120 Hz (reduced blanking)
1920 x 1200 @ 120 Hz (normal blanking)
2560 x 1440 @ 60 Hz (normal blanking)
3840 x 2160 @ 30 Hz - UHD (reduced blanking)
4096 x 2160 @ 30 Hz - 4K DCI (reduced blanking)
Dual-Head operation
(primary and secondary channel)
1920 x 1080 @ 60 Hz (reduced blanking)
1920 x 1200 @ 60 Hz (reduced blanking)
Keyboard / Mouse
USB-HID
Interfaces with optional add-on modules
USB 2.0 embedded (36, 50/100 or 480 Mbit/s), USB-HID, PS/2, analog audio with RS232 or RS422, digital audio, balanced audio.
Suitable add-on modules under the following link: https://www.ihse.com/add-on-modules/
Maximum Cable Distance
Cat X
140 m
Single-Mode Fiber (9 μ)
10.000 m
Single-Mode Fiber XV (9 μ)
5.000 m
Multi-Mode Fiber (50 μ, OM3)
1.000 m
Multi-Mode Fiber (50 μ)
400 m
Power Supply
Power supply via the used Draco vario chassis
Current draw
Max. 1.600 mA per extender module (power input via the used Draco vario chassis)
Dimensions
20 x 129 x 143 mm
Weight
100 g
Chassis / mounting accessories
Suitable Draco vario chassis and mounting accessories under the following link: https://www.ihse.com/chassis-accessoires/
Upgradable
Onboard flash

Part-No.

Draco vario DisplayPort 1.1 DH - Series 483

All Variations

ImageModellDescription
L483-B2HCDraco vario CPU module DP1.1, DH, 4K30 o. 2x1080p, USB HID, Cat X 1G
L483-B2HSDraco vario CPU module DP1.1, DH, 4K30 o. 2x1080p, USB HID, Fiber LC SM 1G
L483-B2HXDraco vario CPU module DP1.1, DH, 4K30 o. 2x1080p, USB HID, Fiber LC SM 3G
L483-B2HCRDraco vario CPU module DP1.1, DH, 4K30 o. 2x1080p, USB HID, Cat X 1G, red.
L483-B2HSRDraco vario CPU module DP1.1, DH, 4K30 o. 2x1080p, USB HID, Fiber LC SM 1G, red.
L483-B2HXRDraco vario CPU module DP1.1, DH, 4K30 o. 2x1080p, USB HID, Fiber LC SM 3G, red.

All Variations

ImageModellDescription
R483-B2HCDraco vario CON module DP1.1, DH, 4K30 o. 2x1080p, USB HID, Cat X 1G
R483-B2HSDraco vario CON module DP1.1, DH, 4K30 o. 2x1080p, USB HID, Fiber LC SM 1G
R483-B2HXDraco vario CON module DP1.1, DH, 4K30 o. 2x1080p, USB HID, Fiber LC SM 3G
R483-B2HCRDraco vario CON module DP1.1, DH, 4K30 o. 2x1080p, USB HID, Cat X 1G, red.
R483-B2HSRDraco vario CON module DP1.1, DH, 4K30 o. 2x1080p, USB HID, Fiber LC SM 1G, red.
R483-B2HXRDraco vario CON module DP1.1, DH, 4K30 o. 2x1080p, USB HID, Fiber LC SM 3G, red.

Downloads

Draco vario DisplayPort 1.1 DH - Series 483

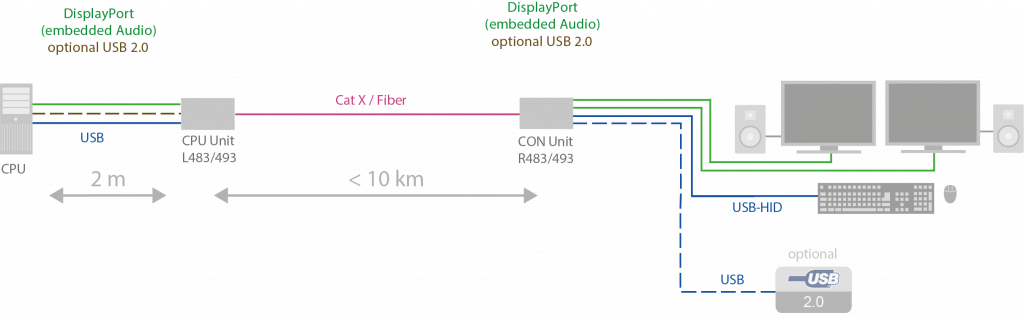

System Diagram

Draco vario DisplayPort 1.1 DH - Series 483
