Draco tera flex
The new Draco tera flex matrix switch delivers an even higher level of performance, with enhanced flexibility, modularity, scalability and functionality.
Product Information
The Draco tera flex matrix switching series with its compact size of 1, 2 or 4RU and up to 160 Flex-Ports is designed to support both small to midsize applications as well as large ones.
With its capability to facilitate 1G and 3G technology within a single frame as well as Cat X and fiber interfaces, it supports modern applications with a mix of 2K and 4K in very economic way. Custom design chassis even allow for future field upgradability scaling a system from 40-Port to 80-Port or even 160-Port completely non-blocking.
Grid connectivity
With its 10G Grid option Draco tera flex can act as a nice satellite to a core enterprise system using the least amount of infrastructure building a deployed homogeneous large matrix grid.
Ease of setup
By simply connecting the extender to the chassis, the internal control software will recognize and auto-configure the port as a CPU or console device. This Flex-Port technology provides a huge time saving for system installers who normally have to pre-configure ports to specific I/O requirements. The system supports also instant switching technology. With incredible speed, switching between sources is glitch-free and instantaneous thus reducing eye strain and annoying video tearing found with other systems. Where centralized switching of KVM is necessary, the Draco tera flex is the perfect KVM solution. It is especially suited for factory floor automation control systems, production studios, OB Vans, and command and control environments.
Compatibility
Draco tera flex is compatible with all Draco vario extenders. All that needs to be taken care of is correct link speed and interface of the used endpoints and their Codec version. Draco tera flex is already prepared for future backward compatibility of Draco vario ultra CON units to Draco vario CPUs.
Product Features
Features compatible to current Draco tera enterprise series and those with new Controller Card
- SNMPv3, LDAPS
- O/S v04.x support for multilingual OSD /Chinese, German, French, Spanish, …)
- encrypted communication for API, Tool and Grid, individual routing of protocols
- faster boot up
- improved Grid integration (faster & more reliable communication) incl. Grid module
Variations with Cat X and fiber as well as 1G, 3G possible – also mixed is possible
Prepared for upcoming 1G/3G compatibility, IPv6
Internal modular concept allows for scalability and maintenance (similar to Draco major series)
Compatible to all Draco vario and Draco vario ultra extenders
Redundant Power supply unit and Network interface connections
Versatility: With only 3 types of chassis and only 5 types of I/O modules, an almost endless number of customer specific Draco tera flex matrix switches are possible
Replaces current Draco tera compact series – the 8-port compact switch will still be available as an entry-level variant for smaller KVM installations
Prepared for 19″ installation, mounting brackets included
Draco tera flex Inquiry
For personalized insights and dedicated support, explore our additional resources.
System Diagrams
Part-No.
-
Cat X & Cat X 3G
K480-C16Draco tera flex KVM matrix 16 ports, Cat X 1G
K480-C24Draco tera flex KVM matrix 24 ports, Cat X 1G

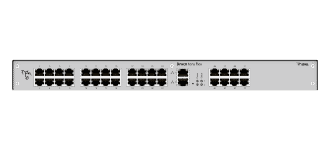

K480-C32Draco tera flex KVM matrix 32 ports, Cat X 1G
K480-C40Draco tera flex KVM matrix 40 ports, Cat X 1G
K480-C48Draco tera flex KVM matrix 48 ports, Cat X 1G

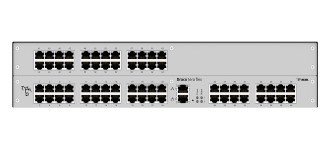

K480-C64Draco tera flex KVM matrix 64 ports, Cat X 1G
K480-C80Draco tera flex KVM matrix 80 ports, Cat X 1G
K480-C120Draco tera flex KVM matrix 120 ports, Cat X 1G
K480-C128Draco tera flex KVM matrix 128 ports, Cat X 1G
K480-C144Draco tera flex KVM matrix 144 ports, Cat X 1G
K480-C160Draco tera flex KVM matrix 160 ports, Cat X 1G
K480-CX16Draco tera flex KVM matrix 16 ports, Cat X 3G
K480-CX24Draco tera flex KVM matrix 24 ports, Cat X 3G
K480-CX32Draco tera flex KVM matrix 32 ports, Cat X 3G
K480-CX40Draco tera flex KVM matrix 40 ports, Cat X 3G
K480-CX48Draco tera flex KVM matrix 48 ports, Cat X 3G
K480-CX64Draco tera flex KVM matrix 64 ports, Cat X 3G
K480-CX80Draco tera flex KVM matrix 80 ports, Cat X 3G
K480-CX120Draco tera flex KVM matrix 120 ports, Cat X 3G
K480-CX128Draco tera flex KVM matrix 128 ports, Cat X 3G
K480-CX144Draco tera flex KVM matrix 144 ports, Cat X 3G
K480-CX160Draco tera flex KVM matrix 160 ports, Cat X 3G -
Fiber & Fiber 3G
K480-F16Draco tera flex KVM matrix 16 ports, fiber 1G
K480-F24Draco tera flex KVM matrix 24 ports, fiber 1G

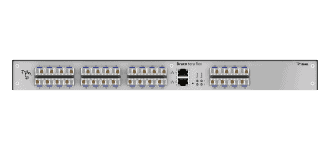

K480-F32Draco tera flex KVM matrix 32 ports, fiber 1G
K480-F40Draco tera flex KVM matrix 40 ports, fiber 1G
K480-F48Draco tera flex KVM matrix 48 ports, fiber 1G
K480-F64Draco tera flex KVM matrix 64 ports, fiber 1G
K480-F80Draco tera flex KVM matrix 80 ports, fiber 1G
K480-F120Draco tera flex KVM matrix 120 ports, fiber 1G
K480-F128Draco tera flex KVM matrix 128 ports, fiber 1G

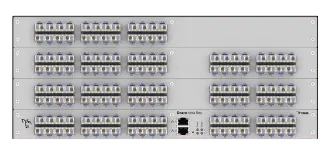

K480-F144Draco tera flex KVM matrix 144 ports, fiber 1G

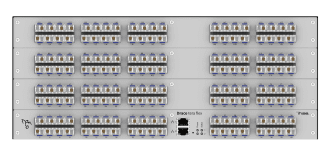

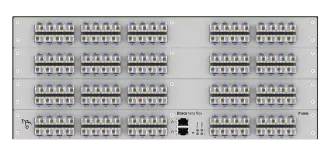

K480-F160Draco tera flex KVM matrix 160 ports, fiber 1G
K480-FX16Draco tera flex KVM matrix 16 ports, fiber 3G
K480-FX24Draco tera flex KVM matrix 24 ports, fiber 3G
K480-FX32Draco tera flex KVM matrix 32 ports, fiber 3G
K480-FX40Draco tera flex KVM matrix 16 ports, fiber 3G
K480-FX48Draco tera flex KVM matrix 48 ports, fiber 3G
K480-FX64Draco tera flex KVM matrix 64 ports, fiber 3G
K480-FX80Draco tera flex KVM matrix 80 ports, fiber 3G
K480-FX120Draco tera flex KVM matrix 120 ports, fiber 3G
K480-FX128Draco tera flex KVM matrix 128 ports, fiber 3G
K480-FX144Draco tera flex KVM matrix 144 ports, fiber 3G
K480-FX160Draco tera flex KVM matrix 160 ports, fiber 3G -
Hybrid & Hybrid 3G
K480-C24F16Draco tera flex KVM matrix 40 ports, hybrid 1G
K480-C24F40Draco tera flex KVM matrix 64 ports, hybrid 1G
K480-C40F24Draco tera flex KVM matrix 64 ports, hybrid 1G

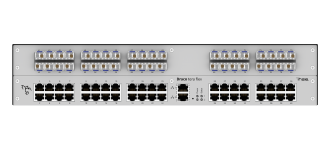

K480-C40F40Draco tera flex KVM matrix 80 ports, hybrid 1G
K480-C80F40Draco tera flex KVM matrix 120 ports, hybrid 1G

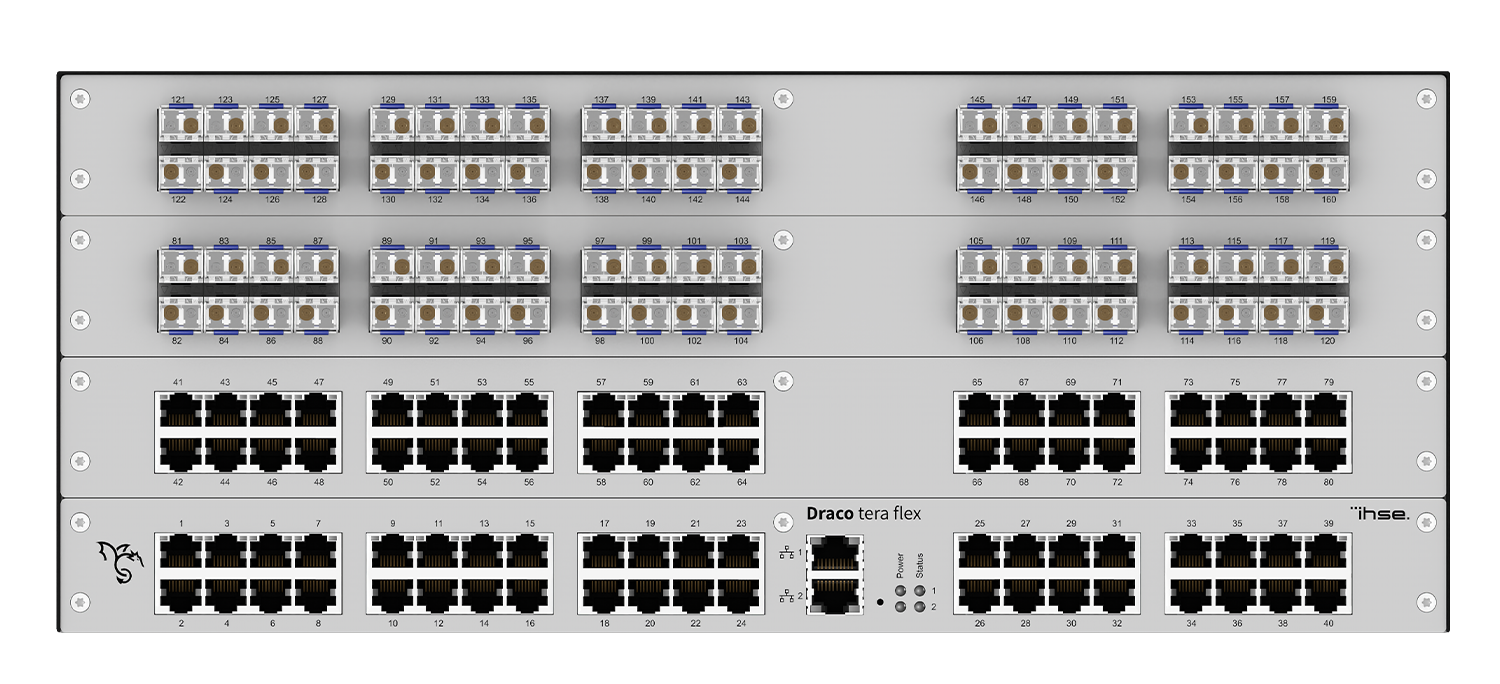

K480-C80F80Draco tera flex KVM matrix 160 ports, hybrid 1G

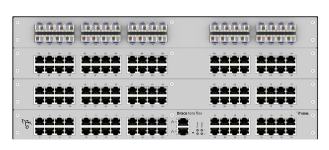

K480-C120F40Draco tera flex KVM matrix 160 ports, hybrid 1G
K480-CX24FX16Draco tera flex KVM matrix 40 ports, hybrid 3G
K480-CX24FX40Draco tera flex KVM matrix 64 ports, hybrid 3G
K480-CX40FX24Draco tera flex KVM matrix 64 ports, hybrid 3G
K480-CX40FX40Draco tera flex KVM matrix 80 ports, hybrid 3G
K480-CX80FX40Draco tera flex KVM matrix 120 ports, hybrid 3G
K480-CX80FX80Draco tera flex KVM matrix 160 ports, hybrid 3G
K480-CX120FX40Draco tera flex KVM matrix 160 ports, hybrid 3G -
IP Gateway / Grid Versions

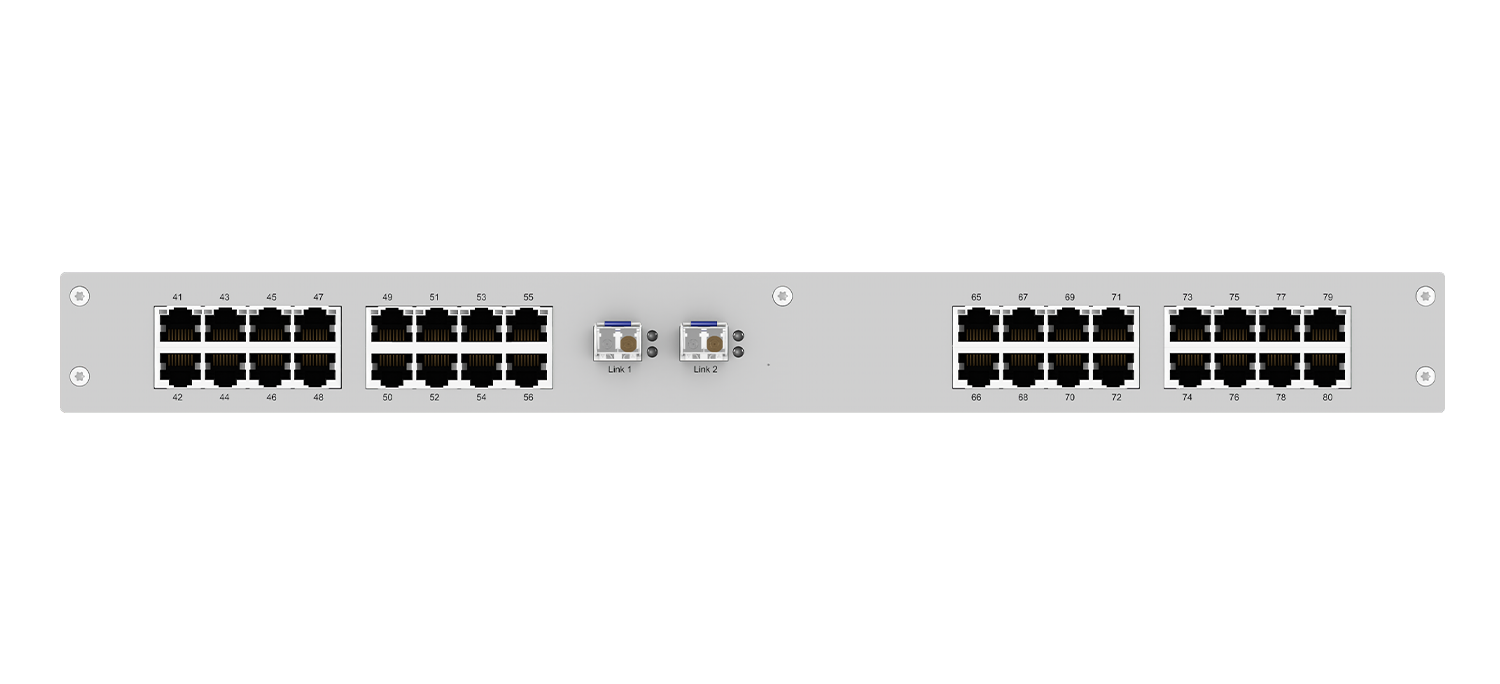

K480-C32GDraco tera flex KVM-Matrix 40-Port, 32x Cat X 1G, 1x IP Gateway
K480-F32GDraco tera flex KVM-Matrix 40-Port, 32x Fiber 1G, 1x IP Gateway
K480-C16F16GDraco tera flex KVM-Matrix 40-Port, 16x Cat X/16x Fiber 1G, 1x IP Gateway, 1 RU
K480-C16F16G-2RUDraco tera flex KVM-Matrix 40-Port, 16x Cat X/16x Fiber 1G, 1x IP Gateway, custom design, 2 RU
K480-C16F16G-4RUDraco tera flex KVM-Matrix 40-Port, 16x Cat X/16x Fiber 1G, 1x IP Gateway, custom design, 4 RU
K480-C24G2Draco tera flex KVM-Matrix 40-Port, 24x Cat X 1G , 2x IP Gateway, 1 RU
K480-C24G2-2RUDraco tera flex KVM-Matrix 40-Port, 24x Cat X 1G, 2x IP Gateway, custom design, 2 RU
K480-C24G2-4RUDraco tera flex KVM-Matrix 40-Port, 24x Cat X 1G, 2x IP Gateway, custom design, 4 RU
K480-F24G2Draco tera flex KVM-Matrix 40-Port, 24x Fiber 1G, 2x IP Gateway, 1RU
K480-F24G2-2RUDraco tera flex KVM-Matrix 40-Port, 24x Fiber 1G, 2x IP Gateway, custom design, 2 RU
K480-F24G2-4RUDraco tera flex KVM-Matrix 40-Port, 24x Fiber 1G, 2x IP Gateway, custom design, 4 RU -
Custom Design Starterkit 2RU up to 80 Ports

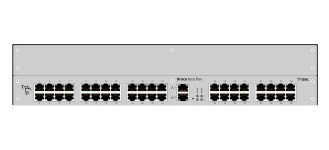

K480-C40-2RUDraco tera flex KVM matrix 40 ports, custom design 2RU, Cat X 1G
K480-F40-2RUDraco tera flex KVM matrix 40 ports, custom design 2RU, fiber 1G
K480-C24F16-2RUDraco tera flex KVM matrix 40 ports, custom design 2RU, hybrid 1G
K480-CX40-2RUDraco tera flex KVM matrix 40 ports, custom design 2RU, Cat X 3G
K480-FX40-2RUDraco tera flex KVM matrix 40 ports, custom design 2RU, fiber 3G
K480-CX24FX16-2RUDraco tera flex KVM matrix 40 ports, custom design 2RU, hybrid 3G

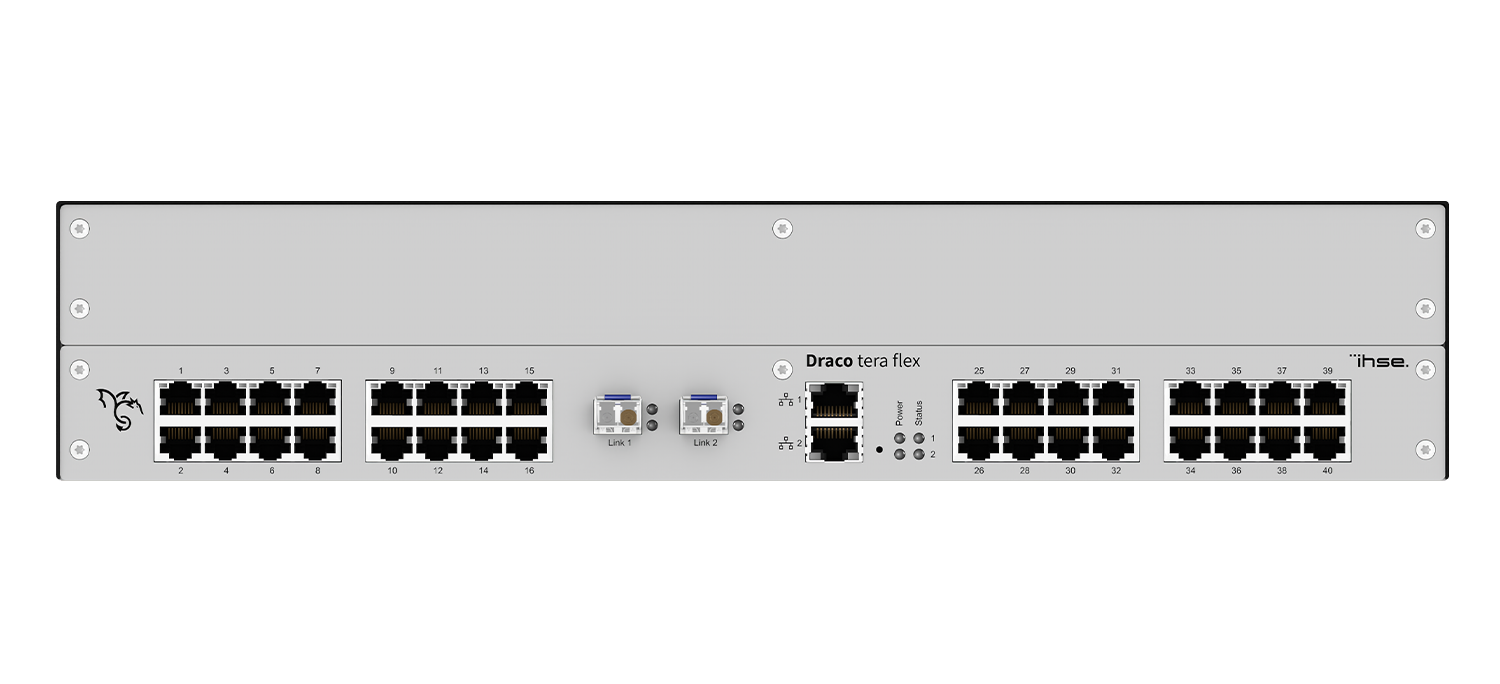

K480-C32G-2RUDraco tera flex KVM matrix 32 ports + Grid, custom design 2RU, Cat X 1G
K480-F32G-2RUDraco tera flex KVM matrix 32 ports + Grid, custom design 2RU, fiber 1G -
Custom Design Starterkit 2RU up to 160 Ports

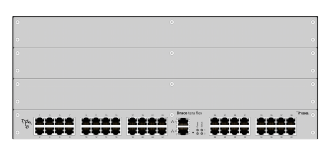

K480-C40-4RUDraco tera flex KVM matrix 40 ports, custom design 4RU, Cat X 1G
K480-F40-4RUDraco tera flex KVM matrix 40 ports, custom design 4RU, fiber 1G
K480-C24F16-4RUDraco tera flex KVM matrix 40 ports, custom design 4RU, hybrid 1G
K480-CX40-4RUDraco tera flex KVM matrix 40 ports, custom design 4RU, Cat X 3G
K480-FX40-4RUDraco tera flex KVM matrix 40 ports, custom design 4RU, fiber 3G
K480-CX24FX16-4RUDraco tera flex KVM matrix 40 ports, custom design 4RU, hybrid 3G
K480-C32G-4RUDraco tera flex KVM matrix 32 ports + Grid, custom design 4RU, Cat X 1G
K480-F32G-4RUDraco tera flex KVM matrix 32 ports + Grid, custom design 4RU, fiber 1G
