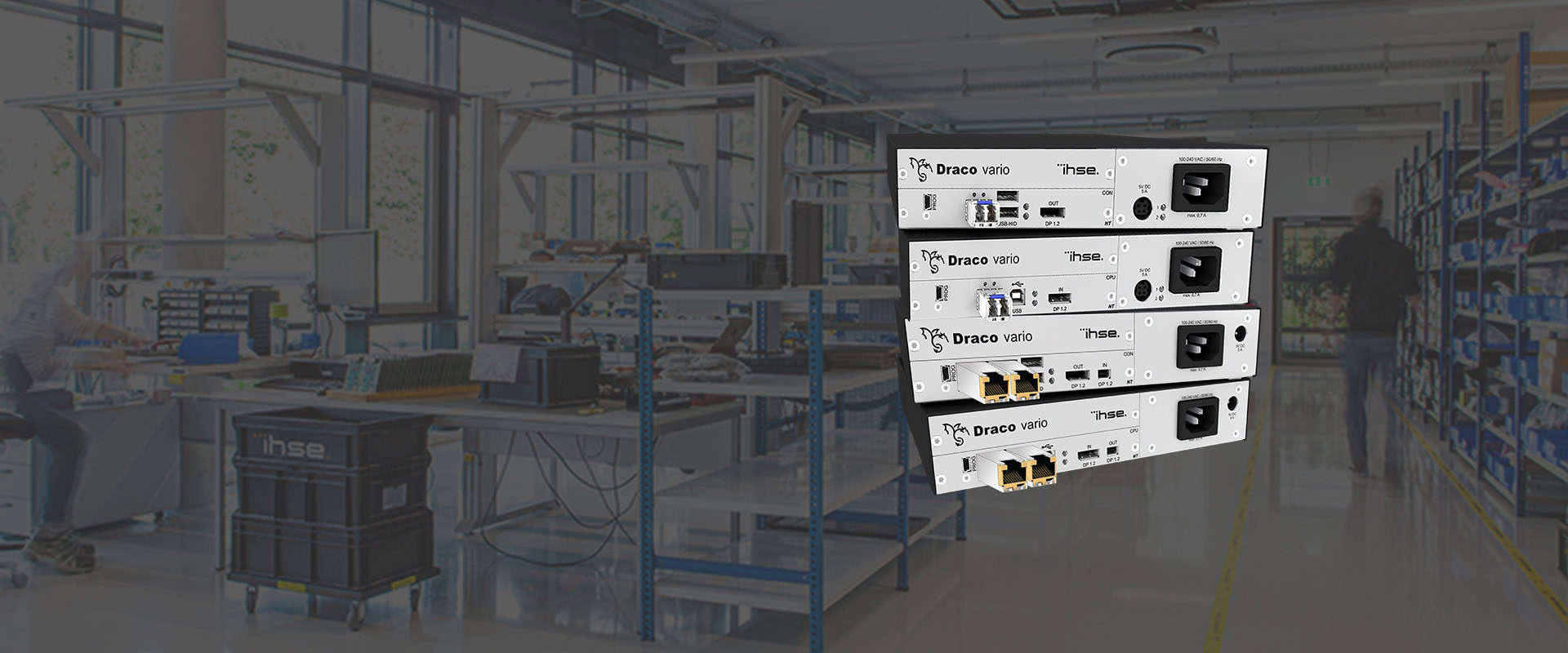

Draco vario XS DisplayPort 1.2

New extender series

KVM extender with JPEG XS video compressin

Draco vario XS DisplayPort 1.2 (Series 490)

The Draco vario XS DisplayPort 1.2 KVM extender is one of the first with integrated JPEG XS video codec. This sophisticated technology enables the transmission of fully-digital video signals with impressive resolutions of up to 5K/4K@60 via 1G network bandwith. The DisplayPort 1.2 extender
supports all established digital audio standards, so that the use of additional audio modules is not necessary. The sound is played directly via monitors with integrated loudspeakers. If required, additional modules for digital audio can also be easily integrated. In addition, the Draco vario XS extender is
fully compatible with all Draco tera KVM matrix switches which further increases its versatility and application possibilities.

Product Features

Draco vario XS DisplayPort 1.2 (Series 490)

Operation of CPUs from a remote workstation with a DisplayPort monitor and USB HID devices (keyboard, mouse)
Transmission of fully digital video signals up to 5K/4K@60
No frame drops, lossless video codec (visually), full color depth (10 bit per color, 4:4:4)
PCM audio format can be transferred via the DisplayPort interface (up to 96 kHz)
Transmission of monitor EDID information by hotkey; including permanent storage in CPU unit
Embedded mode for lower video resolutions allows instant switching via Draco tera
Optional: Redundant data link for 24/7 availability
Optional: Local DP1.2 switch access for connecting a mobile device at the CON side (e.g. notebook)
Optional: Local video access (feedthrough) at the CPU side
Compatible with
- Draco vario classic extenders, max. 1920 x 1200 @ 60Hz
- all major operating systems
- all Draco vario upgrade modules for audio and data signals such as USB 2.0, balanced audio or RS232

Draco vario XS DisplayPort 1.2 Inquiry

For personalized insights and dedicated support, explore our additional resources.

Specifications

Draco vario XS DisplayPort 1.2 (Series 490)

Input

DisplayPort 1.2

Output

DisplayPort 1.2

Resolution (max.)

1920 x 1080 @ 240 Hz 1920 x 1200 @ 60 Hz 2048 x 2048 @ 60 Hz 2560 x 2048 @ 60 Hz 3840 x 2160 @ 60 Hz (30 bit) - UHD 4096 x 2160 @ 60 Hz (30 bit) - 4K DCI 5120 x 1080 @ 60 Hz 5120 x 1440 @ 60 Hz 5120 x 2160 @ 50 Hz

Audio

Standards: Stereo Linear Pulse Code Modulation (LPCM) Bit depth: 16-24 bit Sample rate: 32 to 192 kHz

Maximum transmission range for video and USB-HID signals (end-toend connection)

Cat X: 140 m (459 ft) Single-Mode 9 μm 1G: 10,000 m(16,404 ft) Single-Mode 9 μm 3G: 10,000 m (16,404 ft)

Optional interfaces

USB 2.0 (High Speed or Full Speed), analog audio with RS232 or RS422, digital audio, PS/2, USB embedded, symmetrical audio

System Diagrams

Draco vario XS DisplayPort 1.2 (Series 490)

Downloads

Draco vario XS DisplayPort 1.2 (Series 490)

Draco vario XS DisplayPort 1.2 Data sheet

Download

Part-No.

Draco vario XS DisplayPort 1.2 (Series 490)

Draco vario XS DP 1.2 - CON Unit

R490-BPHC-XS

Draco vario XS CON unit, DP1.2, 4k60, 1x USB HID 1x CAT X SFP 1G

R490-BPHS-XS

Draco vario XS CON unit, DP1.2, 4k60, 1x USB HID 1x fiber 1G

R490-BPHX-XS

Draco vario XS CON unit, DP1.2, 4k60, 1x USB HID 1x fiber XV 3G

R490-BPHCL-XS

Draco vario XS CON unit, DP1.2, 4k60, 1x USB HID, video feed-through, 1x CAT X SFP 1G

R490-BPHSL-XS

Draco vario XS CON unit, DP1.2, 4k60, 1x USB HID, video feed-through, 1x fiber 1G

R490-BPHXL-XS

Draco vario XS CON unit, DP1.2, 4k60, 1x USB HID, video feed-through, 1x fiber XV 3G

R490-BPHCR-XS

Draco vario XS CON unit, DP1.2, 4k60, 1x USB HID 2x CAT X SFP 1G.

R490-BPHSR-XS

Draco vario XS CON unit, DP1.2, 4k60, 1x USB HID 2x fiber 1G, red.

R490-BPHXR-XS

Draco vario XS CON unit, DP1.2, 4k60, 1x USB HID 2x fiber XV 3G.

R490-BPHCLR-XS

Draco vario XS CON unit, DP1.2, 4k60, 1x USB HID, video feed-through, 2x CAT X SFP 1G, red.

R490-BPHSLR-XS

Draco vario XS CON unit, DP1.2, 4k60, 1x USB HID, video feed-through, 2x fiber 1G, red.

R490-BPHXLR-XS

Draco vario XS CON unit, DP1.2, 4k60, 1x USB HID, video feed-through, 2x fiber XV 3G, red.
Draco vario XS DP 1.2 - CPU Unit

L490-BPHC-XS

Draco vario XS CPU unit, DP1.2, 4k60, 1x USB HID 1x CAT X SFP 1G

L490-BPHS-XS

Draco vario XS CPU unit, DP1.2, 4k60, 1x USB HID 1x fiber 1G

L490-BPHX-XS

Draco vario XS CPU unit, DP1.2, 4k60, 1x USB HID 1x fiber XV 3G

L490-BPHCL-XS

Draco vario XS CPU unit, DP1.2, 4k60, 1x USB HID, video feed-through, 1x CAT X SFP 1G

L490-BPHSL-XS

Draco vario XS CPU unit, DP1.2, 4k60, 1x USB HID, video feed-through, 1x fiber 1G

L490-BPHXL-XS

Draco vario XS CPU unit, DP1.2, 4k60, 1x USB HID, video feed-through, 1x fiber XV 3G

L490-BPHCR-XS

Draco vario XS CPU unit, DP1.2, 4k60, 1x USB HID 2x CAT X SFP 1G, red.

L490-BPHSR-XS

Draco vario XS CPU unit, DP1.2, 4k60, 1x USB HID 2x fiber 1G, red.

L490-BPHXR-XS

Draco vario XS CPU unit, DP1.2, 4k60, 1x USB HID 2x fiber XV 3G, red.

L490-BPHCLR-XS

Draco vario XS CPU unit, DP1.2, 4k60, 1x USB HID, video feed-through, 2x CAT X SFP 1G, red.

L490-BPHSLR-XS

Draco vario XS CPU unit, DP1.2, 4k60, 1x USB HID, video feed-through, 2x fiber 1G, red.

L490-BPHXLR-XS

Draco vario XS CPU unit, DP1.2, 4k60, 1x USB HID, video feed-through, 2x fiber XV 3G, red.
