Draco vario DVI

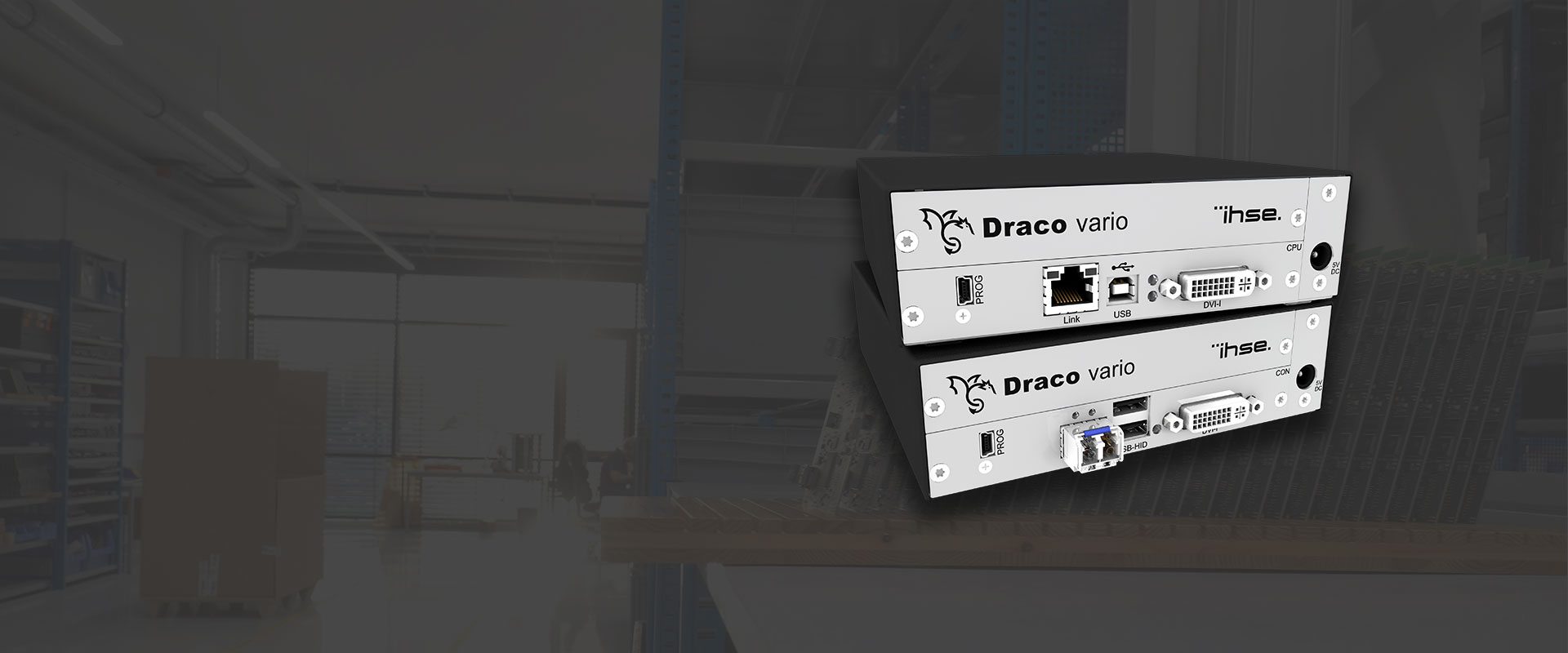

The Draco vario DVI extender gives users real-time access to DVI and VGA computers from a remote workstation, including monitor, keyboard, mouse and other peripheral devices.

Product Details

Specifications

Part Numbers

Downloads

System Diagram

Configurator

Long-distance DVI extension

Draco vario DVI (Series 474)

DVI and VGA extension

Draco vario DVI extenders enable long-distance extension of DVI computer video, together with USB-HID connection for keyboard, mouse and other compatible interface devices. Providing interconnection between user workstations and remote source computers. Connection between CPU Units (source) and CON Units (user workstation) is realized by single Cat X or fiber (single- or multi-mode), enabling connection at distances up to 140 m and 10 km.

Wide range of options

The Draco tera 474 series supports a wide range of input and output options to provide flexibility and extend the scope of integration. Including: redundant data transmission, USB2.0, RS232 and RS484, integral upscaling, analog and digital audio and more. All Draco vario modules are compatible with the Draco tera chassis series providing a wide range of installation options and customized system configuration capability.

XV eXtreme Velocity

For the highest possible image quality, Draco vario fiber XV versions handle extremely high quality video at 4K resolution and beyond.

Integration in Draco tera KVM matrix switch installations

Draco vario CPU and CON Units may be combined with Draco tera KVM matrix switches to create matrix switching systems of almost unlimited size and capability.

Product Features

Draco vario DVI (Series 474)

Superior image quality in all resolutions
Single- and Multi-Head devices are available (please note that the number of monitors per PC is limited by the number of slots)
DVI-I / VGA devices available
Wide range of additional options:
– Two USB ports for HID devices
– USB 2.0 embedded
– Serial interface (RS232 or RS422)
– Analog audio
– Digital audio

Redundant data link (optional)
19” rack mount kit (optional)
Power supply included
All devices with optional redundant power supply (load-sharing)
DVI-D fiber devices are available as XV models. Due to the increased data transmission rate, a loss-free image transmission is possible in virtually all cases

Specifications

Draco vario DVI (Series 474)

Input

DVI-D (DVI-I/VGA model available)

Output

DVI-D (DVI-I/VGA model available)

Serial RS232 / RS422

Up to 115,200 baud

Analog Audio

Bidirectional stereo audio connection, 24 bit, 38.4 kHz

Digital Audio

Compatible with AES/EBU, S/PDIF, Dolby Digital, DTS, PCM, 32-96 kHz

USB Data

USB-HID (for keyboard and mouse)
USB 2.0 embedded up to 50 Mbit/s
USB 2.0 hi-speed up to 480 Mbit/s

Maximum Resolution

1920 x 1200 @ 60 Hz

Color Depth

8 bit / True Color

Maximum transmission range for video and USB-HID signals (end-to-end connection)

Cat X: 140 m (459 ft)
Single-Mode 9μm: 10,000 m (32,808 ft)
Single-Mode 9μm XV: 5,000 m (16,404 ft)
Multi-Mode 50μm (OM3): 1,000 m (3,280 ft)
Multi-Mode 50μm: 400 m (1,312 ft)

Notice:
Transmission ranges for transparent USB when using add-on modules
When using L474/R474 add-on modules with transparent USB, the binding specifications stated in the data sheets of the add-on modules apply.

Part-No.

Draco vario DVI (Series 474)

All Variations

Image	Modell:	Description
	R474-BSHC	CON module, 1x Cat X, 1x monitor, single-link, 2x USB-HID
	R474-BSHCR	CON module, 2x Cat X (redundant), 1x monitor, single-link, 2x USB-HID
	R474-BVHC	CON module, 1x Cat X, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID
	R474-BVHCR	CON module, 2x Cat X (redundant), 1x DVI-I (VGA) monitor, single-link, 2x USB-HID

All Variations

Image	Modell:	Description
	R474-BSHS	CON module, 1x Fiber, 1x monitor, single-link, 2x USB-HID
	R474-BSHSR	CON module, 2x Fiber (redundant), 1x monitor, single-link, 2x USB-HID
	R474-BVHS	CON module, 1x Fiber, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID
	R474-BVHSR	CON module, 2x Fiber (redundant), 1x DVI-I (VGA) monitor, single-link, 2x USB-HID

All Variations

Image	Modell:	Description
	R474-BSHX	CON module, 1x Fiber XV, 1x monitor, single-link, 2x USB-HID

All Variations

Image	Modell:	Description
	L474-BSHC	CPU module, 1x Cat X, 1x monitor, single-link, 2x USB-HID
	L474-BSHCR	CPU module, 2x Cat X (redundant), 1x monitor, single-link, 2x USB-HID
	L474-BSHCV	CPU module, 1x Cat X, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID
	L474-BVHC	CPU module, 1x Cat X, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID
	L474-BVHCR	CPU module, 2x Cat X (redundant), 1x DVI-I (VGA) monitor, single-link, 2x USB-HID

All Variations

Image	Modell:	Description
	L474-BSHS	CPU module, 1x Fiber, 1x monitor, single-link, 2x USB-HID
	L474-BSHSR	CPU module, 2x Fiber (redundant), 1x monitor, single-link, 2x USB-HID
	L474-BSHSV	CPU module, 1x Fiber, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID
	L474-BVHS	CPU module, 1x Fiber, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID
	L474-BVHSR	CPU module, 2x Fiber (redundant), 1x DVI-I (VGA) monitor, single-link, 2x USB-HID

All Variations

Image	Modell:	Description
	L474-BSHX	CPU module, 1x Fiber XV, 1x monitor, single-link, 2x USB-HID
	L474-BSHXV	CPU module, 1x Fiber XV, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID
	L474-BVHX	CPU module, 1x Fiber XV, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID
