DRACO SIRA CPU

The Draco SIRA CPU enables the seamless integration of virtual machines into KVM systems.

Product Information

Draco SIRA CPU (Series 488)

Concept
The Draco SIRA CPU (Secure IP Remote Access) combines the functionality of a thin client and a KVM extender (transmitter). This space-saving solution is fully compatible with the Draco vario extender and the Draco enterprise and compact matrix switch series.

Function
The IP module provides seamless KVM connectivity to an IP infrastructure. It supports RDP, RemoteFX, SSH, VNC and HTML5 protocols (access via kiosk mode). Further remote protocols will be incorporated in future and can be made available on demand. A single Draco SIRA CPU can host up to 8 simultaneous sessions.

KVM meets VDI
Using diverse remote access protocols the SIRA CPU provides KVM access from the KVM system to virtual machines and webbased interfaces in the same manner as accessing real PCs.

Security
The Draco tera KVM matrix system enables the parallel operations of several Draco SIRA CPUs – even with different network connections. It isolates the networks from each other like a firewall and thus allows secure access to „private cloud“ and „public cloud“ systems from one workstation.

RDP and the benefits of KVM
The KVM infrastructure adds extensive flexibility to a RDP session. RDP sessions can now be shared amongst multiple users, delivering better collaboration and control room solutions.
Immediate access Immediate access to real PCs and virtual machines is achieved through permanent connection. Switching between the two types occurs instantaneously, with no disruption or inconvenience to the users.

Single Sign On
For ease of operation, the system can be configured to support SSO. Single stage user identification is all that is required, either locally or via AD. User credentials are stored for future connection setup.



The Draco vario Remote IP CPU is still available as a starter model with basic functionality.

Product Features

Draco SIRA CPU (Series 488)
  • Integration into IP infrastructure without compromising security
  • Link redundancy for fail-safe operation in mission critical applications
  • Homogeneous integration into traditional highperformance redundancy and compact design
  • Compatible with all Draco vario chassis allowing power redundancy and compact design
  • Improvement of usability and performances with IP infrastructure without compromising security
  • Single-Head operation with resolutions of up to 4K30
  • Dual-Head operation with resolutions of up to 1920×1200 @ 60 Hz
  • Gigabit LAN
  • USB embedded
  • Digital audio embedded

Specifications

Draco SIRA CPU (Series 488)
Link Interface
RJ-45 or LC Duplex (Single-Mode)
Input Interface
RJ-45 (TCP/IP)
Service
Mini-USB
Supported Protocols
RDP, RemoteFX, SSH, VNC (Client), VMware / Blast PCoIP, HTML5
Maximum Resolution
Single-Head operation: up to 4K30
Dual-Head operation: up to 1920x1200 @ 60 Hz
Keyboard / Mouse
USB-HID
Audio
2-channel PCM embedded
Additional Interfaces
USB 2.0 embedded
Maximum transmission range for video and USB-HID signals (end-to-end connection)
Cat X: 140 m (459 ft)
Single-Mode 9μm: 10,000 m (32,808 ft)
Single-Mode 9μm XV: 5,000 m (16,404 ft)
Multi-Mode 50μm (OM3): 1,000 m (3,280 ft)
Multi-Mode 50μm: 400 m (1,312 ft)
Power Supply
Power Supply via the used Draco vario chassis
Current Draw
Max. 3000 - 3500 mA per extender module (power input via the used Draco vario chassis)
Dimensions
129 x 40 x 145 mm
Weight
approx. 300 g
Chassis
Suitable Draco vario chassis and mounting accessories under the following link:
www.ihse.com/chassis-accessoires
Installation in ventilated chassis (chassis with backplane or additional fan 474-MODFAN)
Updates
Onboard Flash

Notice:
Transmission ranges for transparent USB when using add-on modules
When using L474/R474 add-on modules with transparent USB, the binding specifications stated in the data sheets of the add-on modules apply.

Part-No.

Draco SIRA CPU / Draco vario Remote IP CPU (Series 488)
Draco SIRA CPU

All Variations

ImageModell:Description

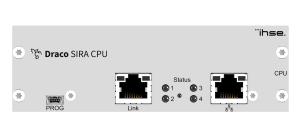

L488-BIPCDraco SIRA CPU, Cat X

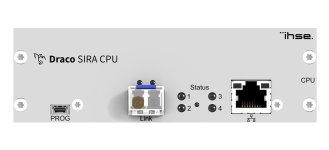

L488-BIPSDraco SIRA CPU, Single-Mode
L488-BIPCRDraco SIRA CPU, Cat X, red.

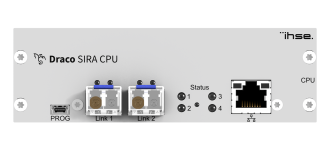

L488-BIPSRDraco SIRA CPU, Single-Mode, red.
Draco vario Remote IP CPU

All Variations

ImageModell:Description
L488-BIPECCPU module, 1x Cat X, Remote IP, 8x RDP/SSH/VNC

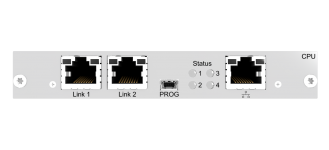

L488-BIPECRCPU module, 2x Cat X (redundant), Remote IP, 8x RDP/SSH/VNC
L488-BIPESCPU module, 1x Fiber, Remote IP, 8x RDP/SSH/VNC
L488-BIPESRCPU module, 2x Fiber (redundant), Remote IP, 8x RDP/SSH/VNC

Downloads

Draco SIRA CPU
Draco vario Remote IP CPU

System Diagram

Draco SIRA CPU (Series 488)
