DRACO VARIO ULTRA DP 1.2 / MST

The Draco vario ultra DisplayPort 1.2 extender gives users real-time access to DisplayPort computers from a remote workstation, including monitor, keyboard, mouse, loudspeakers and other peripheral devices. The integrated Fraunhofer IIS Lici® codec enables perfect quality transmission of DisplayPort video up to 5K60 resolution with 10 bit color depth and 4:4:4 color sampling.

Product Details

Specifications

Part Numbers

Downloads

System Diagram

Configurator

Fraunhofer IIS’ Lici® codec inside

Draco vario ultra DisplayPort 1.2 (Series 490)

Draco vario ultra DisplayPort 1.2 MST (Series 490)

The Draco vario ultra extender enables the operation of CPUs from a remotely located workstation including DisplayPort monitor, keyboard and pointing device over a single fiber connection or Cat X XV. Transfer of fully-digital video is supported in 5K resolutions up to 5120 x 1080/1440 @ 60 Hz and 5120 x 2160 @ 50 Hz and full color depth (10 bit, 4:4:4).

The KVM extender also supports audio transmission via the DisplayPort interface. Integration of optional Draco vario add-on modules for digital audio input and output as well as data signals, such as USB 2.0 and RS232 is also possible.

The Draco vario ultra Display Port 1.2 KVM Extender is now also available as a Draco vario ultra MST extender.

The new Draco ultra MST Extender supports the extension of two video streams over a single connection cable. Limitations in cabling infrastructure can be overcome, installation costs and valuable connections can be saved.

For detailed information, please refer to the data sheet.

Product Features

Draco vario ultra DisplayPort 1.2 (Series 490)

Operation of CPUs from a remote workstation with a DisplayPort monitor and USB-HID devices
Transmission of fully-digital video signals up to 5K (5120 x 1080/1440 @ 60 Hz and 5120 x 2160 @ 50 Hz)
New lossless video codec (visually), no frame drops, full color depth
PCM audio format can be transferred via the DisplayPort interface (up to 96 kHz)
Embedded mode for lower video resolutions allows instant switching via Draco tera
- Optional: Redundant data link for 24/7 availability
- Compatible* with all:
  – major operating systems
  – chassis of the Draco vario series
  – IHSE Draco KVM matrix switches with XV interfaces
  – other main modules of Draco vario ultra extenders (49x series)
  – Draco vario add-on modules for audio and data
  signals such as USB 2.0, balanced audio or RS232
*Video Transmission of the Draco vario ultra extenders (series 49x) is currently not compatible with the main modules of Draco vario Classic (series 47x/48x) and the Draco compact extenders (series 477)

Specifications

Draco vario ultra DisplayPort 1.2 (Series 490)

Input

DisplayPort 1.2

Output

DisplayPort 1.2

Maximum Resolution

5120 x 1080 @ 60 Hz
5120 x 1440 @ 60 Hz
5120 x 2160 @ 50 Hz

Color Depth

10 bit / Deep Color 4:4:4

Audio

Standards: Stereo Linear Pulse Code Modulation (LPCM)
Bit Depth: 16 – 24 bit
Sample Rate: 32 – 192 kHz

Maximum transmission range for video and USB-HID signals (end-to-end connection)

Cat X: 100 m / 140 m (328 / 459 ft)
Single-Mode 9μm XV: 5,000 m (16,404 ft)
Multi-Mode: upon request

Optional Interfaces

USB 2.0 embedded, analog audio with RS232 or RS422, digital audio, PS/2, balanced audio

Keyboard/Mouse

USB-HID

Notice:
Transmission ranges for transparent USB when using add-on modules
When using L474/R474 add-on modules with transparent USB, the binding specifications stated in the data sheets of the add-on modules apply.

Part-No.

Draco vario ultra DisplayPort 1.2 (Serie 490)

Draco vario ultra DisplayPort 1.2 MST (Serie 490)

All Variations

Image	Modell:	Description
	R490-BPHX	CON module, 1x Fiber XV, 1x DisplayPort 1.2 monitor, 4K60, 1x USB-HID
	R490-BPHXR	CON module, 2x Fiber XV, 1x DisplayPort 1.2 monitor, 4K60, 1x USB-HID

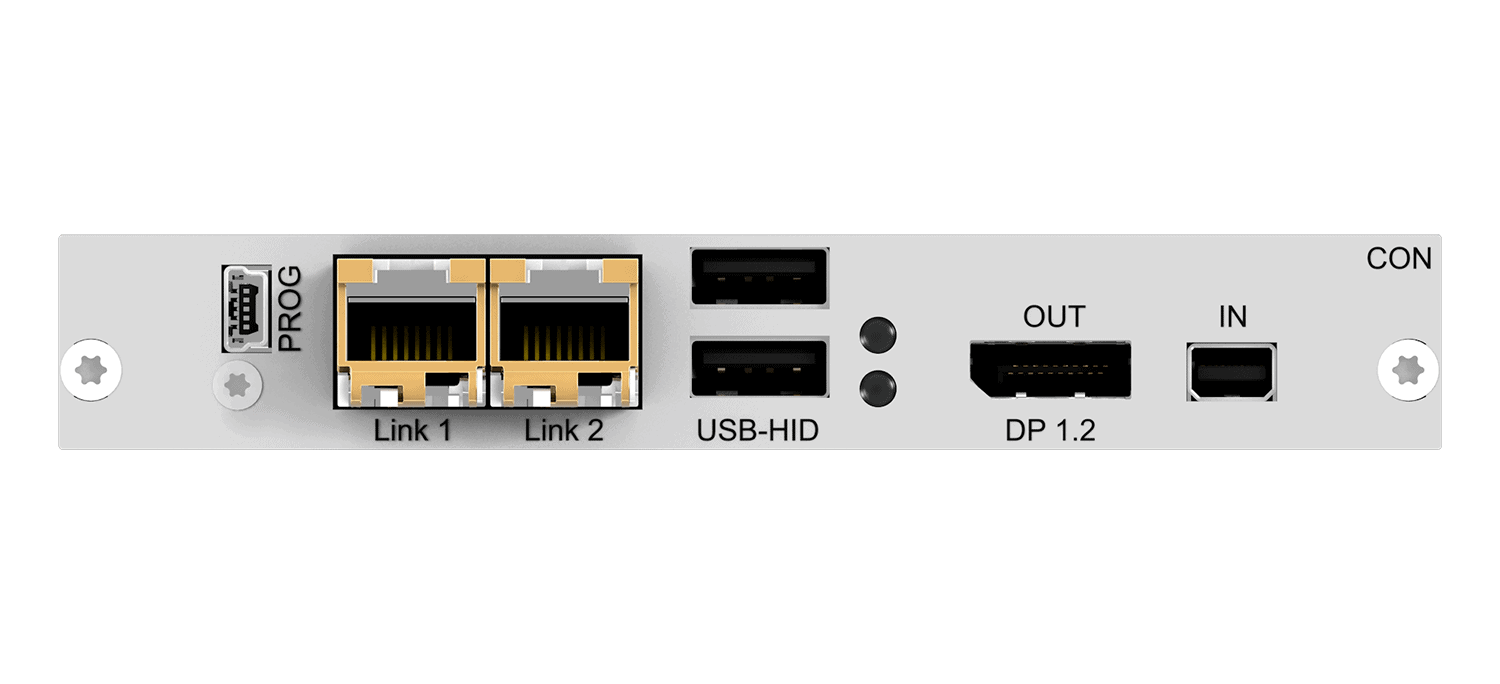

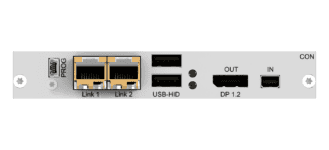

	R490-BPHCXLR	CON module, 2x Cat X (XV) (redundant), 1x DisplayPort 1.2 monitor, 4K60, 2x USB-HID, local input
	R490-BPHXL	CON module, 1x Fiber XV, 1x DisplayPort 1.2 monitor, 4K60, 2x USB-HID, local input
	R490-BPHXLR	CON module, 2x Fiber XV (redundant), 1x DisplayPort 1.2 monitor, 4K60, 2x USB-HID, local input

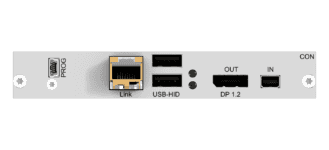

	R490-BPHCXL	CON module, 1x Cat X (XV), 1x DisplayPort 1.2 monitor, 4K60, 2x USB-HID, local input

All Variations

Image	Modell:	Description
	L490-BPHX	CPU module, 1x Fiber XV, 1x DisplayPort 1.2 monitor, 4K60, 1x USB-HID
	L490-BPHXR	CPU module, 2x Fiber XV, 1x DisplayPort 1.2 monitor, 4K60, 1x USB-HID
	L490-BPHCXL	CPU module, 1x Cat X (XV), 1x DisplayPort 1.2 monitor, 4K60, 2x USB-HID, local output

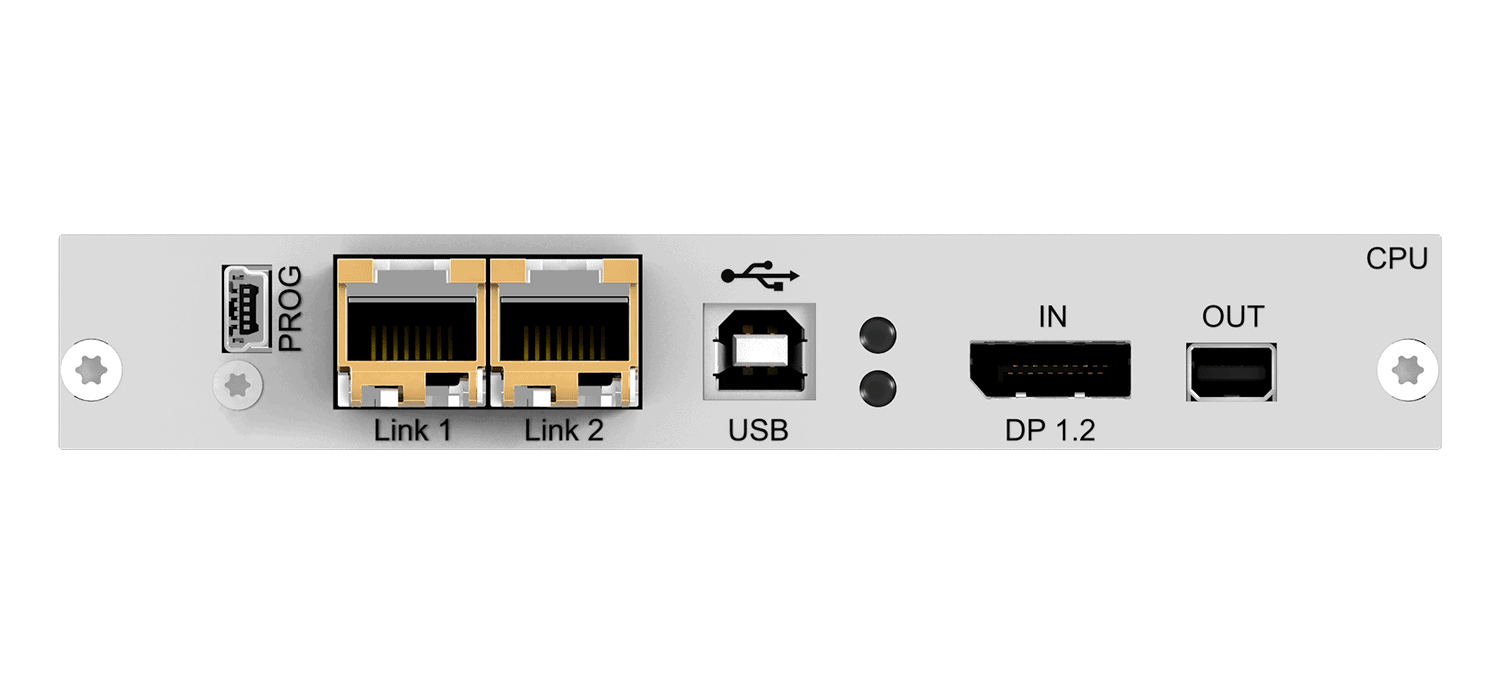

	L490-BPHCXLR	CPU module, 2x Cat X (XV) (redundant), 1x DisplayPort 1.2 monitor, 4K60, 2x USB-HID, local output
	L490-BPHXL	CPU module, 1x Fiber XV, 1x DisplayPort 1.2 monitor, 4K60, 2x USB-HID, local output
	L490-BPHXLR	CPU module, 2x Fiber XV (redundant), 1x DisplayPort 1.2 monitor, 4K60, 2x USB-HID, local output

All Variations

Image	Modell	Description
	R490-BPHX-M	Draco vario ultra DisplayPort 1.2 MST, CON module, fiber
	R490-BPHXR-M	Draco vario ultra DisplayPort 1.2 MST, CON module, fiber, redundant

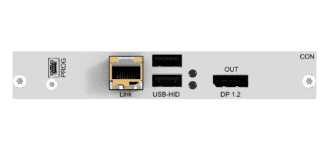

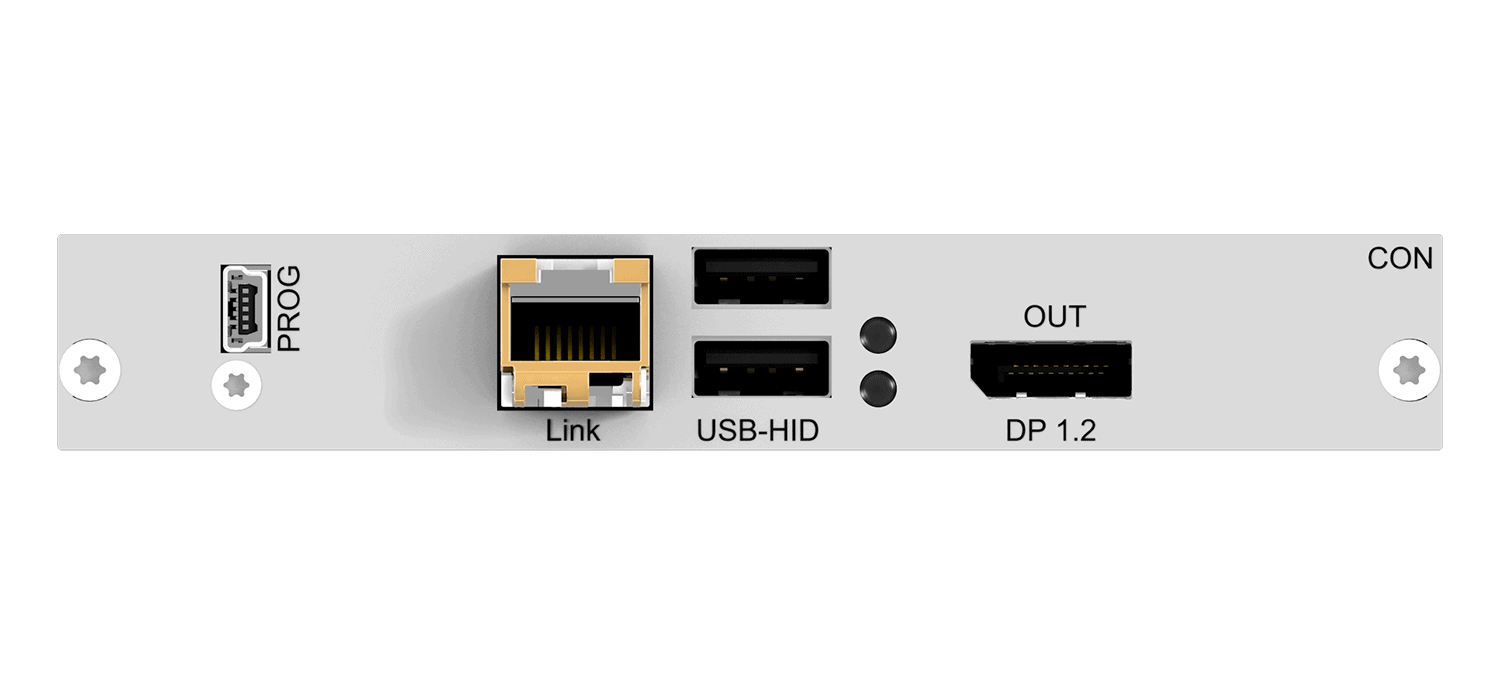

	R490-BPHCX-M	Draco vario ultra DisplayPort 1.2 MST, CON module, Cat X

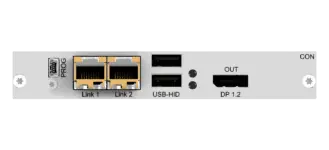

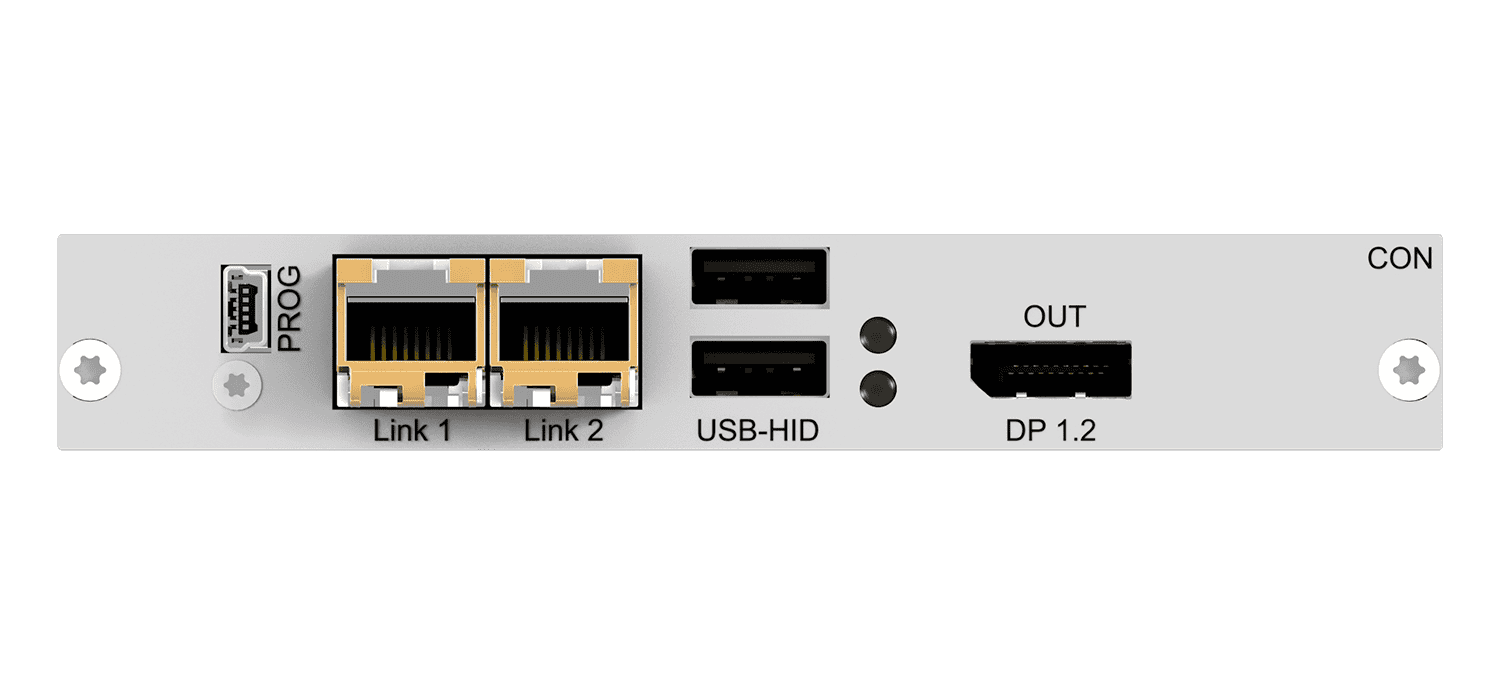

	R490-BPHCXR-M	Draco vario ultra DisplayPort 1.2 MST, CON module, Cat X, redundant

All Variations

Image	Modell	Description
	L490-BPHX-M	Draco vario ultra DisplayPort 1.2 MST, CPU module, fiber
	L490-BPHCXR-M	Draco vario ultra DisplayPort 1.2 MST, CPU module, Cat X, redundant

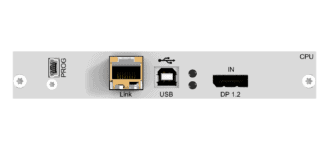

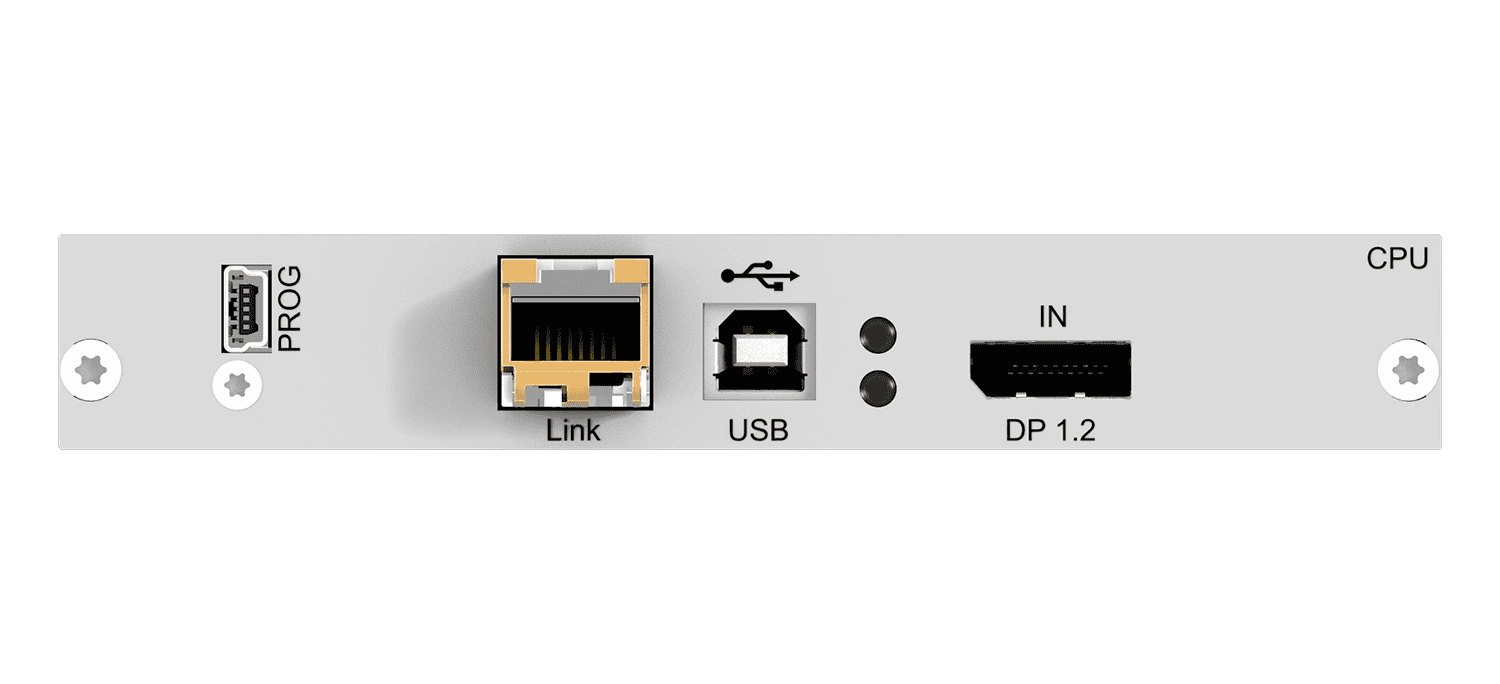

	L490-BPHCX-M	Draco vario ultra DisplayPort 1.2 MST, CPU module, Cat X
	L490-BPHXR-M	Draco vario ultra DisplayPort 1.2 MST, CPU module, fiber, redundant
