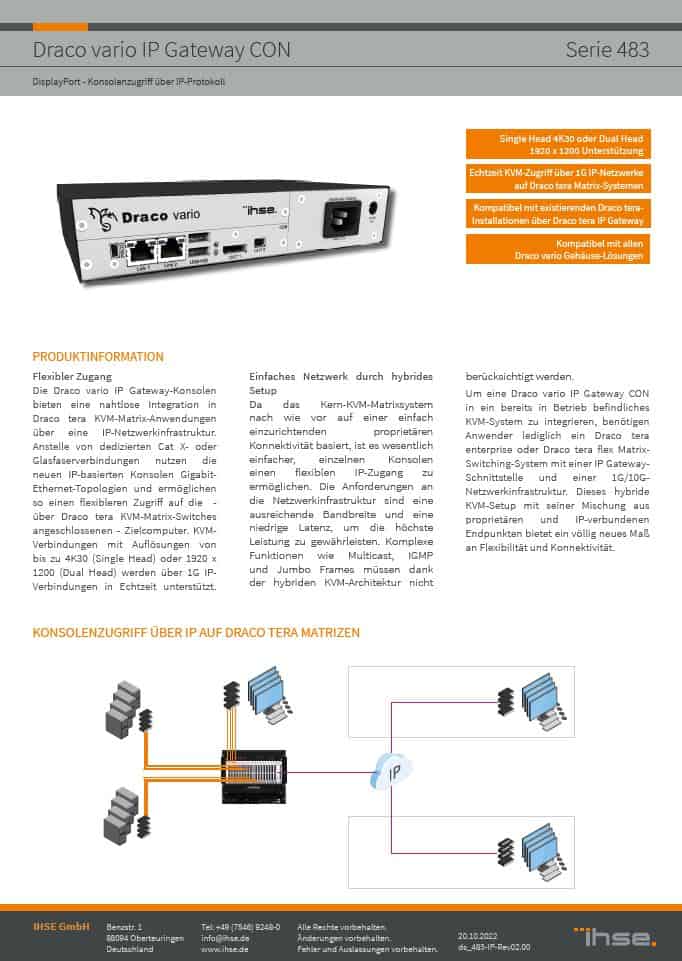

Draco vario IP Gateway CON (Series 481 & Series 483)

The Draco vario IP Gateway consoles provide seamless integration into Draco tera KVM matrix applications via IP network infrastructure. Instead of using dedicated Cat X or fi ber optic links, the
new IP based consoles make use of Gigabit Ethernet topologies, allowing for more flexibility accessing via Draco tera KVM matrix switches attached target computers. KVM connections with up to 4K30 resolutions single head or 1920 x 1200 dual head are supported across 1G IP connections in real-time.

Since the core KVM matrix system still is based on easy to setup proprietary connectivity, it is way easier to provide individual consoles flexible IP access. Requirements on the network infrastructure are a sufficient bandwidth and low latency for maintaining the highest performance. Complexity such as Multicast, IGMP, Jumbo Frames are not to worry about, thanks to the hybrid KVM architecture.

To integrate a Draco vario IP Gateway CON into an already operational KVM system, users only need a Draco tera enterprise or Draco tera flex matrix switching system with an IP Gateway interface and 1G/10G network infrastructure. This hybrid KVM setup with its mix of proprietary and IP connected endpoints offers completely new levels of fl exibility and connectivity.

Product Information

Product Information

Draco vario IP Gateway CON (Series 481 & Series 483)
  • Single Head 4K30
  • Realtime KVM Access via 1G IP networks
    to Draco tera matrix systems
  • Compatible to existing Draco tera installs via Draco tera IP Gateway
  • Local feed through port to attach a PC
  • Compatible with all Draco vario chassis solutions

Specifications

Draco vario IP Gateway CON (Series 481)
Input
HDMI up to 4K30
Output
HDMI up to 4K30
Audio (embedded)
Stereo Linear Pulse Code Modulation (LPCM), DTS, DTS-HD (5.1), Dolby Digital, Dolby Digital Plus (5.1)
Maximum Resolution
4K30/2K60
Keyboard/Mouse
USB-HID
Optional Interfaces
-
Maximum transmission range to network switch
Cat X: 140 m
Single Mode Fiber: 10 km
Power supply
Via the used Draco vario chassis*
Link Data Rate
1G
Chassis/Mounting Accessories
Suitable Draco vario chassis and mounting accessories under the following link: https://www.ihse.com/products/chassis-accessories/

* For detailed information refer to the user manual

Specifications

Draco vario IP Gateway CON (Series 483)
Output
Primary channel: 1x DisplayPort 1.1
Secondary channel: 1x Mini DisplayPort 1.1
Audio (embedded)
Stereo Linear Pulse Code Modulation (LPCM), DTS, DTS-HD (5.1), Dolby Digital, Dolby Digital Plus (5.1)
Service Interface
Mini-USB
Maximum resolution
Single-Head operation
(Primary channel)
Up to 4096 x 2160 @ 30 Hz – 4K DCI*

Dual-Head operation
(Primary and secondary channel)
Up to 1920 x 1200 @ 60 Hz*
Keyboard/Mouse
USB-HID
Optional Interfaces
-
Maximum transmission range to network switch
Cat X: 140 m
Single Mode Fiber: 10 km
Power supply
Via the used Draco vario chassis*
Current draw
Max. 1.990 mA per extender module
Power input via the used Draco vario chassis.
Chassis/Mounting Accessories
Suitable Draco vario chassis and mounting accessories under the following link: https://www.ihse.com/products/chassis-accessories/

* For detailed information refer to the user manual

Part-No.

Part-No.

Draco vario IP Gateway CON (Series 481 & Series 483)

All Variations

ImageModell:Description
R481-BHHCCON Modul, 1x Cat X, 1x HDMI Monitor, Single-Link, 2x USB-HID
R481-BHHCRCON Modul, 2x Cat X (redundant), 1x HDMI Monitor, Single-Link, 2x USB-HID
R481-BHHCWCON Modul, 1x Cat X, 1x HDMI Monitor, Single-Link, 2x USB-HID, lokaler KVM-Switch
R481-BHHCWRCON Modul, 2x Cat X (redundant), 1x HDMI Monitor, Single-Link, 2x USB-HID, lokaler KVM-Switch
R481-BHXCCON Modul, 1x Cat X, 1x HDMI Monitor, Single-Link
R481-BUHCLCON Modul, 1x Cat X, HDMI 4K30
R481-BUHCLRCON Modul, 2x Cat X (redundant), HDMI 4K30

All Variations

ImageModell:Description
R481-BHHSCON Modul, 1x Glasfaser, 1x HDMI Monitor, Single Link, 2x USB-HID
R481-BHHSRCON Modul, 2x Glasfaser (redundant), 1x HDMI Monitor, Single Link, 2x USB-HID
R481-BHHSWCON Modul, 1x Glasfaser, 1x HDMI Monitor, Single Link, 2x USB-HID, lokaler KVM-Switch
R481-BHHSWRCON Modul, 2x Glasfaser (redundant), 1x HDMI Monitor, Single Link, 2x USB-HID, lokaler KVM-Switch
R481-BHXSCON Modul, 1x Glasfaser, 1x HDMI Monitor, Single Link
R481-BUHSLCON Modul, 1x Glasfaser, 1x HDMI Monitor 4K30
R481-BUHSLRCON Modul, 2x Glasfaser, 1x HDMI Monitor 4K30, redundant

All Variations

ImageModell:Description
L481-BHHCCPU Modul, 1x Cat X, 1x HDMI Monitor, Single Link, 2x USB-HID
L481-BHHCLCPU Modul, 1x Cat X, 1x HDMI Monitor, Single-Link, 2x USB-HID, lokaler Ausgang
L481-BHHCLRCPU Modul, 2x Cat X (redundant), 1x HDMI Monitor, Single-Link, 2x USB-HID, lokaler Ausgang
L481-BHHCRCPU Modul, 2x Cat X (redundant), 1x HDMI Monitor, Single-Link, 2x USB-HID
L481-BHXCCPU Modul, 1x Cat X, 1x HDMI Monitor, Single-Link
L481-BUHCLCPU Modul, 1x Cat X, 1x HDMI Monitor 4K30
L481-BUHCLRCPU Modul, 2x Cat X, 1x HDMI Monitor 4K30, redundant

All Variations

ImageModell:Description
L481-BHHSCPU Modul, 1x Glasfaser, 1x HDMI Monitor, Single-Link, 2x USB-HID
L481-BHHSLCPU Modul, 1x Glasfaser, 1x HDMI Monitor, Single-Link, 2 x HID, lokaler Ausgang
L481-BHHSLRCPU Modul, 2x Glasfaser (redundant), 1x HDMI Monitor, Single-Link, 2x USB-HID, lokaler Ausgang
L481-BHHSRCPU Modul, 2x Glasfaser (redundant), 1x HDMI Monitor, Single-Link, 2x USB-HID
L481-BHXSCPU Modul, 1x Glasfaser, 1x HDMI Monitor, Single-Link
L481-BUHSLCPU Modul, 1x Glasfaser, 1x HDMI Monitor 4K30
L481-BUHSLRCPU Modul, 2x Glasfaser, 1x HDMI Monitor 4K30, redundant

IP-R481-BUHCL

CON module, HDMI 4K30, Cat X 1G

IP-R481-BUHCLR

CON module, HDMI 4K30, Cat X 1G, redundant

IP-R481-BUHSL

CON module, HDMI 4K30, Fiber LC SM 1G

IP-R481-BUHSLR

CON module, HDMI 4K30, Fiber LC SM 1G, redundant

IP-R483-B2HC

CON Modul DP1.1, DH, 4K30 o. 2x 1080 p, USB HID, Cat X 1G

IP-R483-B2HCR

CON Modul DP1.1, DH, 4K30 o. 2x 1080 p, USB HID, Cat X 1G, redundant

 IP-R483-B2HS

CON Modul DP1.1, DH, 4K30 o. 2x 1080 p, USB HID, Fiber LC SM 1G

IP-R483-B2HSR

CON Modul DP1.1, DH, 4K30 o. 2x 1080 p, USB HID, Fiber LC SM 1G, redundant

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio
