Draco vario KVMA Isolated Secure Extender

The Draco vario KVMA Isolated Secure Extenders are CC EAL4+ certified and conform to NIAP PP 4.0, meeting mandatory requirements for security-related applications worldwide.

EAL4+ certified, conforming to NIAP PP4.0

DVI-Verlängerung über große Entfernungen

Draco vario KVMA Isolated Secure Extender
(Series 487 & 497)

When it is key to protect your intellectual property or homeland security while still allowing the most flexible access to IT assets, use the Draco vario KVMA Isolated Secure Extender to extend keyboard, video, mouse and audio signals without any loss of quality up to 10 km. Pictures are displayed without delay, brilliantly clear and in highest resolutions, including full HD and 2K. Even 3D formats can be transmitted fast and without difficulty.

Experience excellent sound data with finest details by digital audio transmission via DP/HDMI or the analog interface. Take advantage of link and power redundancy for most failsafe interconnections via single-mode or multi-mode fiber. Both, CPU and CON devices are equipped with signal isolation with NIAP PSD PP 4.0.

In combination with Draco tera matrix switches and Draco vario extenders, a secure setup with classified and unclassified enpoints can be achieved. With isolation being guaranteed at both ends, the risk of data leakage or eaves dropping is eliminated even in environments with a cross-over of secured and unsecured devices which may be used for commercial reasons.

Product Features

Produkt-eigenschaften

Draco vario KVMA Isolated Secure Extender
(Series 487 & 497)
  • CC EAL4+ certified
  • Conforming to NIAP PP4.0
  • Draco vario series 487 in 474-BODY2N chassis (Kit)
  • DP/HDMI combo port
  • High resolution video can be transmitted via DP/HDMI interface
  • The interface is compatible with 3D technology: Side-by-Side and Top-and-Bottom formats can be transmitted
  • Allows operation of a CPU from a remote workstation with an DP/HDMI monitor and two USB-HID devices
    (such as a keyboard and pointing devices) and audio speakers
  • Compatible with all major operating systems
  • Compatible with all IHSE Draco KVM switches as well as Draco vario and Draco compact extenders
  • DP/HDMI embedded audio is cross-compatible with digital audio add-on modules
  • Redundant data link
  • Pair with Draco vario non-PP4 extenders when used in secure facilities
  • Support for Draco tera matrix switches 8-576 ports
  • Anti-tampering

Specifications

Draco vario KVMA Isolated Secure Extender
(Series 487 & 497)
Input
DP/HDMI
Output
DP/HDMI
Audio (embedded)
2-channel PCM embedded digital audio and analog audio
Maximum resolution
Series 487:
1920 x 1200 @ 60 Hz, Full HD (1080 p) or
2K HD (up to 2048 x 1152)
Series 497:
up to 4K30*
Keyboard/mouse
USB HID
Certifications
CE, FCC, TUV, VCCI, CC EAL4+, conforming to NIAP PSD PP 4.0
Maximum cable distance
Cat X: 140 m (459 ft)
Single-Mode 9μm: 10.000 m (32.808 ft)
Single-Mode 9μm XV: 5.000 m (16.404 ft)
Multi-Mode 50μm (OM3): 1.000 m (3.280 ft)
Multi-Mode 50μm: 400 m (1.312 ft)
Power supply
International power supply unit (90 - 240 V Input)
Current draw
2500 m A @ 5 V

* Subject to change without prior notice.

Part-No.

Artikel-nummern

Draco vario KVMA Isolated Secure Extender
(Series 487)

All Variations

ImageModellDescription
K487-1PHCA-NDraco vario 2N KVMA Isolated Secure Extender Kit (CPU and CON), Cat X
K487-1PHCRA-NDraco vario 2N KVMA Isolated Secure Extender Kit (CPU and CON), Cat X, redundant

All Variations

ImageModellDescription
K487-1PHSA-NDraco vario 2N KVMA Isolated Secure Extender Kit (CPU and CON), Fiber
K487-1PHSRA-NDraco vario 2N KVMA Isolated Secure Extender Kit (CPU and CON), Fiber, redundant

Part-No.

Artikel-nummern

Draco vario KVMA Isolated Secure Extender
(Series 497)

All Variations

ImageModellDescription
K497-1PHCA-NDraco vario 2N KVMA Isolated Secure Extender Kit (CPU and CON), Cat X
K497-1PHCRA-NDraco vario 2N KVMA Isolated Secure Extender Kit (CPU and CON), Cat X, redundant

All Variations

ImageModellDescription
K497-1PHSA-NDraco vario 2N KVMA Isolated Secure Extender Kit (CPU and CON), Fiber
K497-1PHSRA-NDraco vario 2N KVMA Isolated Secure Extender Kit (CPU and CON), Fiber, redundant

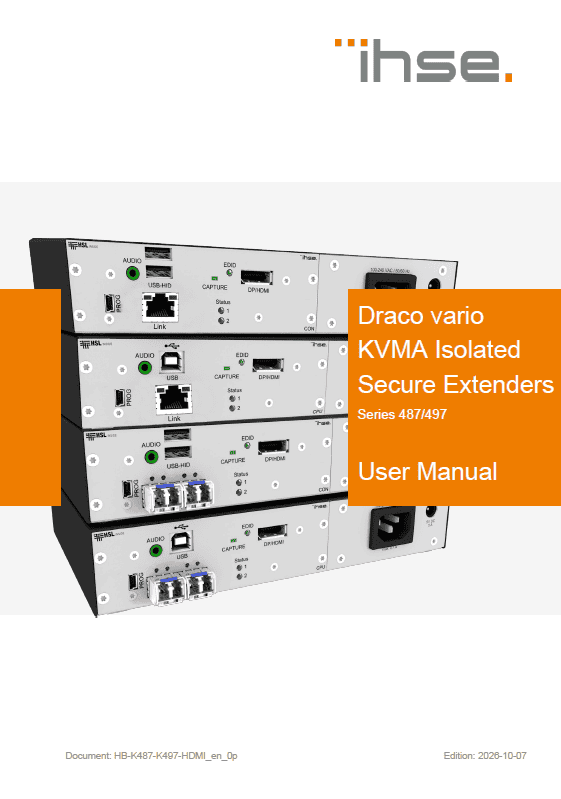

Downloads

Draco vario KVMA Isolated Secure Extender
(Series 487 & 497)
Draco vario DVI Bracket

Related links

Weiter- führende Links

System Diagram

Funktions-darstellung

Draco vario KVMA Isolated Secure Extender
(Series 487 & 497)

Do you need further information?
