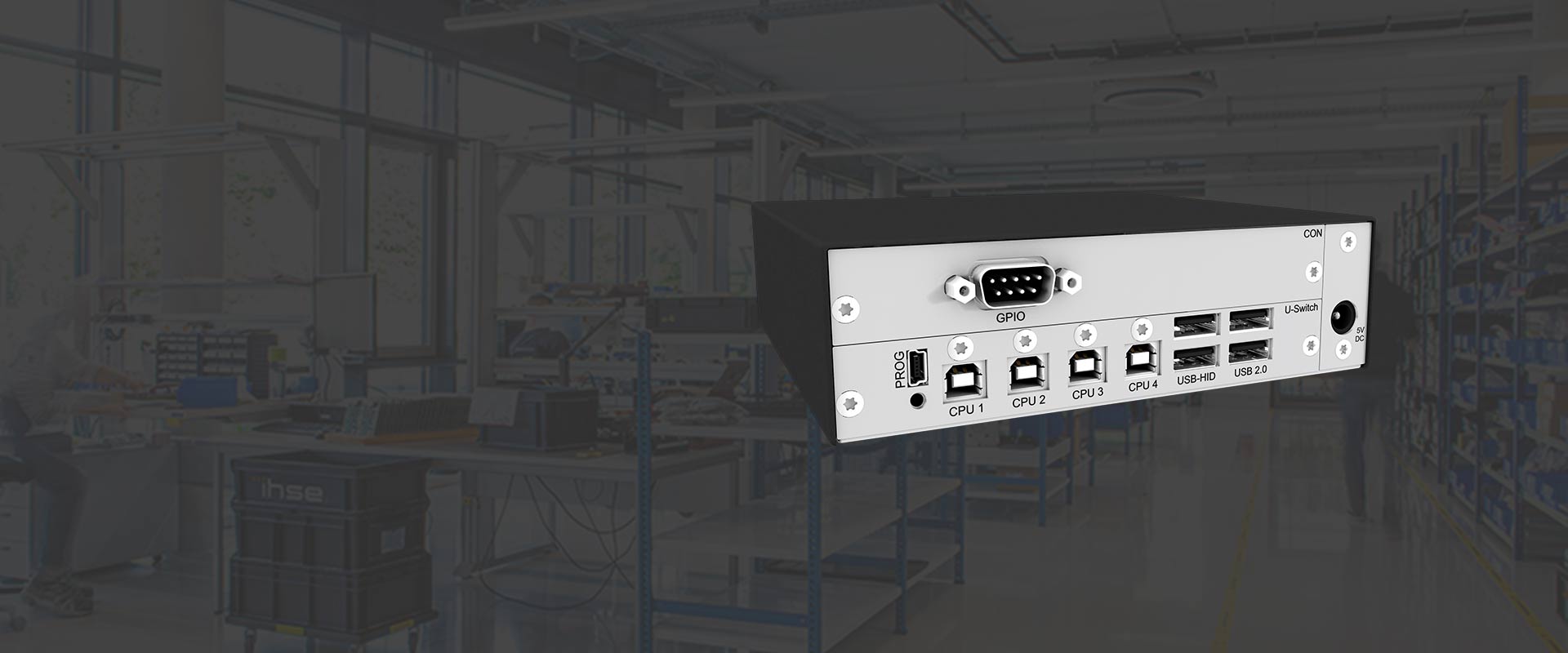

DRACO U-SWITCH Module

When it is necessary to operate several computers with multiple displays via a single keyboard and mouse, the Draco U-Switch module is the ideal solution. Users easily switch between sources by keyboard hotkeys, optional push buttons or smoothly by mouse movements between the different screens.

Product Details

Specifications

Part Numbers

Downloads

System Diagram

USB Switch for multi-monitor applications

Draco U-Switch (Series 476)

When it is necessary to operate several computers with multiple displays via a single keyboard and mouse, the Draco U-Switch is the ideal solution. A userfriendly interface makes it quick and easy to manage multiple CPU data from a single workstation.

The Draco U-Switch is perfect for computer workstations normally found in banking, surveillance and command & control environments where multiple displays connected to different CPUs
must be managed simultaneously.

By integrating the Draco U-Switch in the KVM environment users can perform fast and accurate mouse selections across multiple screens without the need to manually change keyboard and mouse connections. It now becomes a seamless and smooth operation to move a mouse across adjacent screen boundaries. Alternatively, changing the mouse and keyboard to another screen can be achieved using simple hotkey commands.

The Draco U-Switch can be combined with the Draco tera enterprise, flex and compact matrix switches to enhance the flexibility of multiple CPU management from a single multi-screen workstation.

The Draco U-Switch saves valuable workspace, increases productivity, and gives the user realtime switching with seamless mouse movement across multiple displays.

Security
The Draco U-Switch supports both USB-HID and USB 2.0 transparent peripherals. For USB-HID – only connectivity, the transparent USB 2.0 can be disabled to avoid unwanted data transmission.

Product Features

Draco U-Switch (Series 476)

Instant Switching for fast, delay-free switching
Switching via keyboard or optional push bottons
Supports MSC 2.0: Multi-Screen Control (switching via mouse movement)
Compatible with all Draco products and chassis
Compatible with all USB-HID devices
Supports USB-HID (keyboard & mouse)
USB 2.0 (can be switched off per port)
Space-saving design
GPIO functionality as an option

Specifications

Draco U-Switch (Series 476)

Input

4x USB Type B

Output

4x USB Type A (2x HID, 2x USB 2.0)

Service

1x Mini USB

Keyboard / Mouse

USB-HID

Optional add-on modules

Suitable add-on modules under the following link: www.ihse.com/add-on-modules

Power consumption

1580 mA

Power supply

Power supply via the used Draco vario chassis

Dimensions

129 x 20 x 142 mm

Weight

Approx. 120 g

Chassis / mounting accessories

Suitable Draco vario chassis and mounting accessories under the following link:
www.ihse.com/chassis-accessoires

Upgradable

Yes

Part-No.

Draco U-Switch (Series 476)

All Variations

Image	Modell:	Description
	B476-4U4T	Draco U-Switch Module (for mounting in Draco vario chassis), 4 port USB-Switch (2 USB-HID and 2 USB 2.0 devices supported)
	K476-4U4T	Draco U-Switch, 4 port USB-Switch (2 USB-HID and 2 USB 2.0 devices supported) with USB 2.0 switching on the upper board
	K476-8U	Draco U-Switch, 8 port USB-Switch (2 USB-HID devices supported)
	K476-4U2	Draco U-Switch, 4 port USB-Switch (4 USB-HID devices supported)
	K476-4U	Draco U-Switch, 4 port USB-Switch (2 USB-HID devices supported)

All Variations

Image	Modell:	Description
	476-CTRL4	Switch unit for switching of 4 port U-Switch devices via push button, 4x LEDs
	476-CTRL8	Switch unit for switching of 8 port U-Switch devices via push button, 8x LEDs
	474-BRACKET	Mounting bracket for 2/4/6 bay chassis (L-brackets with screw slots)
	474-VRMK	19”/1 RU rack mount kit for 2 and 4 bay chassis
