DRAco compact

The Draco compact offers a cost-effective method of delay-free extension and switching of keyboard, video and mouse signals in brilliant image quality.

Space-saving chassis

Draco compact (Series 477)

Draco compact extenders are housed in compact units. The small and space-saving chassis of the Draco compact are available in six standard versions, allowing the extension of high-res DVI signals as well as USB 2.0, USB-HID, VGA, analog and digital audio. Due to its compact size, the Draco compact can be located in small spaces. All connectors are on the same face for ease of installation, making it ideal for many demanding applications.

The Draco compact is ideally suited for smaller applications that do not need the full flexibility and modularity of the Draco vario system. The compact size allows unobtrusive location of devices in the workplace, e.g. mounting under the user’s desk. The versatile Draco compact KVM extender series is ideal for industrial and financial applications, education facilities and for maritime, air traffic control and other mission-critical installations that require maximum reliability and security.

Product Features

Draco compact (Series 477)
  • Excellent image quality in all resolutions
  • Single- and Dual-Head device models available
  • Wide range of additional options:
    – Two USB ports for HID devices
    – USB 2.0 embedded
    – Serial interface (RS232)
    – Analog audio
    – Digital audio
  • All connections on one side for an easy installation
  • Simple keyboard commands (hot keys) for transmission of remotely connected monitors’ EDID information.
  • 19” rack mount kit available – up to four units fit in one RU
  • External power supply or optional tray mounted power supply for one RU frame
  • DVI-D fiber devices are available as XV models for premium image transmission in all cases
  • VESA mounting plate (optional)
  • Ideal for space-saving installation at operator desk

Specifications

Draco compact (Series 477)
Power Supply (Internal)
90-240VAC / 1 A / 50-60 Hz, 5VDC
Serial RS232
up to 115,200 baud
Analog Audio
Bidirectional stereo audio connections, 38.4 kHz
Digital Audio
Compatible with AES/EBU, S/PDIF, Dolby Digital, DTS, PCM, 32-96 kHz
Maximum Resolution
1920 x 1200 @ 60 Hz
Color Depth
8 bit / True Color
Maximum transmission range for video and USB-HID signals (end-to-end connection)
Cat X: 140 m (459 ft)
Single-Mode 9μm: 10,000 m (32,808 ft)
Single-Mode 9μm XV: 5,000 m (16,404 ft)
Multi-Mode 50μm (OM3): 1,000 m (3,280 ft)
Multi-Mode 50μm: 400 m (1,312 ft)
Dimensions – 1 board
103 x 143 x 29 mm
(4.06 x 5.63 x 1.14 inch)
Dimensions – 2 boards
103 x 14.3 x 42 mm
(4.06 x 5.63 x 1.65 inch)

Part-No.

Draco compact (Series 477)

All Variations

ImageModell:Description
R477-1S4CACON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio
R477-1SECACON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 2x USB-HID, USB 2.0 embedded, Analog-Audio
R477-1SHCCON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 2x USB-HID
R477-1SUCCON Modul, 2x Cat X, 1x DVI-D Monitor, Single-Link, 2x USB-HID, 4x USB 2.0
R477-2S4CCON Modul, 2x Cat X, 2x DVI-D Monitore, Single-Link, 4x USB-HID

All Variations

ImageModell:Description
R477-1S4SACON Modul, 1x Glasfaser, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

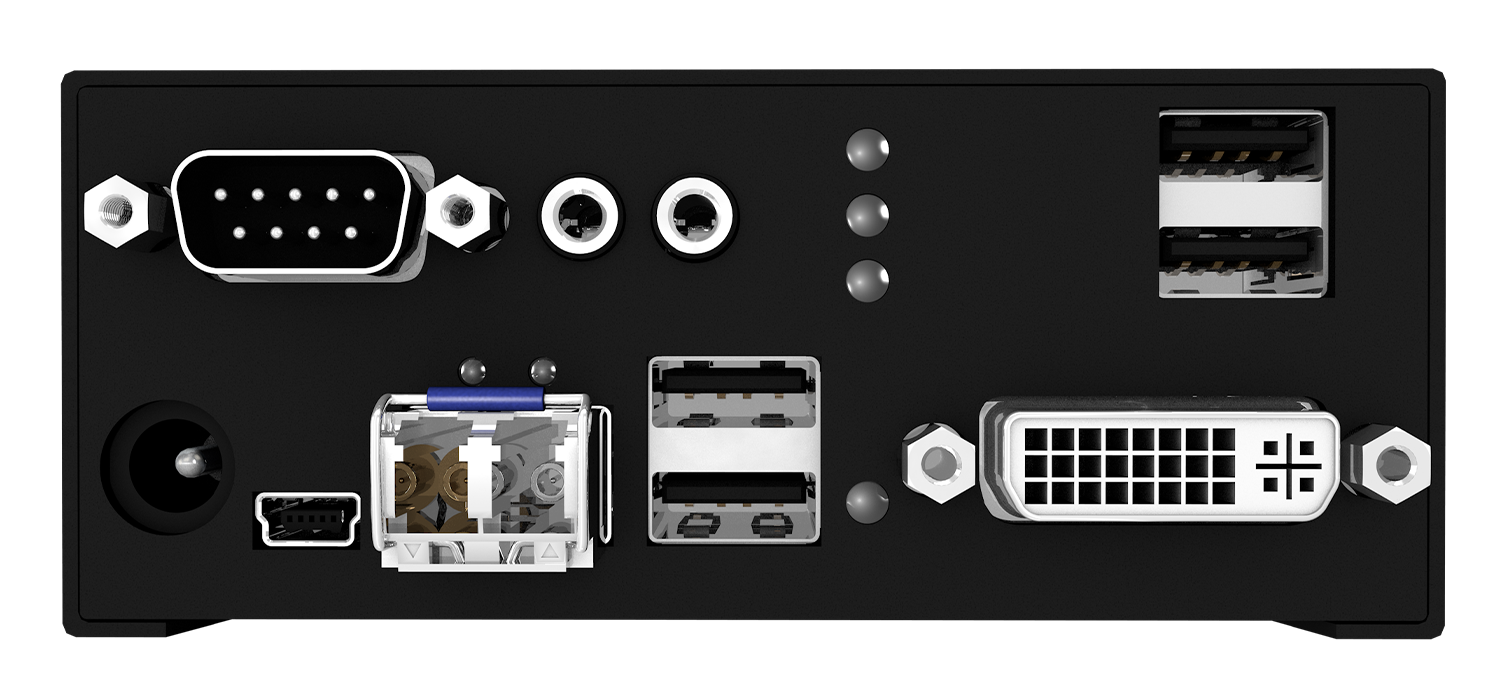

R477-1SESACON Modul, 1x Glasfaser, 1x DVI-D monitor, single-link, 2x USB-HID, USB 2.0 embedded, analog audio
R477-1SHSCON module, 1x Fiber, 1x DVI-D monitor, single-link, 2x USB-HID
R477-1SUSCON module, 2x Fiber, 1x DVI-D monitor, single-link, 2x USB-HID, 4x USB 2.0
R477-2S4SCON module, 2x Fiber, 2x DVI-D monitors, single-link, 4x USB-HID

All Variations

ImageModell:Description
R477-1S4XACON module, 1x Fiber XV, 1x DVI-D monitor, single-link, 4x USB-HID, analog audio
R477-1SEXACON module, 1x Fiber XV, 1x DVI-D monitor, single-link, 2x USB-HID, USB 2.0 embedded, analog audio
R477-1SHXCON module, 1x Fiber XV, 1x DVI-D monitor, single-link, 2x USB-HID
R477-1SUXR477-1SUX
R477-2S4XCON module, 2x Fiber XV, 2x DVI-D monitors, single-link, 4x USB-HID

All Variations

ImageModell:Description
L477-1S4CACPU module, 1x Cat X, 1x DVI-D monitor, single-link, 4x USB-HID, analog audio
L477-1SECACPU module, 1x Cat X, 1x DVI-D monitor, single-link, 2x USB-HID, USB 2.0 embedded, analog audio
L477-1SHCCPU module, 1x Cat X, 1x DVI-D monitor, single-link, 2x USB-HID

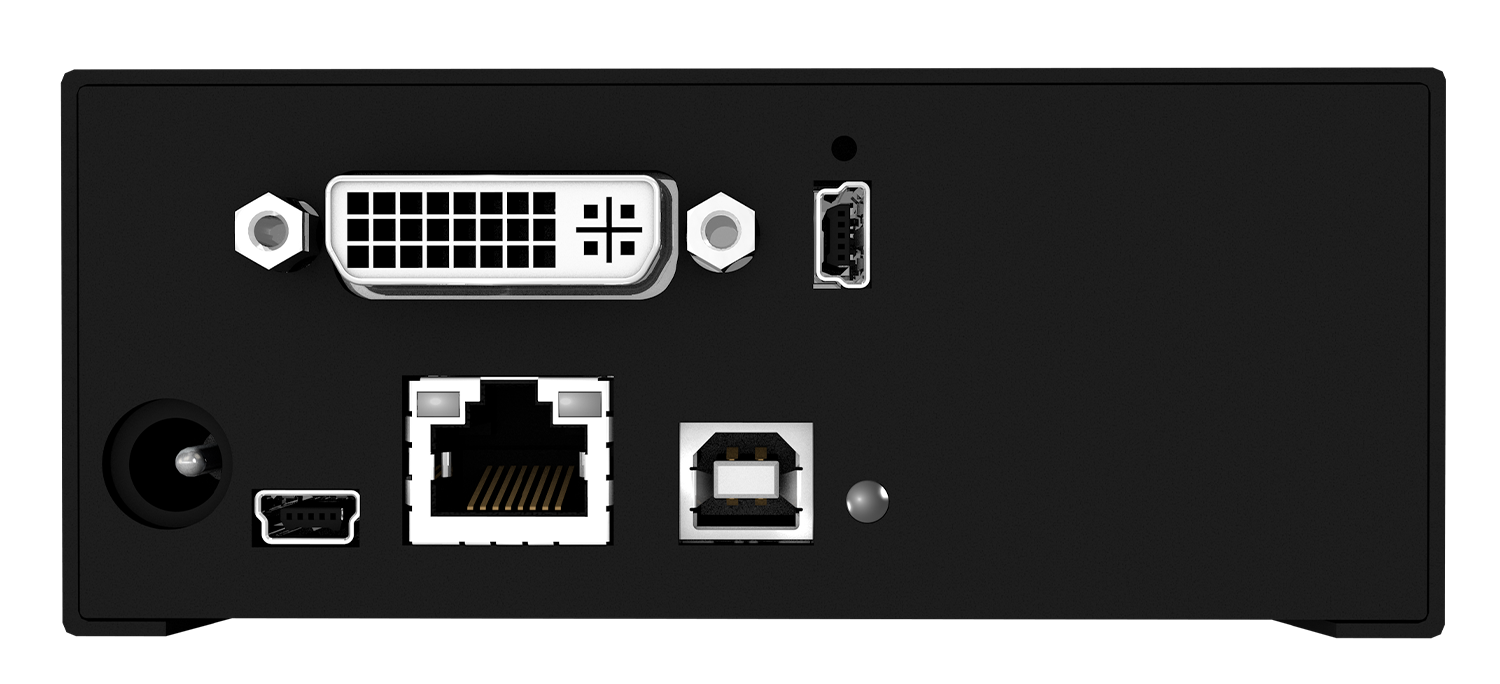

L477-1SHCVCPU module, 1x Cat X, 1x DVI-D monitor, single-link, 2x USB-HID, DVI-I (VGA) input
L477-1SUCCPU module, 2x Cat X, 1x DVI-D monitor, single-link, USB-HID, USB 2.0
L477-2S4CCPU module, 2x Cat X, 2x DVI-D monitors, single-link, 4x USB-HID

All Variations

ImageModell:Description
L477-1S4SACPU module, 1x Fiber, 1x DVI-D monitor, single-link, 4x USB-HID, analog audio
L477-1SESACPU module, 1x Fiber, 1x DVI-D monitor, single-link, 2x USB-HID, USB 2.0 embedded, analog audio
L477-1SHSCPU module, 1x Fiber, 1x DVI-D monitor, single-link, 2x USB-HID
L477-1SHSVCPU module, 1x Fiber, 1x DVI-D monitor, single-link, 2x USB-HID, DVI-I (VGA) input
L477-1SUSCPU module, 2x Fiber, 1x DVI-D monitor, single-link, USB-HID, USB 2.0

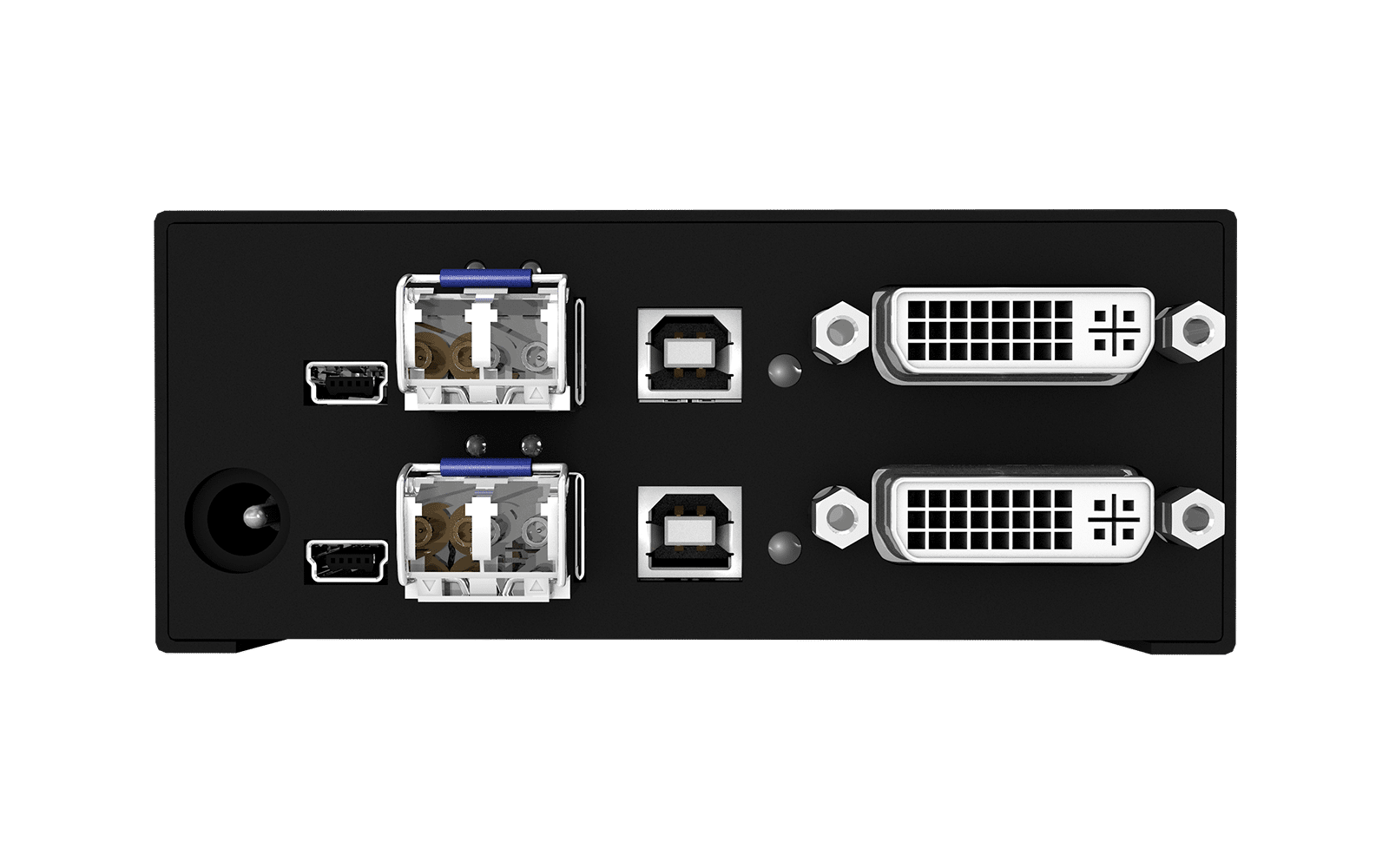

L477-2S4SCPU module, 2x Fiber, 2x DVI-D monitors, single-link, 4x USB-HID

All Variations

ImageModell:Description
L477-1S4XACPU module, 1x Fiber XV, 1x DVI-D monitor, single-link, 4x USB-HID, analog audio
L477-1SEXACPU module, 1x Fiber XV, 1x DVI-D monitor, single-link, 2x USB-HID, USB 2.0 embedded, analog audio
L477-1SHXCPU module, 1x Fiber XV, 1x DVI-D monitor, single-link, 2x USB-HID
L477-1SHXVCPU module, 1x Fiber XV, 1x DVI-D monitor, single-link, 2x USB-HID, DVI-I (VGA) input
L477-1SUXCPU module, 2x Fiber XV, 1x DVI-D monitor, single-link, USB-HID, USB 2.0
L477-2S4XCPU module, 2x Fiber XV, 2x DVI-D monitors, single-link, 4x USB-HID

All Variations

ImageModell:Description
455-4G19” rack mount kit for 1-4 Single-Head devices without additional modules
455-4KMounting plate to mount by screws
455-5KMounting plate to mount by snap-on
455-8G19” rack mount kit for 1-4 devices, for all other Draco compact extenders
455-PS19” power supply for up to 3 devices

All Variations

ImageModell:Description
260-5GInternational power supply 100 – 240VAC/5VDC (spare part for KVM units)
477-VESAVESA mounting plate to mount by screws

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

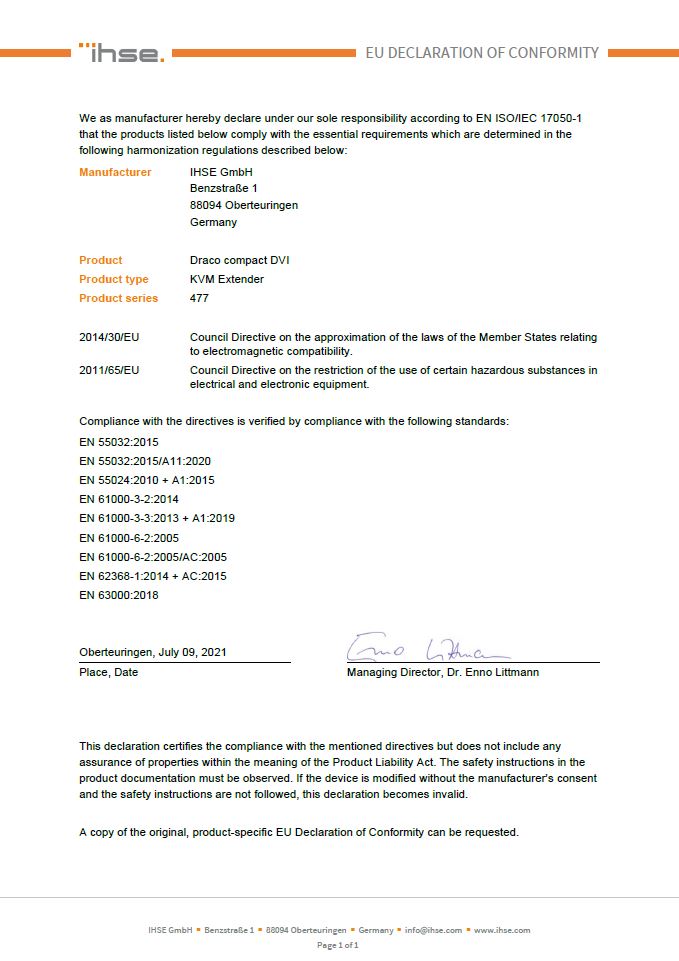

Downloads

Draco compact (Series 477)

System Diagram

Draco compact (Series 477)
