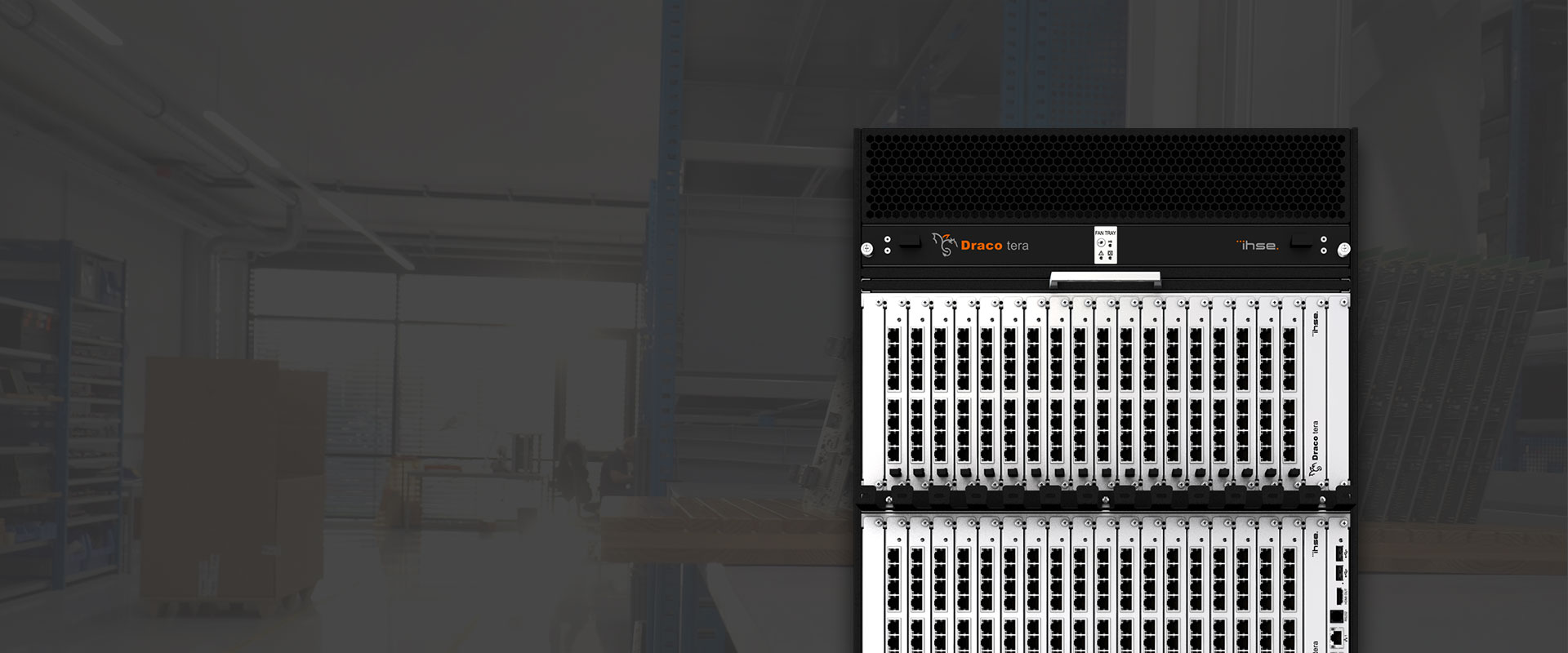

DRACO TERA ENTERPRISE
The Draco tera enterprise is a high performance, modular matrix system for bidirectional signal distribution of high definition video, audio, and data over Cat X, fiber optics and SDI. Available with up to 48, 80, 160, 288 and 576 I/O ports.
Modular and scalable KVM Matrix Switch
The Draco tera enterprise matrix is the perfect high performance, modular routing system for complete in-band signal distribution of high definition video, audio, and data over Cat X, multi-mode or single-mode fiber optic cable supporting up to 576 I/O ports in a single frame.
Designed with performance and flexibility in mind, the Draco tera enterprise offers tremendous scalability with cost effective features. Each port can be user-configured as an input or an output scalable from one CPU to multiple workstations or with multiple CPUs managed by a single workstation console.
For mission-critical installations, Draco tera matrix switches are ideal. The multi-level redundancy concept of the Draco tera enterprise offers the highest level of reliability for 24/7 operation. Each Draco tera enterprise chassis supports fully redundant power and hot swappable modules for full service and field upgrades without interrupting signal flow. The Draco tera enterprise is compatible with all IHSE extenders
Product Details
- Scalable and flexible architecture
- Critical components hotswappable
- Instant switching
- Latency-free video transmission
- Flex-Port technology for dynamic port assignment
- Mix & Match (fiber ports can be switched to Cat-X ports and vice versa)
- Matrix Grid option allows multi-matrix connections through Grid lines
- Multi-signal support: KVM, USB 2.0/3.0, SDI (SD/HD/3G)
- Remote extenders can be updated through the matrix
- API Service for connection with media controls
- Multi-Screen Control (new firmware up to 8 ports)
- LDAP user management
- SNMP & Syslog monitoring
- Redundant power supply
- Support of full or partial matrix redundancy
Specifications
KVM
Supported Signals: DisplayPort, HDMI, DVI-D, DVI-I, USB 2.0, USB-HID, RS232, RS422, analog / digital or balanced audio
Universal (KVM / SDI)
Supported Signals: USB 3.0, SDI
Part-No.
All Variations
| Image | Modell: | Description |
|---|---|---|
 | K480-152-R1 | Draco tera enterprise with 152 ports (base unit with controller module and 2x power supply units), 9 RU, free configuration. Secondary controller module for redundancy/auto failover as an option. |
 | K480-080-R1 | Draco tera enterprise with 80 ports (base unit with controller module and 1x power supply unit), 4 RU, free configuration |
 | K480-048-R1 | Draco tera enterprise with 48 ports (base unit with controller module and 1x power supply unit), 3 RU, free configuration |
 | K480-160-R1 | Draco tera enterprise with 160 ports (base unit with controller module and 2x power supply units), 9 RU, free configuration |

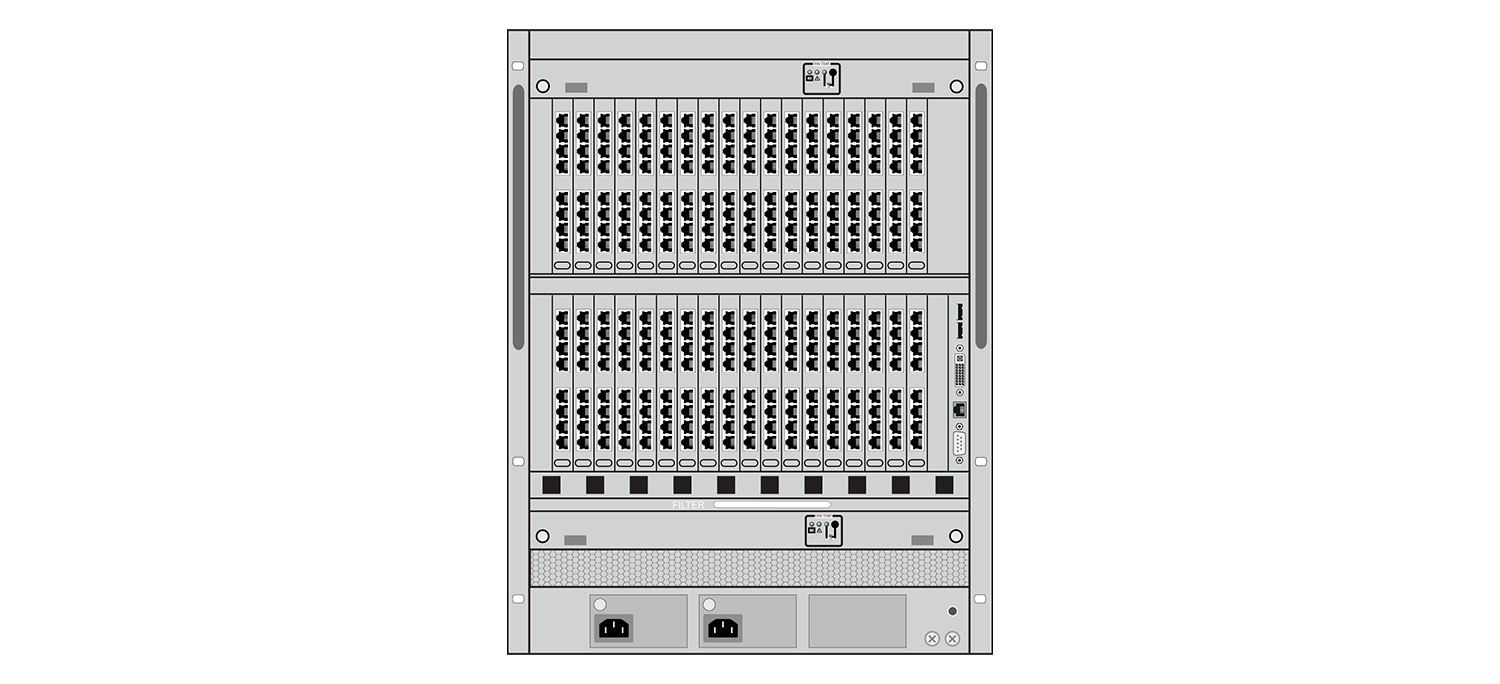

 | K480-288-R1 | Draco tera enterprise with 288 ports (base unit with controller module and 2x power supply units), 13 RU, free configuration |
 | K480-576-R1A | Draco tera enterprise with 576 ports (base unit with 2x controller modules and 2x power supply units), 25 RU, free configuration |
 | K480-576S-R1A | Draco tera enterprise with 576 ports symmetric (base unit 2 x 288 ports (288 inputs / 288 outputs) with 2x controller modules and 2x power supply units), 25 RU, free configuration |
All Variations
| Image | Modell: | Description |
|---|---|---|

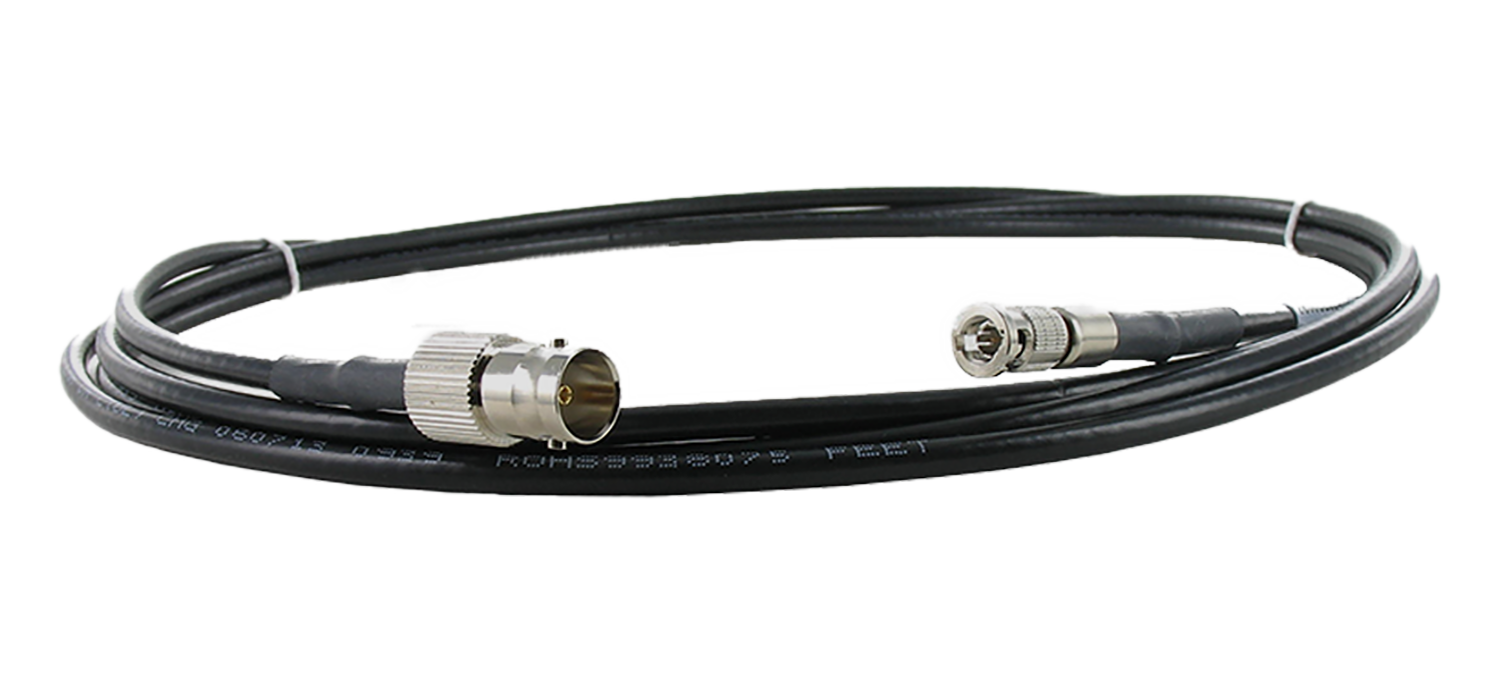

 | 459-BMB | Adapter cable coax, Micro-BNC to BNC (suitable for 459-3BX) |

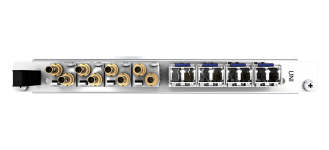

 | 480-UNI16 | Draco tera enterprise universal I/O module (8 ports) for USB 3.0 and SDI, empty, free configuration |
 | 459-3FX | SFP single-mode, LC duplex, bidirectional, 3G-SDI, MSA |
 | 459-3BX | SFP SDI, 3G/HD/SD video, Micro-BNC to BNC, MSA |
 | 459-1S | SFP, single-mode, LC duplex, bidirectional, 1G, MSA |
| 459-1V | SFP single-mode, LC duplex, bidirectional, 3G XV, MSA |
 | 480-C8R1 | Draco tera enterprise Cat X I/O module (8 ports), Multi-Screen with 8 monitors |
| 459-6M | SFP multi-mode, LC duplex, bidirectional, for USB 3.0, 6G, MSA |
 | 480-GRD-S8R1 | Draco tera enterprise Grid board (8 to 1), LC duplex fiber, 10 km, 10G |
| 459-10S | SFP single-mode, LC duplex, bidirectional, 10G, MSA, 10km |
| 480-S8X | Draco tera enterprise fiber, I/O module (8 ports), fiber XV (3G) incl. 8 x 459-1V |
| 480-S8R1 | Draco tera enterprise fiber, I/O module (8 ports) incl. 8 x 459-1S |
| 480-C8X | Draco tera enterprise Cat X I/O module (8 ports), Cat X XV (3G) |
 | 480-CTRL2 | Draco tera enterprise controller module incl. Dual TCP/IP, HDMI, USB-HID, RS232 and Genlock |
All Variations
| Image | Modell: | Description |
|---|---|---|
| 480-CTRL2 | Controller module incl. Dual TCP/IP, HDMI, USB-HID, RS232 and Genlock |
 | 480-FAN-048 | Fan tray for Draco tera enterprise with 48 ports (spare part) |
 | 480-FAN-080 | Fan tray for Draco tera enterprise with 80 ports (spare part) |
 | 480-FAN-160 | Fan tray for Draco tera enterprise with 160 ports (spare part) |
| 480-FAN-288 | Fan tray for Draco tera enterprise with 288 ports (spare part) |
| 480-FAN-576 | Fan tray for Draco tera enterprise with 576 ports (spare part) |
 | 480-FLTR-048 | Filter pads as consumable supply for Draco tera enterprise with 48 ports (spare part) |
 | 480-FLTR-080 | Filter pads as consumable supply for Draco tera enterprise with 80 ports (spare part) |
 | 480-FLTR-160 | Filter pads as consumable supply for Draco tera enterprise with 160 ports (spare part) |
| 480-FLTR-288 | Filter pads as consumable supply for Draco tera enterprise with 288 ports (spare part) |
| 480-FLTR-576 | Filter pads as consumable supply for Draco tera enterprise with 576 ports (spare part) |
 | 480-RED-048 | Plug-in power supply unit for Draco tera enterprise with 48 ports (spare part or redundancy) |
| 480-RED-080 | Plug-in power supply unit for Draco tera enterprise with 80 ports (spare part or redundancy) |
| 480-RED-288 | Plug-in power supply unit for Draco tera enterprise with 160/288ports (spare part or redundancy) |
| 480-RED-576-R1 | Plug-in power supply unit for Draco tera enterprise with 576 ports (spare part or redundancy) |
