Long-distance DisplayPort extension

Draco vario DisplayPort 1.1 (Series 483)

The Draco vario DisplayPort enables the transmission of high definition video and audio data over the cutting-edge DisplayPort interface. They are compatible with Draco tera KVM matrix switches and cross-compatible with the DVI and HDMI extender series for video and USB-HID extension. Transmission of fully-digital video signals (including 3D video in full-HD) is supported in 4K resolutions up to 4096 x 2160 and 3840 x 2160. The DisplayPort extender supports all common digital audio standards. This eliminates the need for additional audio modules, enabling playback of the audio signal through monitors with integrated loudspeakers. Integration of optional add-on modules for digital audio input and output is also possible. The DisplayPort extenders are available in single and redundant interconnection variants.

Product Features

Draco vario DisplayPort 1.1 (Series 483)
  • The standard version allows operation of a remote workstation with a DisplayPort monitor and USB HID devices (such as a keyboard and mouse)
  • All devices with redundant data link available
  • Transmission of fully-digital video signals up to 4K (4096 x 2160) and Ultra HD
  • The interface is 3D compatible, side-by-side and top-and-bottom 3D formats can be transmitted
  • Simple keyboard commands (hot keys) for transmission of remotely connected monitors’ DDC information; including permanent storage at the CPU Unit
  • The audio format PCM can be transfered via the DisplayPort 1.1 interface (up to 96 kHz)
  • Compatibility:
    with all chassis and modules of the Draco vario extenders
    with all major operating systems
    with all IHSE Draco KVM matrix switches
    with all IHSE Draco vario models and chassis and Draco compact extenders

Specifications

Draco vario DisplayPort 1.1 (Serie 483)
Input
DisplayPort 1.1
Output
DisplayPort 1.1
Maximum Resolution
2560 x 2048 @ 60 Hz (24 bit) - Dual Link
3840 x 2160 @ 30 Hz (24 bit) - Ultra HD 4096 x 2160 @ 30 Hz (24 bit) - 4K
Audio (embedded)
Stereo Linear Pulse Code Modulation (LPCM), 2-channel PCM
Keyboard/Mouse
USB-HID
Optional Interfaces
USB 2.0, analog audio with RS232, digital audio, PS/2, etc.
Maximum transmission range for video and USB-HID signals (end-to-end connection)
Cat X: 140 m (459 ft)
Single-Mode 9μm: 10,000 m (32,808 ft)
Single-Mode 9μm XV: 5,000 m (16,404 ft)
Multi-Mode 50μm (OM3): 1,000 m (3,280 ft)
Multi-Mode 50μm: 400 m (1,312 ft)
Power Supply
International power supply unit ( 90-240V Input)

Notice:
Transmission ranges for transparent USB when using add-on modules
When using L474/R474 add-on modules with transparent USB, the binding specifications stated in the data sheets of the add-on modules apply.

Part-No.

Draco vario DisplayPort 1.1 (Series 483)

All Variations

ImageModellDescription

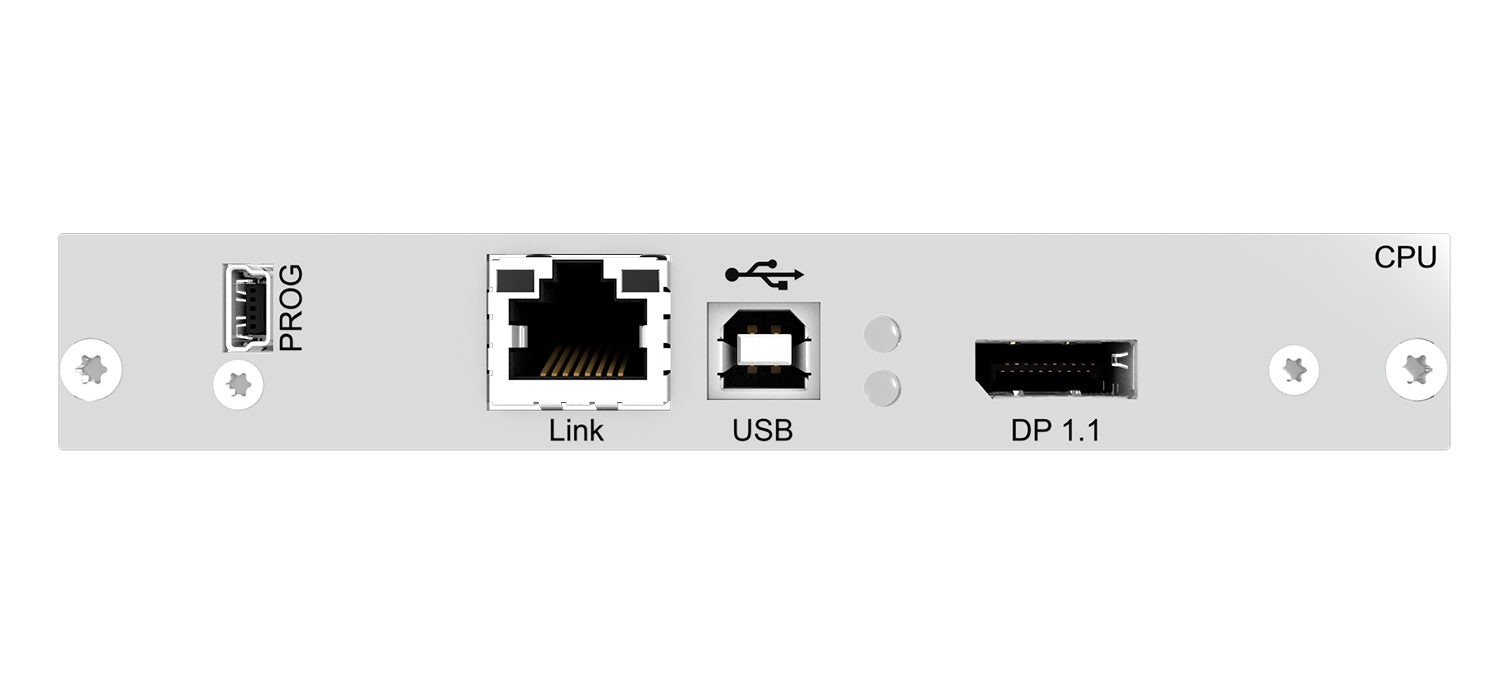

L483-BSHCDraco vario CPU module DP 1.1, SL, USB-HID, Cat X 1G
L483-BSHSDraco vario CPU module DP 1.1, SL, USB-HID, fiber 1G
L483-BSHCRDraco vario CPU module DP 1.1, SL, USB-HID, Cat X 1G, red
L483-BSHSRDraco vario CPU module DP 1.1, SL, USB-HID, fiber 1G, red.
R483-BSHCDraco vario CON module DP 1.1, SL, USB-HID, Cat X 1G
R483-BSHSDraco vario CON module DP 1.1, SL, USB-HID, fiber 1G
R483-BSHCRDraco vario CON module DP 1.1, SL, USB-HID, Cat X 1G, red.
R483-BSHSRDraco vario CON module DP 1.1, SL, USB-HID, fiber 1G, red

All Variations

ImageModell:Description
L483-BPHCCPU module, 1x Cat X, 1x DisplayPort monitor, dual-link or 4K30, 2x USB-HID
L483-BPHSCPU module, 1x Fiber, 1x DisplayPort monitor, dual-link or 4K30, 2x USB-HID
L483-BPHXCPU module, 1x Fiber XV, 1x DisplayPort monitor, dual-link or 4K30, 2x USB-HID
L483-BPHCRCPU module, 2x Cat X (redundant),1x DisplayPort monitor, dual-link or 4K30, 2x USB-HID
L483-BPHSRCPU module, 2x Fiber (redundant), 1x DisplayPort monitor, dual-link or 4K30, 2x USB-HID
L483-BPHXRCPU module, 2x Fiber XV (redundant), 1x DisplayPort monitor, dual-link or 4K30, 2x USB-HID
R483-BPHCCON module, 1x Cat X, 1x DisplayPort monitor, dual-link or 4K30, 2x USB-HID
R483-BPHSCON module, 1x Fiber, 1x DisplayPort monitor, dual-link or 4K30, 2x USB-HID
R483-BPHXCON module, 1x Fiber XV, 1x DisplayPort monitor, dual-link or 4K30, 2x USB-HID
R483-BPHCRCON module, 2x Cat X (redundant), 1x DisplayPort monitor, dual-link or 4K30, 2x USB-HID
R483-BPHSRCON module, 2x Fiber (redundant), 1x DisplayPort monitor, dual-link or 4K30, 2x USB-HID
R483-BPHXRCON module, 2x Fiber XV (redundant), 1x DisplayPort monitor, dual-link or 4K30, 2x USB-HID

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio
