DRACO VARIO DISPLAYPORT 1.1

The Draco vario DisplayPort 1.1 extender enables video transmission of two DisplayPort including keyboard and mouse signals over a single duplex fiber optic cable or a Cat X cable and includes keyboard and mouse control. This reduces the complexity of an installation, saves cost, space, cabling and reduces the need for matrix ports in a KVM matrix switch installation.

Product Details

Specifications

Part Numbers

Downloads

System Diagram

Configurator

Long-distance DisplayPort extension

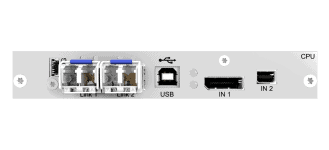

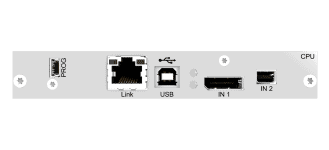

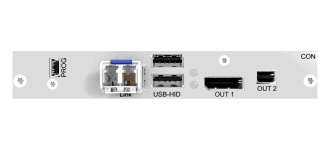

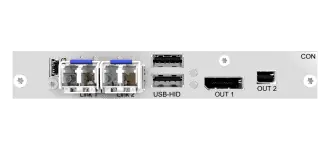

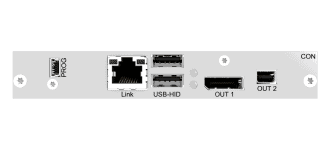

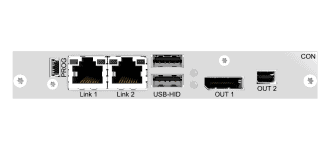

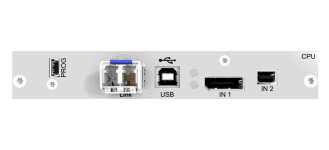

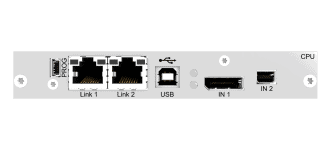

Draco vario DisplayPort 1.1 (Series 483)

The Draco vario DisplayPort 1.1 KVM extender allows the visually lossless extension of highresolution video and audio signals via the DisplayPort interface. Fully digital video signals can be transmitted in Single-Head operation in 4K resolutions up to 4096 x 2160 (4K DCI) and 3840 x 2160 (UHD). In Dual-Head mode, resolutions of up to 1920 x 1200 pixels per channel are supported. The embedded audio signal is directly reproduced by the connected displays with integrated speakers. In combination with optional analog or digital audio modules, the stereo signal can be
extracted and outputted separately. The Draco vario DisplayPort 1.1 KVM extender is also compatible* with Draco tera KVM matrix systems.

Product Features

Draco vario DisplayPort 1.1 (Series 483)

Operation of a CPU from a remote workstation with two DisplayPort monitors and USB HID devices (keyboard/mouse)
Transmission of fully digital video signals up to 4K DCI (4096 x 2160) and UHD (3840 x 2160) up to 30 Hz, color depth 8 bit (4:4:4)
The DisplayPort interface can transmit the audio format at a sample rate of up to 192 kHz
Intelligent monitor EDID management
Optional: Redundant connections for 24/7 availability
Compatibility with all common operating systems (Linux, Unix, Windows, Mac OS) and Draco vario chassis
Compatible with IHSE Draco tera KVM matrix systems, all add-on modules of the Draco vario extender series for audio and data signals such as USB or RS232

Specifications

Draco vario DisplayPort 1.1 (Serie 483)

Input

Primary channel: 1x DisplayPort 1.1
Secondary channel: 1x Mini DisplayPort 1.1

Output

Primary channel: 1x DisplayPort 1.1
Secondary channel: 1x Mini DisplayPort 1.1

Maximum Resolution

Single-Head operation (primary channel)
up to 4096 x 2160 @ 30 Hz - 4K DCI
Dual-Head operation (primary and secondary channel)
up to 2x 1920 x 1200 @ 60 Hz

Audio (embedded)

Stereo Linear Pulse Code Modulation (LPCM), DTS, DTS-HD (5.1), Dolby Digital, Dolby Digital Plus (5.1)

Keyboard/Mouse

USB-HID

Optional Interfaces

USB 2.0 embedded (36, 50/100 or 480 Mbit/s), USB-HID, PS/2, analog audio with RS232 or RS422, digital audio, balanced audio.
Suitable add-on modules under the following link: https://www.ihse.com/add-on-modules/

Maximum transmission range for video and USB-HID signals (end-to-end connection)

Cat X: 140 m (459 ft)
Single-Mode 9μm: 10,000 m (32,808 ft)
Single-Mode 9μm XV: 5,000 m (16,404 ft)
Multi-Mode 50μm (OM3): 1,000 m (3,280 ft)
Multi-Mode 50μm: 400 m (1,312 ft)

Power Supply

International power supply unit ( 90-240V Input)

Notice:
Transmission ranges for transparent USB when using add-on modules
When using L474/R474 add-on modules with transparent USB, the binding specifications stated in the data sheets of the add-on modules apply.
