Draco vario ultra DisplayPort 1.1

The Draco vario ultra DisplayPort 1.1 extender enables video transmission of two DisplayPort including keyboard and mouse signals over a single duplex fiber optic cable or a Cat X cable and includes keyboard and mouse control. This reduces the complexity of an installation, saves cost, space, cabling and reduces the need for matrix ports in a KVM matrix switch installation.

Fraunhofer IIS’ Lici® codec inside

Draco vario ultra DisplayPort 1.1 (Series 493)

The Draco vario ultra DisplayPort 1.1 Dual-Head KVM extender allows the visually lossless extension of highresolution video and audio signals via the DisplayPort interface. Fully digital video signals can be transmitted in Single-Head operation in 4K resolutions up to 4096 x 2160 (4K DCI) and 3840 x 2160 (UHD). In Dual-Head mode, resolutions of up to 1920 x 1200 pixels per channel are supported.

The embedded audio signal is directly reproduced by the connected displays with integrated speakers. In combination with optional analog or digital audio modules, the stereo signal can be extracted and outputted separately. The Draco vario ultra DisplayPort 1.1 Dual-Head KVM extender is also compatible* with Draco tera KVM matrix systems.

Product Features

Draco vario ultra DisplayPort 1.1 (Series 493)

Operation of a CPU from a remote workstation with two DisplayPort monitors and USB HID devices (keyboard/mouse)
Transmission of fully digital video signals up to 4K DCI (4096 x 2160) and UHD (3840 x 2160) up to 30 Hz, color depth 8 bit (4:4:4)
The DisplayPort interface can transmit the audio format at a sample rate of up to 192 kHz
Intelligent monitor EDID management
Optional: Redundant connections for 24/7 availability
Compatibility with all common operating systems (Linux, Unix, Windows, Mac OS) and Draco vario chassis
Compatible* with IHSE Draco tera KVM matrix systems, all add-on modules of the Draco vario extender series
for audio and data signals such as USB or RS232
No frame drops, lossless image compression
Synchronous video transmission in multihead applications, full 60 fps, Low-Latency Mode

*Video Transmission of the Draco vario ultra extenders (series 49x) is not compatible with the main modules of Draco vario Classic (series 47x/48x) and the Draco compact extenders (series 477)

Draco vario ultra DisplayPort 1.1 Inquiry

For personalized insights and dedicated support, explore our additional resources.

Specifications

Draco vario ultra DisplayPort 1.1 (Series 493)

Input

Primary channel: 1x DisplayPort 1.1
Secondary channel: 1x Mini DisplayPort 1.1

Output

Primary channel: 1x DisplayPort 1.1
Secondary channel: 1x Mini DisplayPort 1.1

Audio (embedded)

Stereo Linear Pulse Code Modulation (LPCM), DTS, DTS-HD (5.1), Dolby Digital, Dolby Digital Plus (5.1)

Maximum Resolution

Single Head: up to 4096 x 2160 @ 30 Hz
Dual Head: up to 2x 1920 x 1200 @ 60 Hz

Color Depth

8 bit / True Color

Maximum transmission range for video and USB-HID signals (end-to-end connection)

Cat X: 140 m (459 ft)
Single-Mode 9μm: 10,000 m (32,808 ft))
Single-Mode 9μm XV: 5,000 m (16,404 ft))
Multi-Mode 50μm (OM3): 1,000 m (3,280 ft))
Multi-Mode 50μm: 400 m (1,312 ft)

Optional Interfaces

USB 2.0 embedded, analog audio with RS232 or RS422, digital audio, PS/2, balanced audio

Keyboard/Mouse

USB-HID

Notice:
Transmission ranges for transparent USB when using add-on modules
When using L474/R474 add-on modules with transparent USB, the binding specifications stated in the data sheets of the add-on modules apply.

System Diagrams

Draco vario ultra DisplayPort 1.1 (Series 493)

Downloads

Draco vario ultra DisplayPort 1.1 (Series 493)

Data Sheet

Download

Manual

Download

Quick-Setup

Download

Conformity

Download

Part-No.

Draco vario ultra DisplayPort 1.1 (Series 493)

Devices

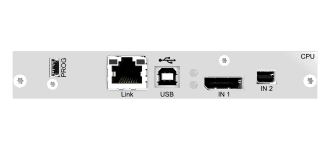

L493-BDHC

Draco vario ultra CPU module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, Cat X 1G

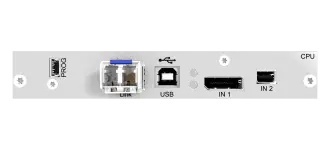

L493-BDHS

Draco vario ultra CPU module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, LWL LC SM 1G

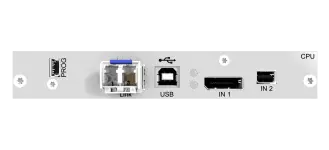

L493-BDHX

Draco vario ultra CPU module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, LWL LC SM 3G

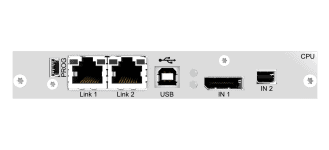

L493-BDHCR

Draco vario ultra CPU module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, Cat X 1G, red.

L493-BDHSR

Draco vario ultra CON module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, LWL LC SM 1G, red.

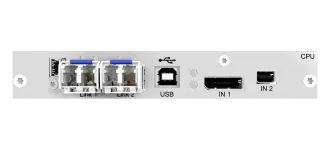

L493-BDHXR

Draco vario ultra CON module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, LWL LC SM 3G, red.

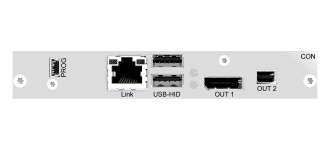

R493-BDHC

Draco vario ultra CON module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, Cat X 1G

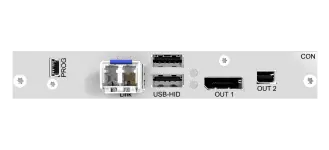

R493-BDHS

Draco vario ultra CON module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, LWL LC SM 1G

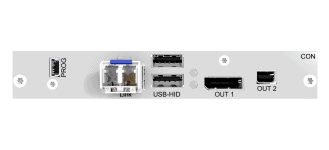

R493-BDHX

Draco vario ultra CON module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, LWL LC SM 3G

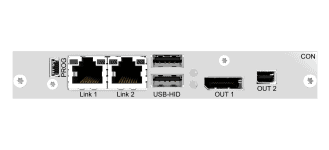

R493-BDHCR

Draco vario ultra CON module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, Cat X 1G, red.

R493-BDHSR

Draco vario ultra CON module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, LWL LC SM 1G, red.

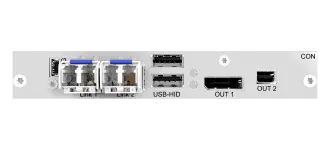

R493-BDHXR

Draco vario ultra CON module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, LWL LC SM 3G, red.
