DRACO VARIO HDMI 1.3

The Draco vario HDMI extender gives users real-time access to HDMI computers from a remote workstation, including monitor, keyboard, mouse, loudspeakers and other peripheral devices.

Long-distance HDMI extension

Draco vario HDMI 1.3 (Series 481)

The Draco vario HDMI is the perfect extender for high resolution HDMI video signals of superior quality, including 3D formats and digital audio. Multi-Head applications are achieved using an optional module.

The Draco vario HDMI extender is ideal for broadcast applications as well as professional audio and video editing. Use the Draco vario HDMI extender to transmit your audio and video data to the highest resolutions, including Full HD and 2K.

Product Features

Draco vario HDMI 1.3 (Series 481)
  • Lockable HDMI port
  • High resolution video can be transmitted via HDMI interface
  • The interface is compatible with 3D technology. Side-by-Side and Top-and-Bottom formats can be transmitted
  • The standard version allows operation of a remote workstation with a HDMI/DVI-D monitor and two USB-HID devices (such as a keyboard and mouse)
  • Compatible with all major operating systems
  • Compatible with all IHSE Draco KVM switches, Draco vario and compact extenders, Draco vario chassis and modules
  • HDMI embedded audio is cross compatible with digital audio add-on modules
  • Redundant data link
  • Fits into one 19“/1U rack

Specifications

Draco vario HDMI 1.3 (Series 481)
Input
HDMI with embedded audio
Output
HDMI with embedded audio
Serial RS232 / RS422
Up to 115,200 baud
Analog Audio
Bidirectional stereo audio connection, 24 bit, 38.4 kHz
Digital Audio
Compatible with AES/EBU, S/PDIF, Dolby Digital, DTS, PCM, 32-96 kHz
USB Data
USB-HID (for keyboard and mouse)
USB 2.0 embedded up to 50 Mbit/s
USB 2.0 hi-speed up to 480 Mbit/s
Maximum Resolution
1920 x 1200 @ 60 Hz
Color Depth
8 bit / True Color
Maximum transmission range for video and USB-HID signals (end-to-end connection)
Cat X: 140 m (459 ft)
Single-Mode 9μm: 10,000 m (32,808 ft)
Single-Mode 9μm XV: 5,000 m (16,404 ft)
Multi-Mode 50μm (OM3): 1,000 m (3,280 ft)
Multi-Mode 50μm: 400 m (1,312 ft)

Notice:
Transmission ranges for transparent USB when using add-on modules
When using L474/R474 add-on modules with transparent USB, the binding specifications stated in the data sheets of the add-on modules apply.

Part-No.

Draco vario HDMI 1.3 (Series 481)
CON Unit: Cat X

R481-BHHC

CON module, 1x Cat X, 1x HDMI monitor, single-link, 2x USB-HID

R481-BHHCR

CON module, 2x Cat X (redundant), 1x HDMI monitor, single-link, 2x USB-HID

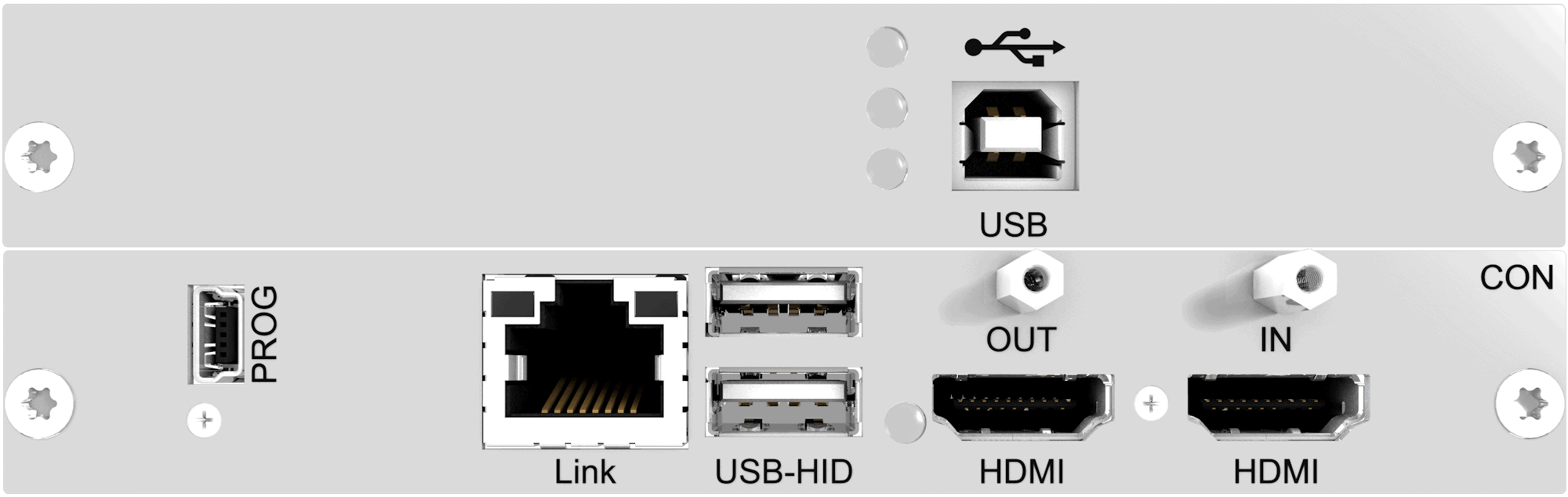

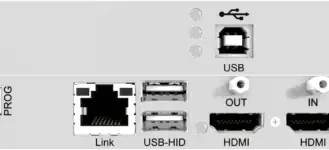

R477-1SHC

CON module, 1x Cat X, 1x HDMI monitor, single-link, 2x USB-HID, local KVM-Switch

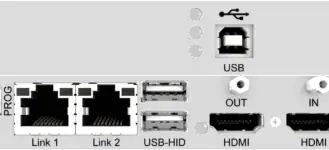

R481-BHHCWR

CON module, 2x Cat X (redundant), 1x HDMI monitor, single-link, 2x USB-HID, local KVM-Switch

R481-BHXC

CON module, 1x Cat X, 1x HDMI monitor, single-link

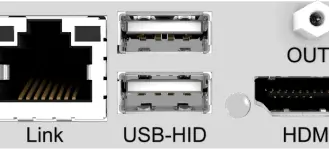

R481-BUHCL

CON module, 1x Cat X, HDMI 4K30

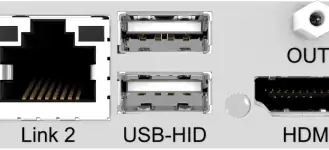

R481-BUHCLR

CON module, 2x Cat X (redundant), HDMI 4K30

R481-BHHS

CON module, 1x Fiber, 1x HDMI monitor, single-link, 2x USB-HID

R481-BHHSR

CON module, 2x Fiber (redundant), 1x HDMI monitor, single-link, 2x USB-HID

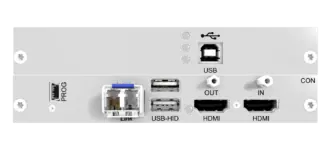

R481-BHHSW

CON module, 1x Fiber, 1x HDMI monitor, single-link, 2x USB-HID, local KVM-Switch

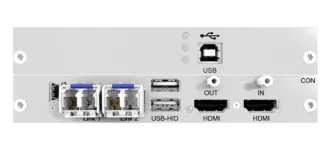

R481-BHHSWR

CON module, 2x Fiber (redundant), 1x HDMI monitor, single-link, 2x USB-HID, local KVM-Switch

R481-BHXS

CON module, 1x Fiber, 1x HDMI monitor, single-link

R481-BUHSL

CON module, 1x Fiber, 1x HDMI monitor 4K30

R481-BUHSLR

CON module, 2x Fiber, 1x HDMI monitor 4K30, redundant

L481-BHHC

CPU module, 1x Cat X, 1x HDMI monitor, single link, 2x USB-HID

L481-BHHCL

CPU module, 1x Cat X, 1x HDMI monitor, single-link, 2x USB-HID, local output

L481-BHHCLR

CPU module, 2x Cat X (redundant), 1x HDMI monitor, single-link, 2x USB-HID, local output

L481-BHHCR

CPU module, 2x Cat X (redundant), 1x HDMI monitor, single-link, 2x USB-HID

L481-BHXC

CPU module, 1x Cat X, 1x HDMI monitor, single-link

L481-BUHCL

CPU module, 1x Cat X, 1x HDMI monitor 4K30

L481-BUHCLR

CPU module, 2x Cat X, 1x HDMI monitor 4K30, redundant

L481-BHHS

CPU module, 1x Fiber, 1x HDMI monitor, single-link, 2x USB-HID

L481-BHHSL

CPU module, 1x Fiber, 1x HDMI monitor, single-link, 2x USB-HID, local output

L481-BHHSLR

CPU module, 2x Fiber (redundant), 1x HDMI monitor, single-link, 2x USB-HID, local output

L481-BHHSR

CPU module, 2x Fiber (redundant), 1x HDMI monitor, single-link, 2x USB-HID

L481-BHXS

CPU module, 1x Fiber, 1x HDMI monitor, single-link

L481-BUHSL

CPU module, 1x Fiber, 1x HDMI monitor 4K30

L481-BUHSLR

CPU module, 2x Fiber, 1x HDMI monitor 4K30, redundant

Downloads

Draco vario HDMI 1.3 (Series 481)

System Diagram

Draco vario HDMI 1.3 (Series 481)
