Chassis & Accessories

A wide range of application installation

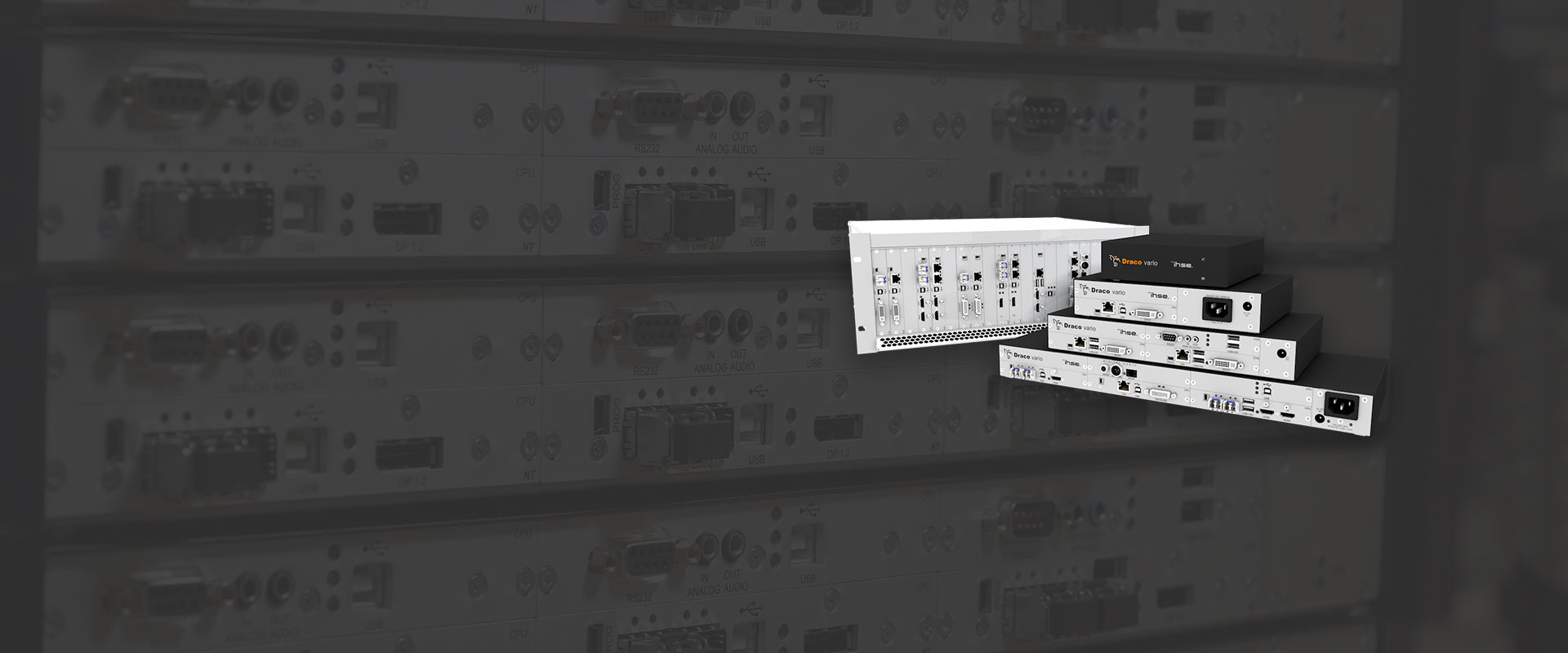

Draco vario chassis allow individual Draco vario series extenders to be combined in standalone or rack mounted configuration. The flexible, modular system allows customized integration of devices to meet specific installation requirements. Chassis are available in sizes to accommodate 2, 4, 6 and 21 individual modules.

Individual and free customization
The Draco vario chassis is compatible with all extender modules in the Draco vario and Draco ultra range (474, 481, 482, 483, 490, 492 and 493 series), offering complete freedom of choice in the selection of extender boards for every installation configuration. The chassis are compatible with all available vario boards, including CPU and CON Units, CWDM modules, repeaters and SNMP modules. Installation of the Draco tera 8-port compact board is also possible.

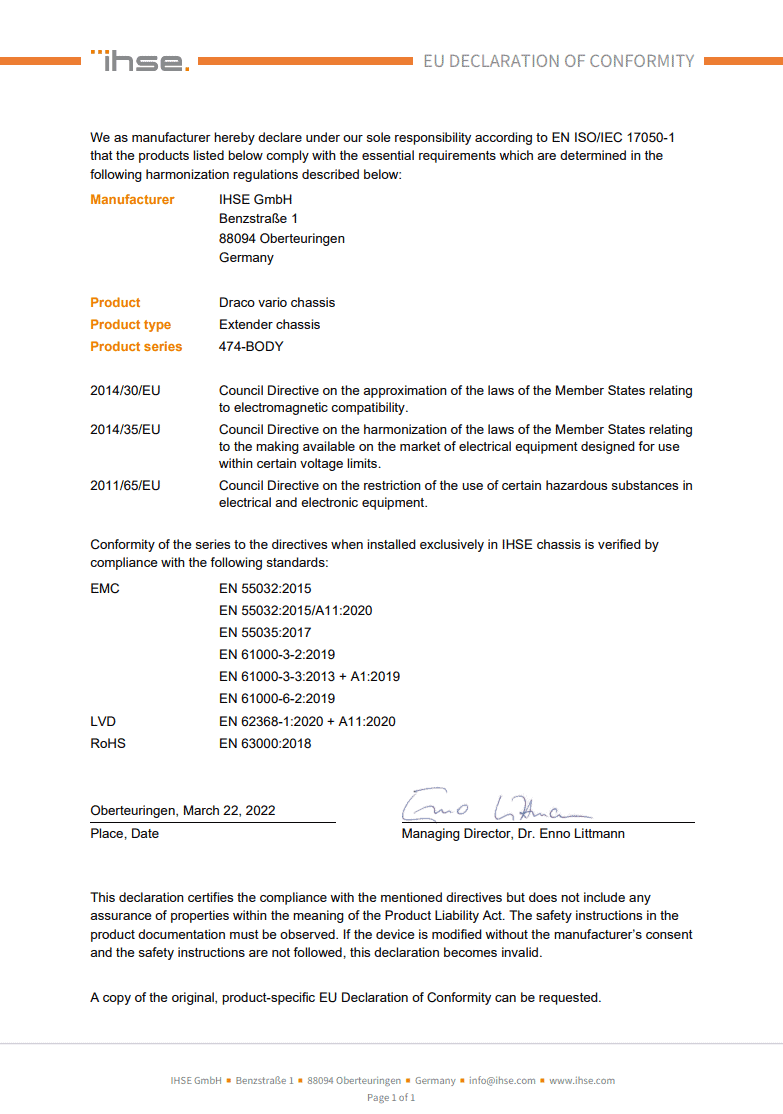

Operational reliability and maintenance
Draco vario chassis are available with integral and external power supply options and can be configured with redundant supplies. Hot-swap capability is available as an option on 6 and 21 module chassis to ensure continuous operation during maintenance.

Online configurator
The Draco System Designer is available to assist with system configuration.

Part-No.

Chassis & Accessories
Chassis

474-BODY2

Chassis for 2 modules, external power supply

474-BODY2R

Chassis for 2 modules, external power supply, setup for redundant power supply

474-BODY2N

Chassis for 2 modules, integrated power supply, setup for redundant power supply

474-BODY2DC-12

Chassis for 2 modules, integrated 12V DC power supply, setup for redundant power supply

474-BODY2DC-24

Chassis for 2 modules, integrated 24V DC power supply, setup for redundant power supply

474-BODY2DC-48

Chassis for 2 modules, integrated 48V DC power supply, setup for redundant power supply

474-BODY4

4Chassis for 4 modules, external power supply

474-BODY4R

Chassis for 4 modules, external power supply, setup for redundant power supply

474-BODY6R-R1

Chassis for 6 modules, integrated power supply, setup for redundant power supply

474-BODY6DC-12

Chassis for 6 modules, integrated 12V DC power supply, setup for redundant power supply

474-BODY6DC-24

Chassis for 6 modules, integrated 24V DC power supply, setup for redundant power supply

474-BODY6DC-48

Chassis for 6 modules, integrated 48V DC power supply, setup for redundant power supply

474-BODY2BPF

Chassis for 2 modules, with integrated backplane and power supply, setup for redundant external power supply (lockable)

474-BODY6BP

Chassis for 6 modules, backplane with 2 integrated power supply units on back side

474-BODY6BPF

Chassis for 6 modules, backplane with 2 integrated power supply units on front side

474-BODY21/4U-R1

4 RU / 19“ rack chassis for 21 modules, integrated power supply, setup for redundant power supply

474-BODY21/4UR-R1

4 RU / 19“ rack chassis for 21 modules, two integrated PSUs, setup for redundant power supply

474-BRACKET

Mounting bracket for 2/4/6 bay chassis (L-brackets with screw slots)

474-2NRMK

19″-Einbauwinkel (1HE) für 2-fach Gehäuse mit eingebautem Netzteil

474-2RMK

19″-Einbauwinkel (1HE) für 2-fach Gehäuse

474-4RMK

19“-Einbauwinkel (1 HE) für 4-fach Gehäuse

474-6RMK

19″-Einbauwinkel (1HE) für 6-fach Gehäuse

474-PSU2

Netzteil für 2-fach Gehäuse (Ersatzteil oder Redundanz)

474-PSU4

Netzteil für 4-fach Gehäuse (Ersatzteil oder Redundanz)

474-PSU6

Netzteil für 6-fach Gehäuse (Ersatzteil oder Redundanz)

474-PSU21

Netzteil für 19″-Modulträger (Ersatzteil oder Redundanz)

474-6FAN

Lüfter für Gehäuse für 474-BODY6BP oder 474-BODY6BPF

474-MODFAN

Lüfterkassettenmodul für Draco vario Gehäuse (nachrüstbar für alle Draco vario Gehäuse)

436-DL59

DMS-59 > DMS-59 Kabel Dual Link

436-DH59

DMS-59 > DMS-59 Kabel DVI-D 2x

436-DMS1

DMS-59 > DMS-59 Stecker, 100 cm, Dual-Head / Dual Link

436-DMS2

DMS-59 > DMS-59 Stecker, 180 cm, Dual-Head / Dual Link

477-VESA

Befestigungsplatte für VESA-Schraubmontage

474-VSNAP

Befestigungsstreifen für Schnappmontage

474-VPLATE

Befestigungsstreifen für Schraubmontage

474-BLND1

Blindplatte für alle Gehäuseformen
