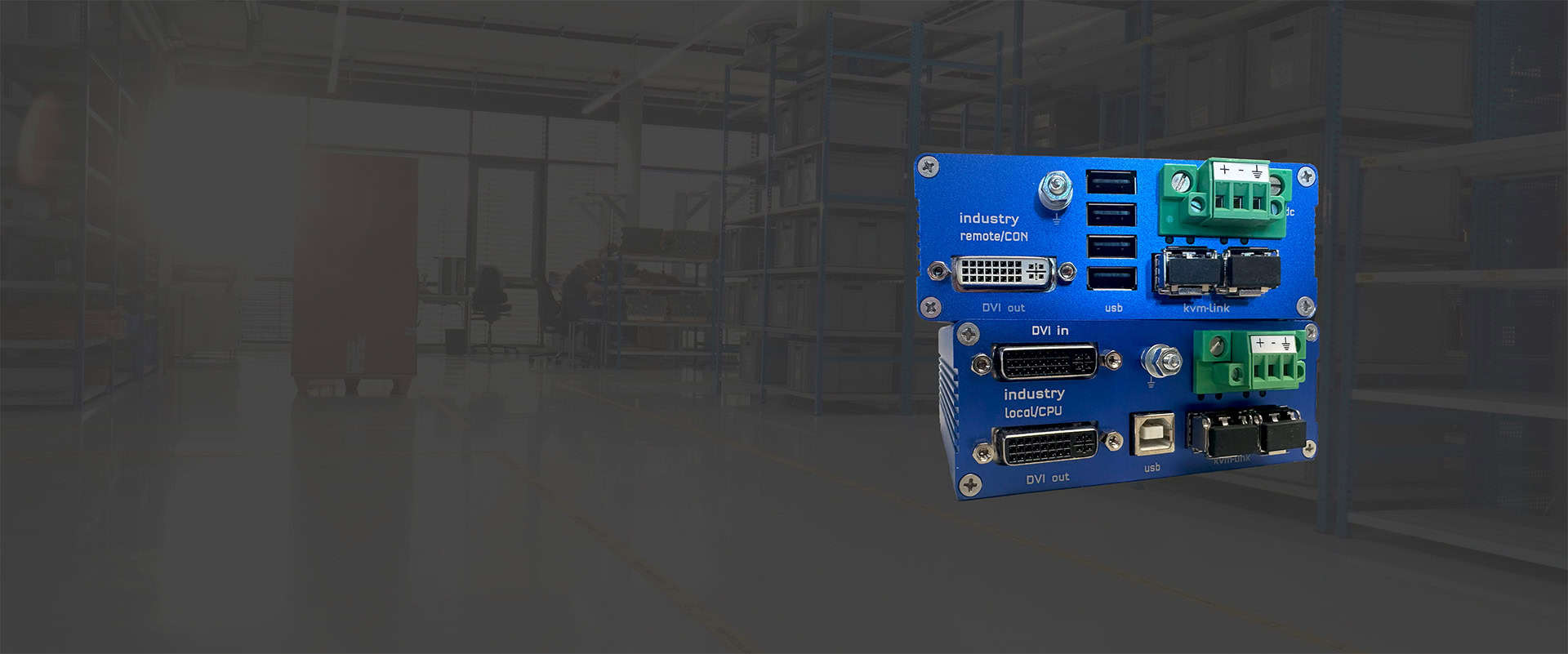

Industryflex – the extender for secure 24/7
operations, applications that require a
maximum resolution of 1920 x 1200 @ 60 Hz
The 24/7 Full HD
Extender and hot
ambient temperatur
Industryflex – the extender for secure 24/7 operations, applications that require a maximum resolution of 1920 x 1200 @ 60 Hz.
Its space-saving design and single-sided interfaces makes it the ideal solution for DIN Rail mounting or other space limited installations. The Phoenix terminal block supports seamless integration with 12 V DC power infrastructure of industrial environments.
Like other Flexline products, the Industryflex can easily be implemented as simple point-to-point extender or linked together with others into a switching matrix with up to 2000 end points using a Layer 3 network switch and Switching Manager as central authentication and connection broker.
Customer Benefits
High Temperatures
High Temperatures
Industry-Style
Industry-Style
Easy to Use
Easy to Use
Powerful
Powerful
Ergonomic
Ergonomic
Flexible
Flexible
Product Features
For use up to 55 degrees ambient temperature
Redundant (link only)
Resolution 1920 x 1200 @ 60 Hz
1 Gbit max. bandwidth per link
CATx & Fiber versions
Matrix usage with Switching Manager: video sharing, Mouse Glide & Switch, point-to-point switching
Industryflex Inquiry
For personalized insights and dedicated support, explore our additional resources.
Specifications
Output: 1x DVI-D
Fiber: 2x Fiber optical SFP 500 m
Fiber: 2x Fiber optical SFP 500 m
Optional for LWL:
KT1-7009 MultiMode 850 nm up to 500 m
KT1-7008 MultiMode up to 2 km
KT1-7010 SingleMode 1310 nm up to 20 km
KT1-7011 SingleMode BiDi 1310 / 1550 nm up to 20 km
CON: 1x 12 V / 1 A Phoenix Plug
System Diagrams
Part-No.
-
Industryflex Copper
KT-6014iL
Industryflex CPU Modul, 2x CATx, 2x DVI-D, Single Link, 1x USB Type B, Audio embedded, Audio analog, RS-232, Phoenix Plug
KT-6014iR
Industryflex CON Modul, 2x CATx, 1x DVI-D, Single Link, 4x USB Type A, Audio embedded, Audio analog, RS-232, 1 x Phoenix Plug
-
Industryflex Fiber
KT-6016iL
Industryflex CPU Modul, 2x LWL, 2x DVI-D, Single Link, 1x USB Type B, Audio embedded, Audio analog, RS-232,1 x Phoenix Plug

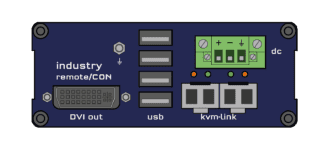

KT-6016iR
Industryflex CON Modul, 2x LWL, 1x DVI-D, Single Link, 4x USB Type A, Audio embedded, Audio analog, RS-232, 1 x Phoenix Plug
