Draco compact
The Draco compact offers a cost-effective method of delay-free extension and switching of keyboard, video and mouse signals in brilliant image quality.
Space-saving chassis
Draco compact extenders are housed in compact units. The small and space-saving chassis of the Draco compact are available in six standard versions, allowing the extension of high-res DVI signals as well as USB 2.0, USB-HID, VGA, analog and digital audio. Due to its compact size, the Draco compact can be located in small spaces. All connectors are on the same face for ease of installation, making it ideal for many demanding applications.
The Draco compact is ideally suited for smaller applications that do not need the full flexibility and modularity of the Draco vario system. The compact size allows unobtrusive location of devices in the workplace, e.g. mounting under the user’s desk. The versatile Draco compact KVM extender series is ideal for industrial and financial applications, education facilities and for maritime, air traffic control and other mission-critical installations that require maximum reliability and security.
Product Features
- Excellent image quality in all resolutions
- Single- and Dual-Head device models available
- Wide range of additional options:
– Two USB ports for HID devices
– USB 2.0 embedded
– Serial interface (RS232)
– Analog audio
– Digital audio - All connections on one side for an easy installation
- Simple keyboard commands (hot keys) for transmission of remotely connected monitors’ EDID information.
- 19” rack mount kit available – up to four units fit in one RU
- External power supply or optional tray mounted power supply for one RU frame
- DVI-D fiber devices are available as XV models for premium image transmission in all cases
- VESA mounting plate (optional)
- Ideal for space-saving installation at operator desk
Specifications
Single-Mode 9μm: 10,000 m (32,808 ft)
Single-Mode 9μm XV: 5,000 m (16,404 ft)
Multi-Mode 50μm (OM3): 1,000 m (3,280 ft)
Multi-Mode 50μm: 400 m (1,312 ft)
(4.06 x 5.63 x 1.14 inch)
(4.06 x 5.63 x 1.65 inch)
Part-No.
CON Unit: Cat X
R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio
R477-1SECA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 2x USB-HID, USB 2.0 embedded, Analog-Audio
R477-1SHC
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 2x USB-HID
R477-1SUC
CON Modul, 2x Cat X, 1x DVI-D Monitor, Single-Link, 2x USB-HID, 4x USB 2.0
R477-2S4C
CON Modul, 2x Cat X, 2x DVI-D Monitore, Single-Link, 4x USB-HID
CON Unit: Fiber (1Gbit/s)
R477-1S4SA
CON Modul, 1x Glasfaser, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio
R477-1SESA
CON Modul, 1x Glasfaser, 1x DVI-D monitor, single-link, 2x USB-HID, USB 2.0 embedded, analog audio
R477-1SHS
CON module, 1x Fiber, 1x DVI-D monitor, single-link, 2x USB-HID
R477-1SUS
CON module, 2x Fiber, 1x DVI-D monitor, single-link, 2x USB-HID, 4x USB 2.0
R477-2S4S
CON module, 2x Fiber, 2x DVI-D monitors, single-link, 4x USB-HID
CON Unit: Fiber XV
R477-1S4XA
CON module, 1x Fiber XV, 1x DVI-D monitor, single-link, 4x USB-HID, analog audio
R477-1SEXA
CON module, 1x Fiber XV, 1x DVI-D monitor, single-link, 2x USB-HID, USB 2.0 embedded, analog audio
R477-1SHX
CON module, 1x Fiber XV, 1x DVI-D monitor, single-link, 2x USB-HID
R477-1SUX
R477-1SUX
R477-2S4X
CON module, 2x Fiber XV, 2x DVI-D monitors, single-link, 4x USB-HID
CPU Unit: Cat X
L477-1S4CA
CPU module, 1x Cat X, 1x DVI-D monitor, single-link, 4x USB-HID, analog audio
L477-1SECA
CPU module, 1x Cat X, 1x DVI-D monitor, single-link, 2x USB-HID, USB 2.0 embedded, analog audio

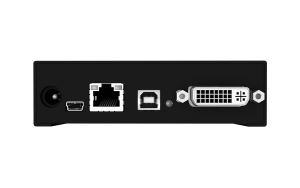

L477-1SHC
CPU module, 1x Cat X, 1x DVI-D monitor, single-link, 2x USB-HID
L477-1SHCV
CPU module, 1x Cat X, 1x DVI-D monitor, single-link, 2x USB-HID, DVI-I (VGA) input

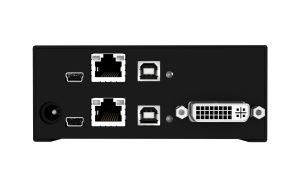

L477-1SUC
CPU module, 2x Cat X, 1x DVI-D monitor, single-link, USB-HID, USB 2.0

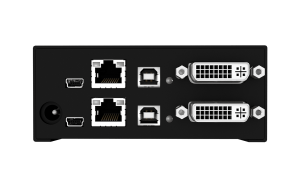

L477-2S4C
CPU module, 2x Cat X, 2x DVI-D monitors, single-link, 4x USB-HID
CPU-Unit: Fiber (1Gbit/s)
L477-1S4SA
CPU module, 1x Fiber, 1x DVI-D monitor, single-link, 4x USB-HID, analog audio
L477-1SESA
CPU module, 1x Fiber, 1x DVI-D monitor, single-link, 2x USB-HID, USB 2.0 embedded, analog audio

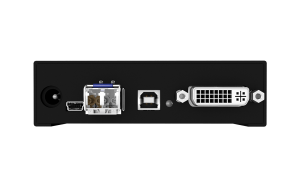

L477-1SHS
CPU module, 1x Fiber, 1x DVI-D monitor, single-link, 2x USB-HID
L477-1SHSV
CPU module, 1x Fiber, 1x DVI-D monitor, single-link, 2x USB-HID, DVI-I (VGA) input

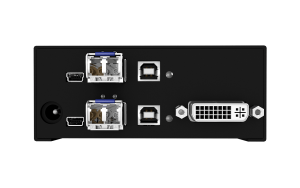

L477-1SUS
CPU module, 2x Fiber, 1x DVI-D monitor, single-link, USB-HID, USB 2.0

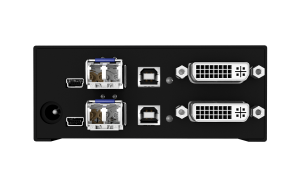

L477-2S4S
CPU module, 2x Fiber, 2x DVI-D monitors, single-link, 4x USB-HID
CPU-Unit: Fiber XV
L477-1S4XA
CPU module, 1x Fiber XV, 1x DVI-D monitor, single-link, 4x USB-HID, analog audio
L477-1SEXA
CPU module, 1x Fiber XV, 1x DVI-D monitor, single-link, 2x USB-HID, USB 2.0 embedded, analog audio
L477-1SHX
CPU module, 1x Fiber XV, 1x DVI-D monitor, single-link, 2x USB-HID
L477-1SHXV
CPU module, 1x Fiber XV, 1x DVI-D monitor, single-link, 2x USB-HID, DVI-I (VGA) input
L477-1SUX
CPU module, 2x Fiber XV, 1x DVI-D monitor, single-link, USB-HID, USB 2.0
L477-2S4X
CPU module, 2x Fiber XV, 2x DVI-D monitors, single-link, 4x USB-HID
Rack Mount Hardware and Mounting Plates
455-4G
19” rack mount kit for 1-4 Single-Head devices without additional modules
455-4K
Mounting plate to mount by screws
455-5K
Mounting plate to mount by snap-on
455-8G
19” rack mount kit for 1-4 devices, for all other Draco compact extenders
455-PS
19” power supply for up to 3 devices
Cables and optional Accessoires
260-5G
International power supply 100 – 240VAC/5VDC (spare part for KVM units)
477-VESA
VESA mounting plate to mount by screws
System Diagram
