ICRON USB 3-2-1 Raven

Allowing users to extend all USB 3.1 Gen 1 (5 Gbit/s) device types as well as USB 2.0 and 1.1 devices across a point-to-point connection.

Supporting all USB 3.1, 2.0, 1.1 devices

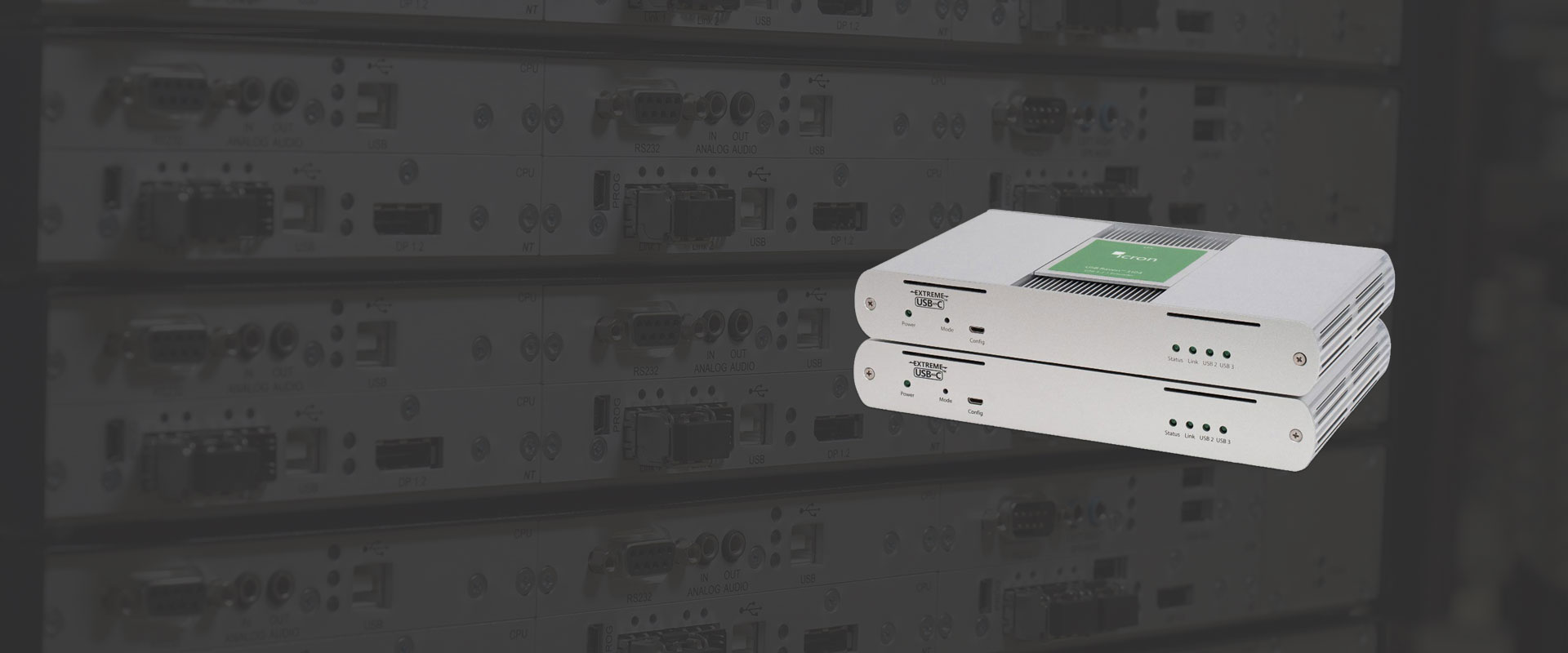

ICRON USB 3-2-1 Raven (Series 417)

The Icron USB 3-2-1 Raven™ is the world’s first and only USB 3.1 extender allowing users to extend all USB 3.1 Gen 1 (5 Gbit/s) device types as well as USB 2.0 and 1.1 devices across a point-to-point connection up to 100 m over a single Cat 6a/7 cable. This is an ideal USB 3.1 extender solution for conference rooms using USB 3.1 conference cameras.

The Raven has been successfully tested with most major USB 3.1 conference cameras in conjunction with major web conferencing applications.

This 4-port USB 3.1 extender supports data rates at up to 5 Gbit/s and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, Linux® and Chrome OS™. Additionally, this ExtremeUSB-C™ based USB 3.1 extender system is FCC/CE Class B certified and, being backward compatible, is ideal for use with all USB peripherals in addition to USB 3.1 conference cameras including: flash drives, hard drives, keyboards, mice, interactive white boards, touchscreens, docking stations, USB to video converters, audio devices, and any other USB 3, 2 and 1 device.

Product Features

ICRON USB 3-2-1 Raven (Series 417)
  • USB 3.1 Gen 1 data rate up to 5 Gbit/s

  • Supporting all USB 3.1, 2.0, 1.1 devices

  • Up to 1.2 A (6W) per USB port

  • 100/1000 Mbps Ethernet channel; LAN pass-through

  • Point-to-point connection

ICRON USB 3-2-1 Raven Inquiry

For personalized insights and dedicated support, explore our additional resources.

Specifications

ICRON USB 3-2-1 Raven (Series 417)
USB Speed
USB 3.1: up to 5 Gbit/s
USB 2.0: up to 480 Mbit/s
USB 1.1: up to 12 Mbit/s
Maximum Cable Distance
Cat X up to 100 m
Multi-mode fiber up to 200 m
Enclosure Material
Silver anodized aluminium
Dimensions
137.3 x 232.1 x 33.0 mm
(5.4 x 9.1 x 1.3 inch)

System Diagrams

ICRON USB 3-2-1 Raven (Series 417)

Downloads

ICRON USB 3-2-1 Raven (Series 417)

ICRON USB 3-2-1 Raven 3104 - Data Sheet

Download

ICRON USB 3-2-1 Raven 3124 - Data Sheet

Download

Part-No.

ICRON USB 3-2-1 Raven (Series 417)
  • Devices

    K417-7C

    ICRON USB 3-2-1 Raven 3104 USB 3.1 extender, Cat X

    K417-7M

    ICRON USB 3-2-1 Raven 3124 USB 3.1 extender, multi-mode fiber
