The Draco vario IP Gateway consoles provide seamless integration into Draco tera KVM matrix applications via IP network infrastructure.
The Draco vario IP Gateway consoles provide seamless integration into Draco tera KVM matrix applications via IP network infrastructure. Instead of using dedicated Cat X or fi ber optic links, the
new IP based consoles make use of Gigabit Ethernet topologies, allowing for more flexibility accessing via Draco tera KVM matrix switches attached target computers. KVM connections with up to 4K30 resolutions single head or 1920 x 1200 dual head are supported across 1G IP connections in real-time.
Since the core KVM matrix system still is based on easy to setup proprietary connectivity, it is way easier to provide individual consoles flexible IP access. Requirements on the network infrastructure are a sufficient bandwidth and low latency for maintaining the highest performance. Complexity such as Multicast, IGMP, Jumbo Frames are not to worry about, thanks to the hybrid KVM architecture.

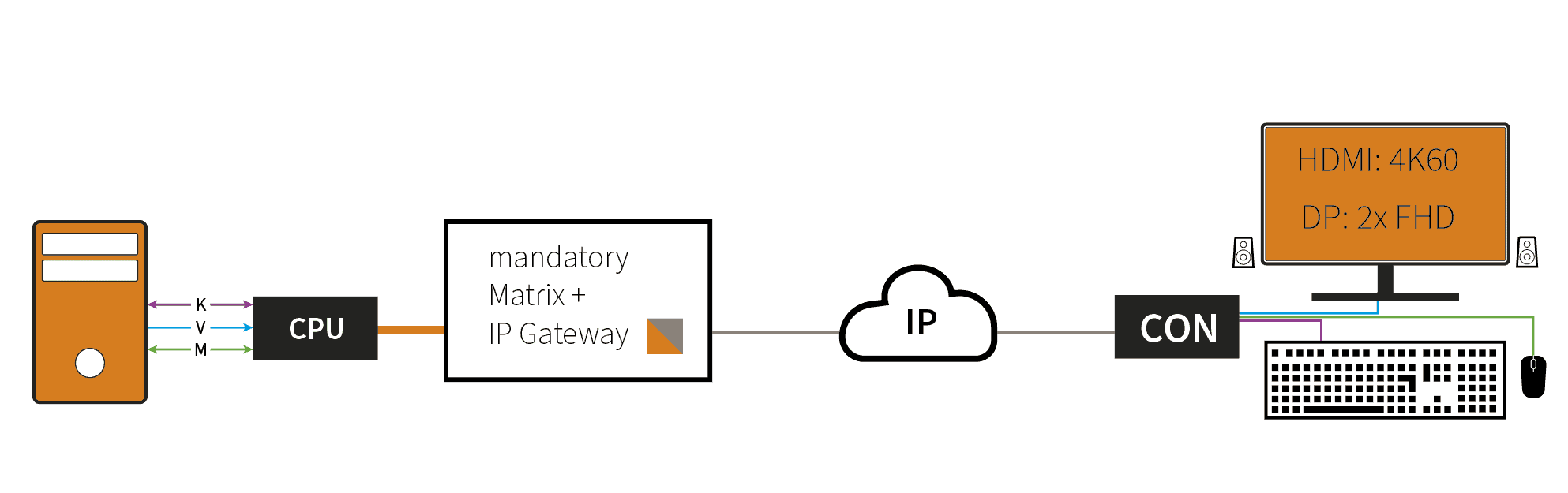

To integrate a Draco vario IP Gateway CON into an already operational KVM system, users only need a Draco tera enterprise or Draco tera flex matrix switching system with an IP Gateway interface and 1G/10G network infrastructure. This hybrid KVM setup with its mix of proprietary and IP connected endpoints offers completely new levels of fl exibility and connectivity.
Single Head 4K30
Realtime KVM Access via 1G IP networks
to Draco tera matrix systems
Compatible to existing Draco tera installs via Draco tera IP Gateway
Local feed through port to attach a PC
Compatible with all Draco vario chassis solutions
