The new Draco tera flex matrix switch delivers an even higher level of  performance, with enhanced flexibility, modularity, scalability and  functionality.

Product Details
Specifications
Part Numbers
Downloads
System Diagram
Configurator

Product Information

Product
Information

Draco tera flex (Series 480)

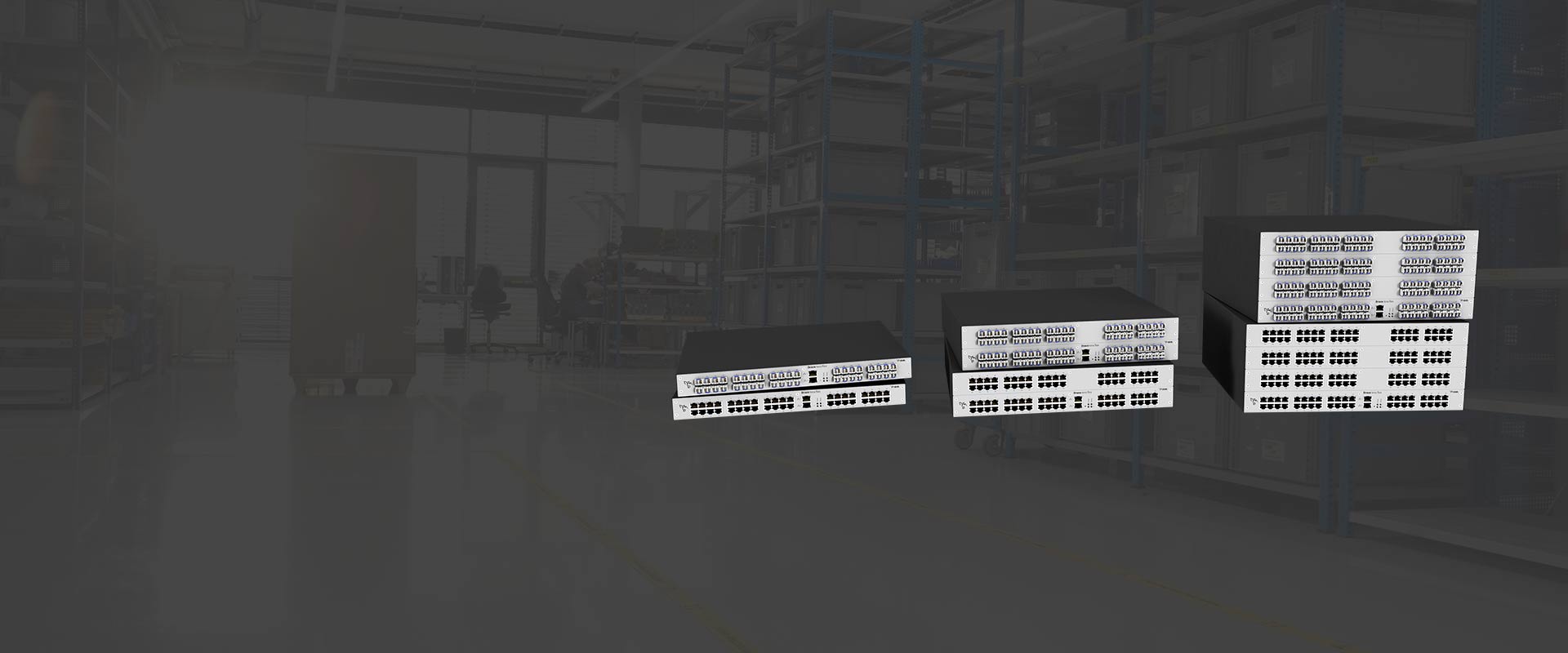

The Draco tera flex matrix switching series with its compact size of 1, 2 or 4RU and up to 160 Flex-Ports is designed to support both small to midsize applications as well as large ones.
With its capability to facilitate 1G and 3G technology within a single frame as well as Cat X and fiber interfaces, it supports modern applications with a mix of 2K and 4K in very economic way. Custom design chassis even allow for future field upgradability scaling a system from 40-Port to 80-Port or even 160-Port completely non-blocking.

Grid connectivity
With its 10G Grid option Draco tera flex can act as a nice satellite to a core enterprise system using the least amount of infrastructure building a deployed homogeneous large matrix grid.

Ease of setup
By simply connecting the extender to the chassis, the internal control software will recognize and auto-configure the port as a CPU or console device. This Flex-Port technology provides a huge time saving for system installers who normally have to pre-configure ports to specific I/O requirements. The system supports also instant switching technology. With incredible speed, switching between sources is glitch-free and instantaneous thus reducing eye strain and annoying video tearing found with other systems. Where centralized switching of KVM is necessary, the Draco tera flex is the perfect KVM solution. It is especially suited for factory floor automation control systems, production studios, OB Vans, and command and control environments.

Compatibility
Draco tera flex is compatible with all Draco vario extenders. All that needs to be taken care of is correct link speed and interface of the used endpoints and their Codec version. Draco tera flex is already prepared for future backward compatibility of Draco vario ultra CON units to Draco vario CPUs.

Product Features

Product
Features

Draco tera flex (Series 480)
  • Features compatible to current Draco tera enterprise series and those with new Controller Card
    – SNMPv3, LDAPS
    – O/S v04.x support for multilingual OSD /Chinese, German, French, Spanish, …)
    – encrypted communication for API, Tool and Grid, individual routing of protocols
    – faster boot up
    – improved Grid integration (faster & more reliable communication) incl. Grid module
  • Variations with Cat X and fiber as well as 1G, 3G possible – also mixed is possible
  • Prepared for upcoming 1G/3G compatibility, IPv6
  • Internal modular concept allows for scalability and maintenance (similar to Draco major series)
  • Compatible to all Draco vario  and Draco vario ultra extenders
  • Redundant Power supply unit and Network interface connections
  • Versatility: With only 3 types of chassis and only 5 types of I/O modules, an almost endless number of customer specific Draco tera flex matrix switches are possible
  • Replaces current Draco tera compact series – the 8-port compact switch will still be available as an entry-level variant for smaller KVM installations

Modular Concept

Modular
Concept

Draco tera flex (Series 480)
  • Start with a 40-Port Matrix with the scalability of up to 80 ports non-blocking (2 RU)
  • Start with a 40-Port Matrix with the scalability of up to 160 ports non-blocking (4 RU)
  • Mix & match Cat X and Fiber in a variety of options
  • Mix & match 1G and 3G (4K60) interface in a variety of options
  • Offers almost Draco tera enterprise flexibility and scalability at compact size and price
  • All versions with integrated Dual PSU and Dual NIC

Technical Data

Draco tera flex (Series 480)
Input / Output
16x - 160x Cat X or fiber (any combination)
2x RJ-45 Gigabit Ethernet
Supported signals
DisplayPort, HDMI, DVI-D, DVI-I, USB 2.0, USB-HID, RS232, RS422, analog / digital or balanced audio, SDI
via Draco vario extenders
Maximum cable
distance
Cat X: 140 m
Cat X 3G: 100 m
Single-Mode Fiber (9 μm): 10.000 m
Single-Mode Fiber 3G (9 μm): 5.000 m
Multi-Mode Fiber (50 μm, OM3): 1.000 m
Multi-Mode Fiber (50 μm): 400 m
Control
OSD (On Screen Display), Draco tera Tool (Java), API
1RU
2RU
4RU
Power
100-240V 3A 50/60Hz
100-240V 4A 50/60Hz
100-240V 5.8A 50/60Hz
Dimensions (mm)
44 x 442 x 449
90 x 442 x 449
177 x 442 x 449
Weight
approx. 7,7 kg
approx. 11 kg
approx. 19 kg
Suitable extenders
Compatible to all Draco / Draco vario extenders: https://www.ihse.com/kvm-extender/

Part-No.

Draco tera flex (Series 480)
Cat X & Cat X 3G

K480-C16

Draco tera flex KVM matrix 16 ports, Cat X 1G

K480-C24

Draco tera flex KVM matrix 24 ports, Cat X 1G

K480-C32

Draco tera flex KVM matrix 32 ports, Cat X 1G

K480-C40

Draco tera flex KVM matrix 40 ports, Cat X 1G

K480-C48

Draco tera flex KVM matrix 48 ports, Cat X 1G

K480-C64

Draco tera flex KVM matrix 64 ports, Cat X 1G

K480-C80

Draco tera flex KVM matrix 80 ports, Cat X 1G

K480-C120

Draco tera flex KVM matrix 120 ports, Cat X 1G

K480-C128

Draco tera flex KVM matrix 128 ports, Cat X 1G

K480-C144

Draco tera flex KVM matrix 144 ports, Cat X 1G

K480-C160

Draco tera flex KVM matrix 160 ports, Cat X 1G

K480-CX16

Draco tera flex KVM matrix 16 ports, Cat X 3G

K480-CX24

Draco tera flex KVM matrix 24 ports, Cat X 3G

K480-CX32

Draco tera flex KVM matrix 32 ports, Cat X 3G

K480-CX40

Draco tera flex KVM matrix 40 ports, Cat X 3G

K480-CX48

Draco tera flex KVM matrix 48 ports, Cat X 3G

K480-CX64

Draco tera flex KVM matrix 64 ports, Cat X 3G

K480-CX80

Draco tera flex KVM matrix 80 ports, Cat X 3G

K480-CX120

Draco tera flex KVM matrix 120 ports, Cat X 3G

K480-CX128

Draco tera flex KVM matrix 128 ports, Cat X 3G

K480-CX144

Draco tera flex KVM matrix 144 ports, Cat X 3G

K480-CX160

Draco tera flex KVM matrix 160 ports, Cat X 3G

K480-F16

Draco tera flex KVM matrix 16 ports, fiber 1G

K480-F24

Draco tera flex KVM matrix 24 ports, fiber 1G

K480-F32

Draco tera flex KVM matrix 32 ports, fiber 1G

K480-F40

Draco tera flex KVM matrix 40 ports, fiber 1G

K480-F48

Draco tera flex KVM matrix 48 ports, fiber 1G

K480-F64

Draco tera flex KVM matrix 64 ports, fiber 1G

K480-F80

Draco tera flex KVM matrix 80 ports, fiber 1G

K480-F120

Draco tera flex KVM matrix 120 ports, fiber 1G

K480-F128

Draco tera flex KVM matrix 128 ports, fiber 1G

K480-F144

Draco tera flex KVM matrix 144 ports, fiber 1G

K480-F160

Draco tera flex KVM matrix 160 ports, fiber 1G

K480-FX16

Draco tera flex KVM matrix 16 ports, fiber 3G

K480-FX24

Draco tera flex KVM matrix 24 ports, fiber 3G

K480-FX32

Draco tera flex KVM matrix 32 ports, fiber 3G

K480-FX40

Draco tera flex KVM matrix 16 ports, fiber 3G

K480-FX48

Draco tera flex KVM matrix 48 ports, fiber 3G

K480-FX64

Draco tera flex KVM matrix 64 ports, fiber 3G

K480-FX80

Draco tera flex KVM matrix 80 ports, fiber 3G

K480-FX120

Draco tera flex KVM matrix 120 ports, fiber 3G

K480-FX128

Draco tera flex KVM matrix 128 ports, fiber 3G

K480-FX144

Draco tera flex KVM matrix 144 ports, fiber 3G

K480-FX160

Draco tera flex KVM matrix 160 ports, fiber 3G

K480-C24F16

Draco tera flex KVM matrix 40 ports, hybrid 1G

K480-C24F40

Draco tera flex KVM matrix 64 ports, hybrid 1G

K480-C40F24

Draco tera flex KVM matrix 64 ports, hybrid 1G

K480-C40F40

Draco tera flex KVM matrix 80 ports, hybrid 1G

K480-C80F40

Draco tera flex KVM matrix 120 ports, hybrid 1G

K480-C80F80

Draco tera flex KVM matrix 160 ports, hybrid 1G

K480-C120F40

Draco tera flex KVM matrix 160 ports, hybrid 1G

K480-CX24FX16

Draco tera flex KVM matrix 40 ports, hybrid 3G

K480-CX24FX40

Draco tera flex KVM matrix 64 ports, hybrid 3G

K480-CX40FX24

Draco tera flex KVM matrix 64 ports, hybrid 3G

K480-CX40FX40

Draco tera flex KVM matrix 80 ports, hybrid 3G

K480-CX80FX40

Draco tera flex KVM matrix 120 ports, hybrid 3G

K480-CX80FX80

Draco tera flex KVM matrix 160 ports, hybrid 3G

K480-CX120FX40

Draco tera flex KVM matrix 160 ports, hybrid 3G

K480-C32G

Draco tera flex KVM matrix 32 ports + Grid, Cat X 1G

K480-F32G

Draco tera flex KVM matrix 32 ports + Grid, fiber 1G

K480-C40-2RU

Draco tera flex KVM matrix 40 ports, custom design 2RU, Cat X 1G

K480-F40-2RU

Draco tera flex KVM matrix 40 ports, custom design 2RU, fiber 1G

K480-C24F16-2RU

Draco tera flex KVM matrix 40 ports, custom design 2RU, hybrid 1G

K480-CX40-2RU

Draco tera flex KVM matrix 40 ports, custom design 2RU, Cat X 3G

K480-FX40-2RU

Draco tera flex KVM matrix 40 ports, custom design 2RU, fiber 3G

K480-CX24FX16-2RU

Draco tera flex KVM matrix 40 ports, custom design 2RU, hybrid 3G

K480-C32G-2RU

Draco tera flex KVM matrix 32 ports + Grid, custom design 2RU, Cat X 1G

K480-F32G-2RU

Draco tera flex KVM matrix 32 ports + Grid, custom design 2RU, fiber 1G

K480-C40-4RU

Draco tera flex KVM matrix 40 ports, custom design 4RU, Cat X 1G

K480-F40-4RU

Draco tera flex KVM matrix 40 ports, custom design 4RU, fiber 1G

K480-C24F16-4RU

Draco tera flex KVM matrix 40 ports, custom design 4RU, hybrid 1G

K480-CX40-4RU

Draco tera flex KVM matrix 40 ports, custom design 4RU, Cat X 3G

K480-FX40-4RU

Draco tera flex KVM matrix 40 ports, custom design 4RU, fiber 3G

K480-CX24FX16-4RU

Draco tera flex KVM matrix 40 ports, custom design 4RU, hybrid 3G

K480-C32G-4RU

Draco tera flex KVM matrix 32 ports + Grid, custom design 4RU, Cat X 1G

K480-F32G-4RU

Draco tera flex KVM matrix 32 ports + Grid, custom design 4RU, fiber 1G

Downloads

Draco tera flex (Series 480)
data sheet
Manual
Conformity
Quick-Setup

Related Links

Chassis & Accessories
Add-On Modules

Functional Diagram

Functional
Diagram

Draco tera flex (Series 480)

Video

Video

Draco tera flex (Series 480)
