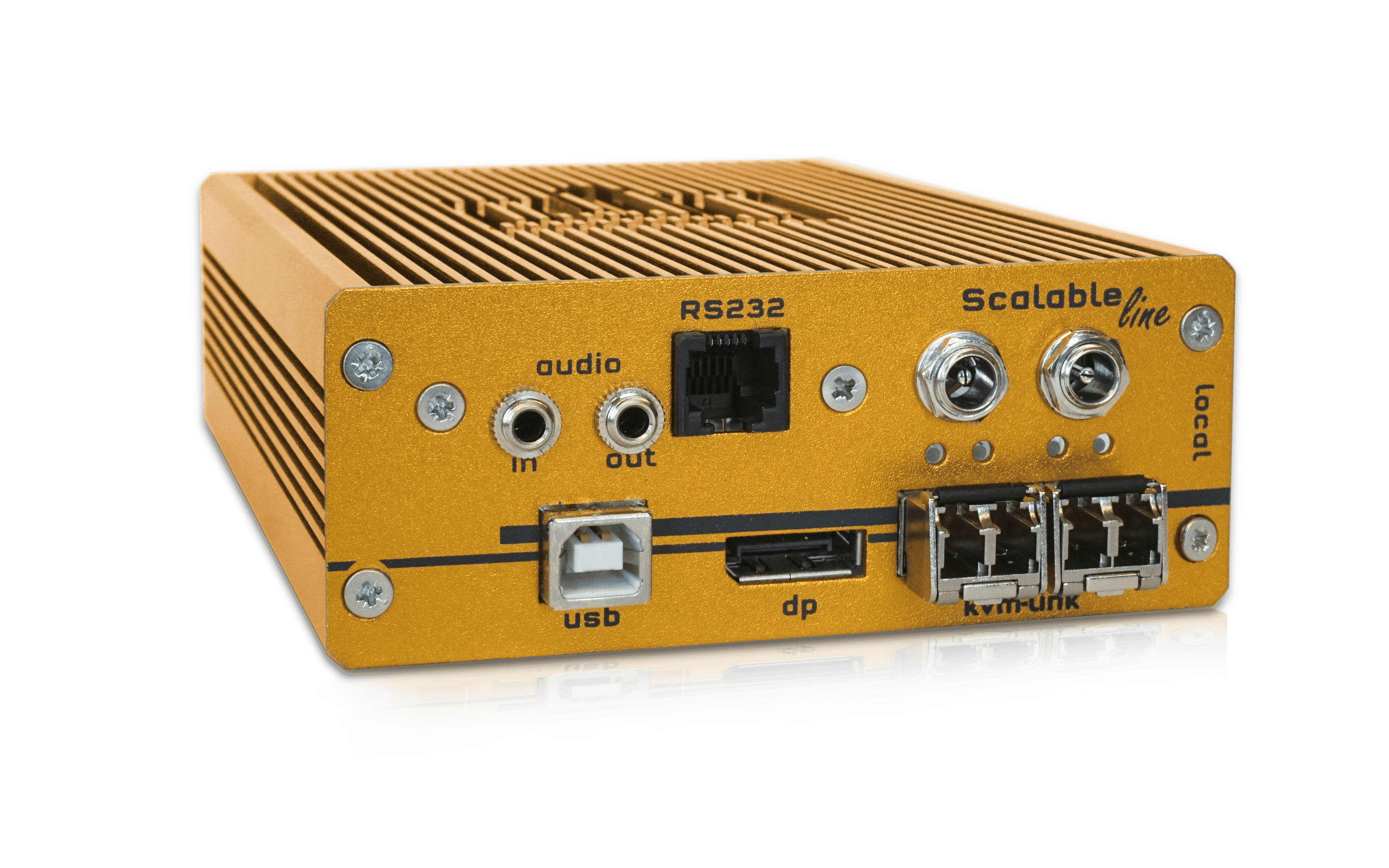

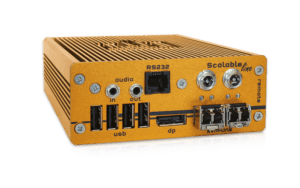

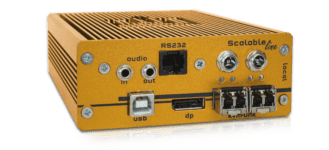

Scalableline 4K – is a Displayport 1.2 extender remote or local over IP in fiber covering a range of up to 300 m at a resolution of 4096 x 2160 @ 60 Hz (5K 5120 x 1440) with a perfect color coding with 4:4:4 @ 8 bit per color. Scalableline provides KVM extension in realtime over IP networks, while combining it with multiviewing out of the box.
A typical Scalableline setup consists of a network of multiple Scalableline transmitters, at least a single Scalableline console and a Switching Manager. The Scalableline console can handle up to 16 KVM streams at once and display them on an up to 4K/5K display either in native resolution or scaled down to fit into user-defined layouts. Overall system-generated extension and multiviewing latency is less than 1 ms. Scalable features like cropping (select and scale parts of Images/streams) or PIP (Picture in Picture display and overlapping windows) come along with the freely scalable KVM system.
Resolution up to 4096 x 2160 @ 60 Hz /
Ultra-Widescreen 5120 x 1440 @ 60 Hz
10 Gbit max. bandwidth per link
Combines extension and multiviewing seamlessly
Scales easily in terms of application size
For personalized insights and dedicated support, explore our additional resources.
"*" indicates required fields
Our extension solutions allow you to
connect operator workstations to
remotely-located computers over great distances.
Our KVM matrix switches enable access to, and management of, any size of computer installation.
Freely Scalable
Multiviewing
Ergonomic
Compatible & Flexible
Up- & Downscaling
Individual
