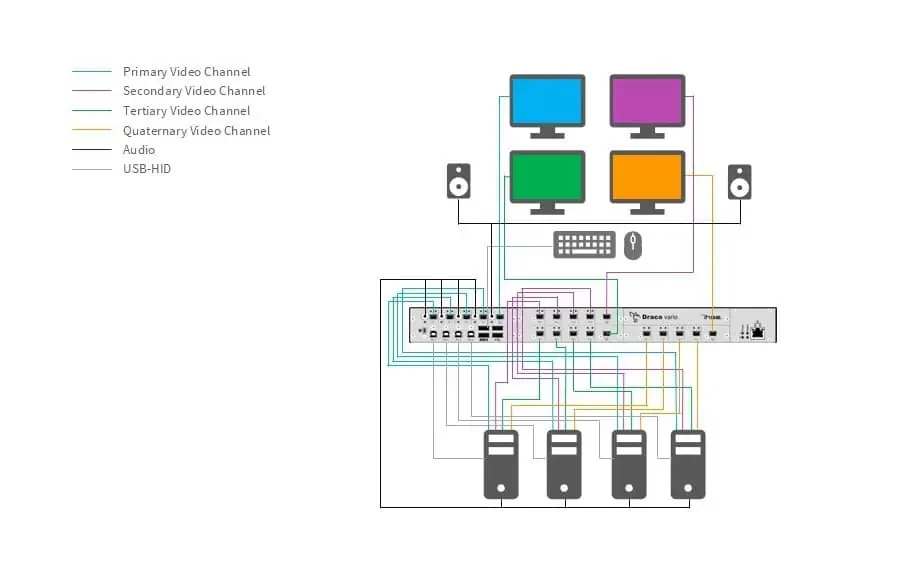

System Diagramm
Downloads
Part Numbers
Configurator

Draco DisplayPort KVM Switch

Draco DisplayPort KVM Switch (Series DPS41)

Application Scenarios
The Draco DisplayPort KVM Switch DPS41 allows for homogeneous combinations of extension and simple desktop switching mainly for visualization scenarios in air traffic control and air traffic management (ATC & ATM) and also for other alike applications,
including 4:1 Single Head, Dual Head, Triple Head and Quad Head.

Space-efficient & Modulars
Even with Multi Head, the new Draco DisplayPort KVM Switch fits in 1RU and offers built-in extender options.

Audio Features
The Draco DP KVM Switch supports embedded digital audio with each DP interface. For analog stereo audio line-out, the DPS41 module provides a 3.5 mm jack.

Expandability & Variability
Using the Backplane powered chassis with IP management interface, customization and hot-plugable and hot-swapable multi head versions can easily be configured. Basis for all custom cofigurations is the USB-Switch module for keyboard, mouse and USB2.0 connectivity.
Dry contact switching module and video switch modules can then be added as required. Also extender modules can be added for space-saving designs in just 1 RU.

Product Features

Draco DisplayPort KVM Switch (Series DPS41)

  • Input: 4x Mini DP; Output: 1x Mini DP per video head

  • Control up to 4 PCs with single mouse and keyboard

  • Video signals can be switched between the sources

  • Supporting DP video signals up to 4K60 resolution

  • Expandable from single head up to 5 video heads

  • Switching via API, Hotkey, mouse control and optional push button control with GPIO

  • USB 2.0 support

  • Compact (1RU) design for the workspace

  • Variable / modular concept with redundant PSU, expandable (MultiHead, GPIO, SNMP)

  • Ergonomic hot-mouse switching of channels

  • Audio support: Board without audio interface supports all audio standards within DP

  • Board with audio interface supports additional unbalanced analog audio

  • Combinable with extenders/matrix systems (series 483 SH / DH and 490)

  • Flexible configurations allowing hot-expand and hotswap

  • Optional equipment: DP and USB cables can be ordered separately

Draco DisplayPort KVM Switch Inquiry

For personalized insights and dedicated support, explore our additional resources.

Contact us now

Specifications

Draco DisplayPort KVM Switch (Series DPS41)
Input

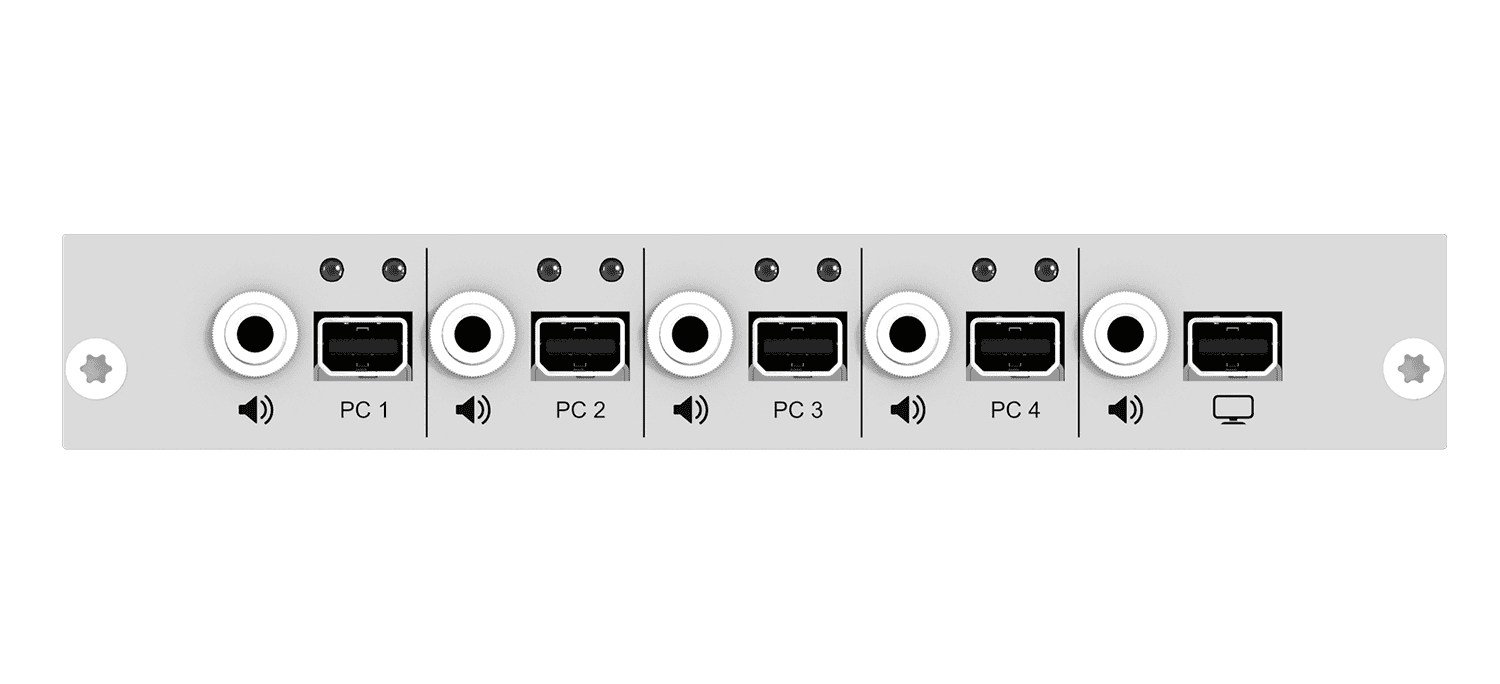

DPS41-B 4x Mini-DP DPS4.1-A-B 4x Mini-DP 4x 3.5 mm audio jack
Output
DPS41-B 1x Mini-DP, max. 4K60/5120 x 1440 @ 60 Hz DPS41-A-B 1x Mini-DP, max. 4K60/5120 x 1440 @ 60 Hz 1x audio (3.5 mm analog)
Audio
Synchronized switching, embedded digital/analog
Maximum resolution
Up to 4096 x 2160 @ 60 Hz (4K DCI) or 3840 x 2160 @ 60 Hz (UHD), color depth 8 bit (4:4:4)
Keyboard/mouse
USB-HID
Optional interfaces
USB-HID, USB 2.0 (max. 480 Mbit/s), Mini-USB, GPIO, RJ45 (interconnect), 3.5 mm Audio interface (analog)
Power supply
Depends on selected chassis
Current draw
Depends on selected chassis
Operating temperature
0 to 45 °C (41 to 113 °F)
Storage temperature
-25 to 60 °C (-13 to 140 °F)
Relative humidity
Max. 80 % non-condensing
Operating altitude
Max. 2,500 m (7,500 ft)
Dimensions
Depends on selected chassis
Weight
Depends on selected chassis

System Diagrams

Draco DisplayPort KVM Switch (Series DPS41)

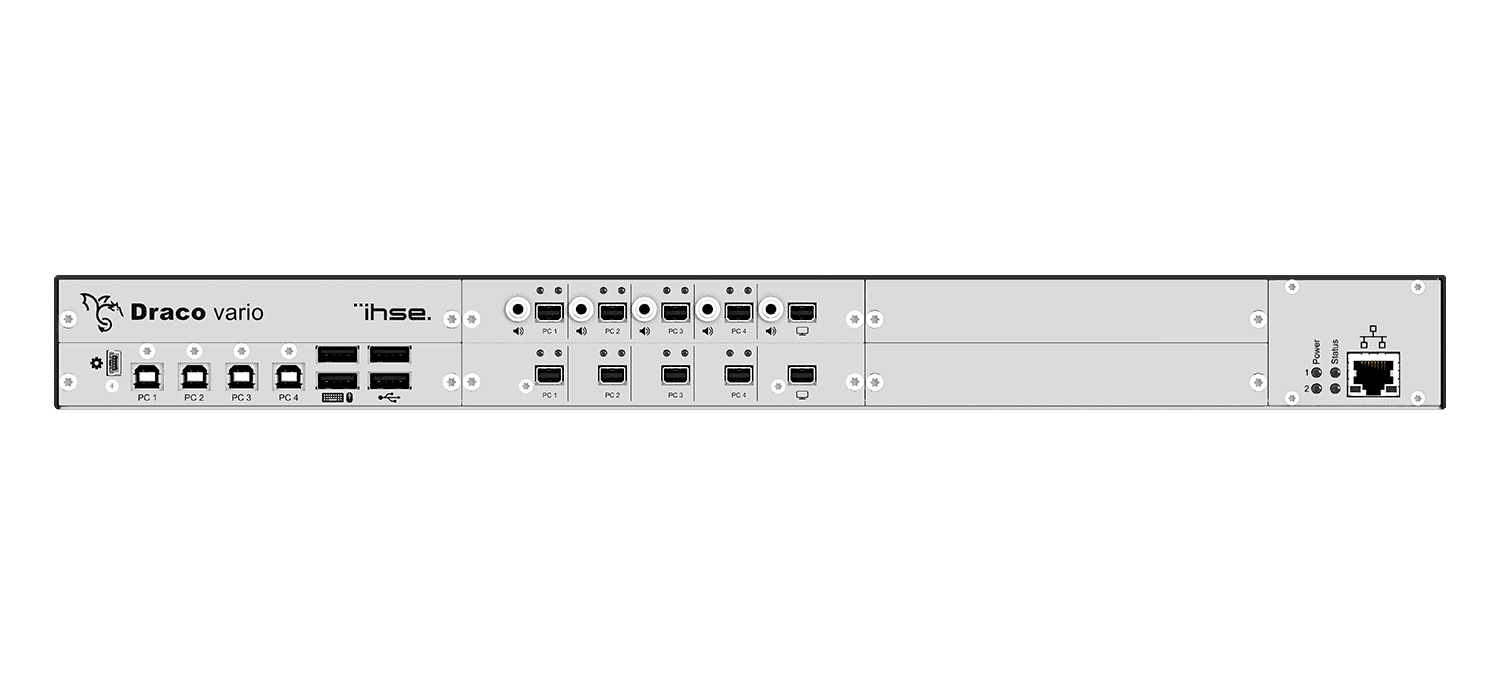

Custom configuration in 474-BODY6BP-SNMP

Downloads

Draco DisplayPort KVM Switch (Series DPS41)

Data sheet

Download

Part-No.

Draco DisplayPort KVM Switch (Series DPS41)

  • Draco DP Switch board for customized variants

    B476-4U4T

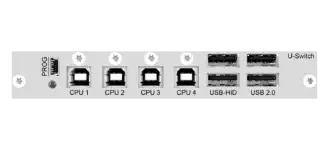

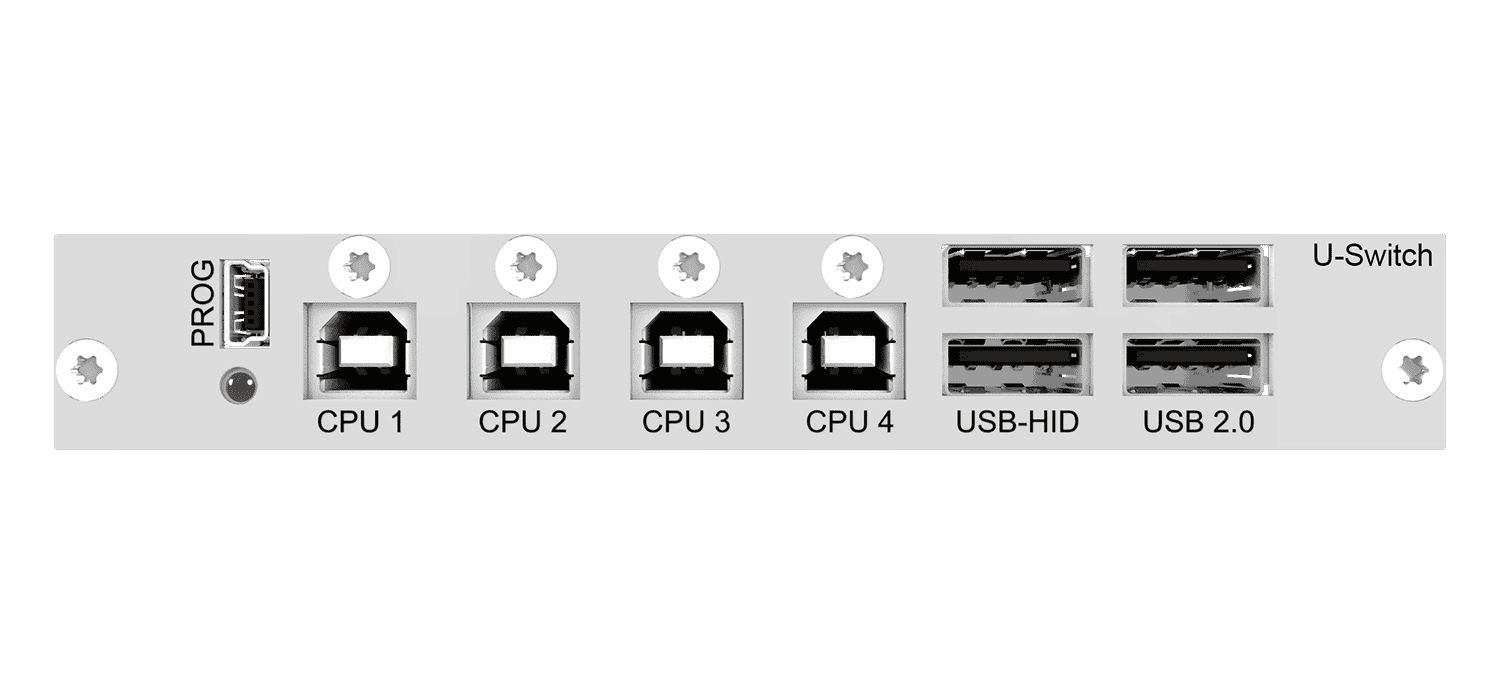

    Draco vario U-Switch module 4x USB-HID, USB 2.0 (mandatory)

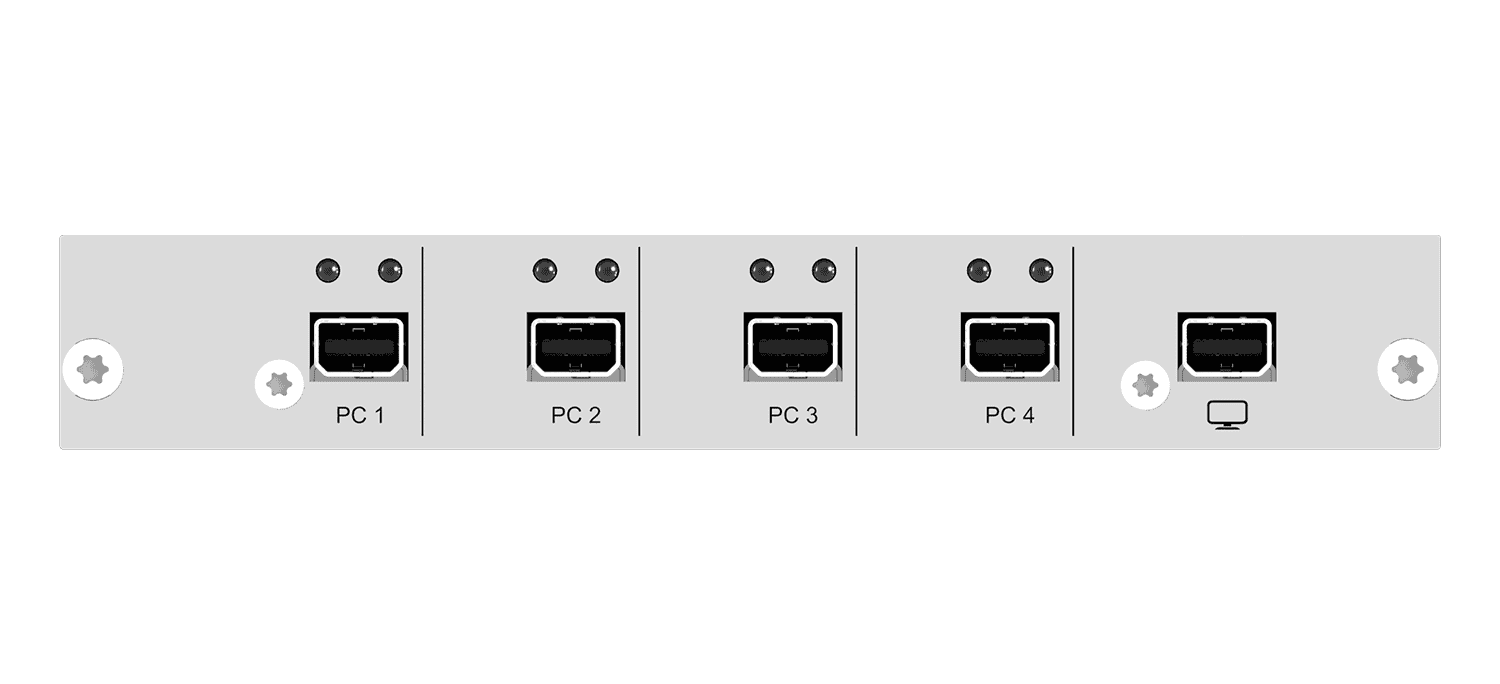

    DPS41-B

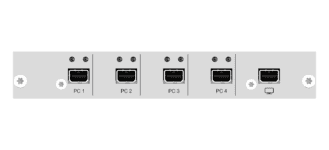

    Draco DisplayPort KVM Switch Board without audio
    DPS41-A-B

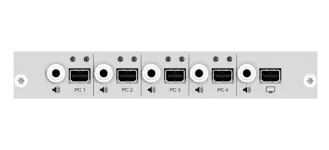

    Draco DisplayPort KVM Switch Board with audio
    R474-BGX

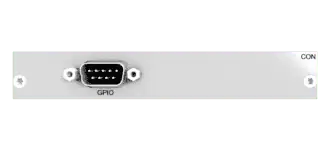

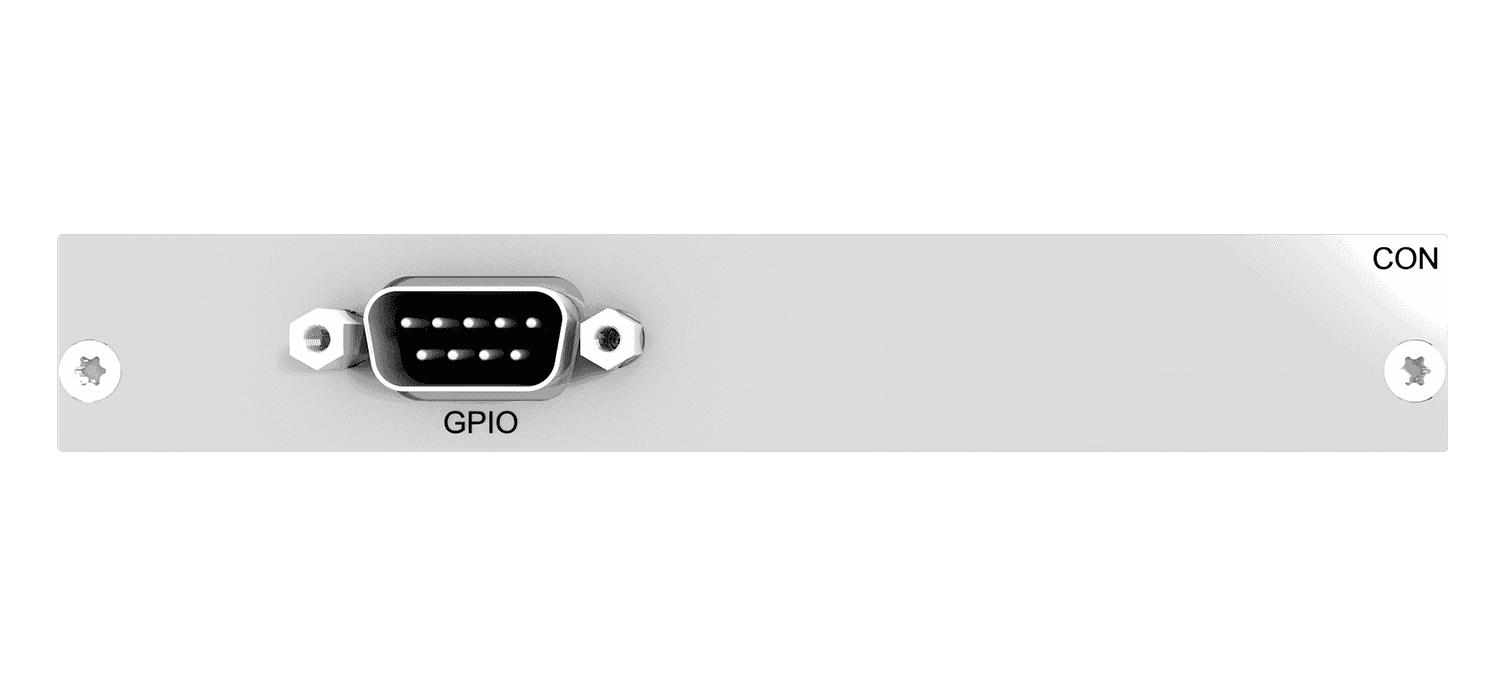

    Draco vario CON add-on module with 8x GPIO

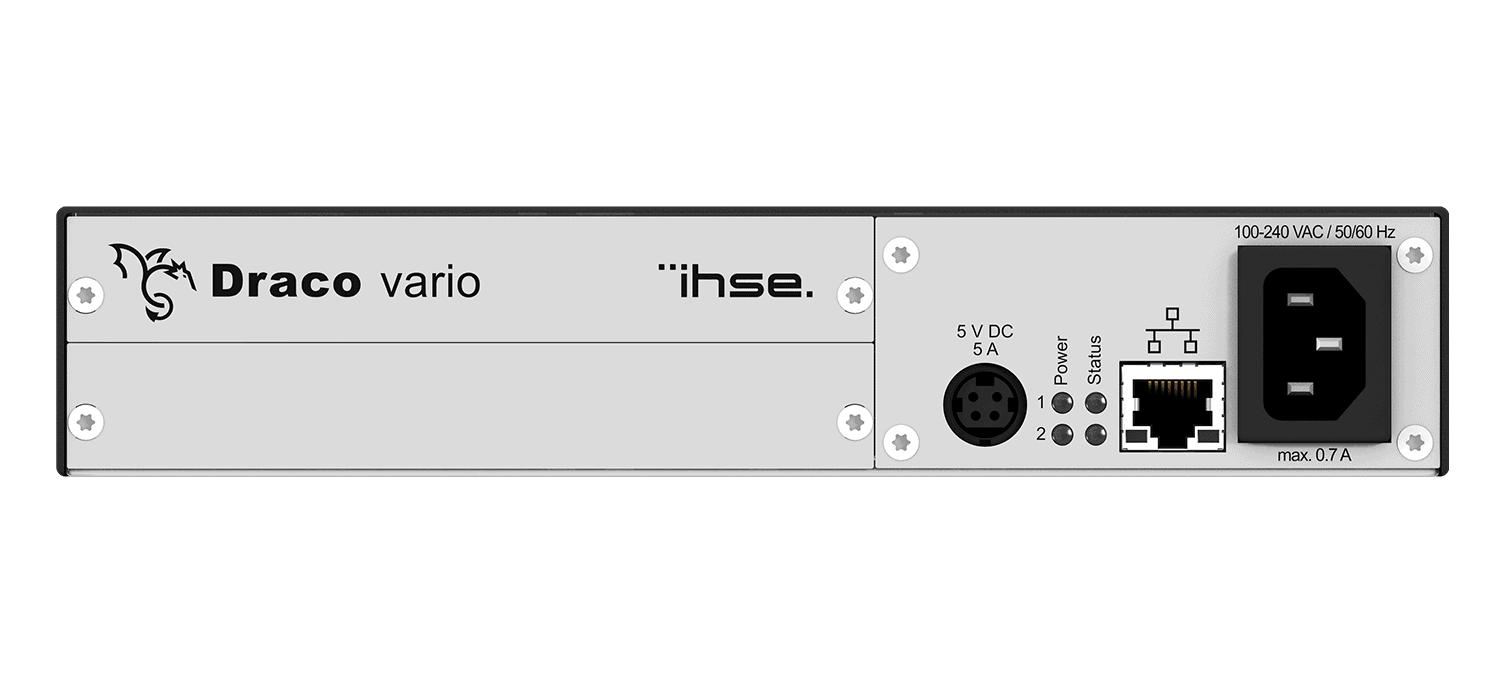

    474-BODY2BPF-SNMP

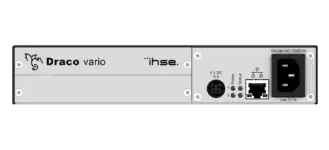

    Slide-In chassis for 2 modules with backplane, integrated IP management

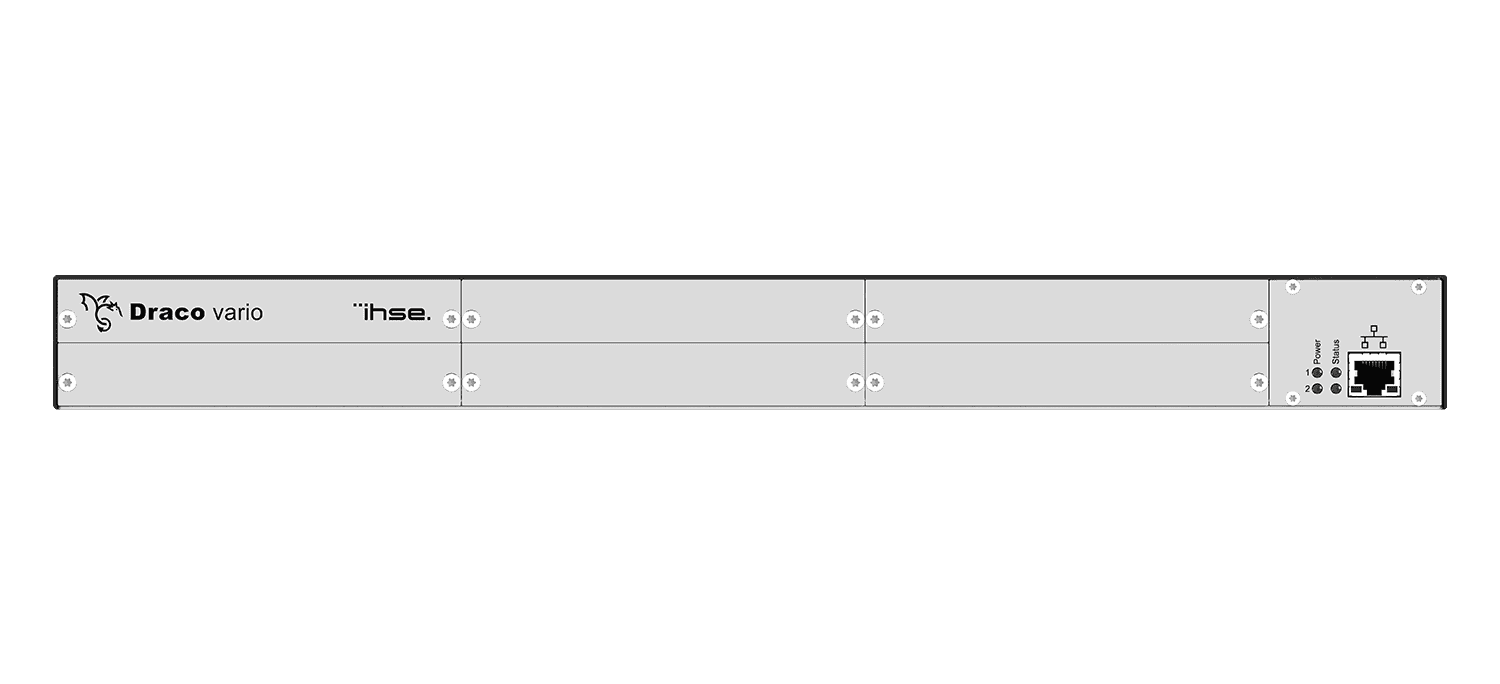

    474-BODY6BP-SNMP
    Slide-In chassis for 6 modules with backplane, integrated IP management

  • Examples for customized configurations - hot-expand, hot-swap, remote monitor and control

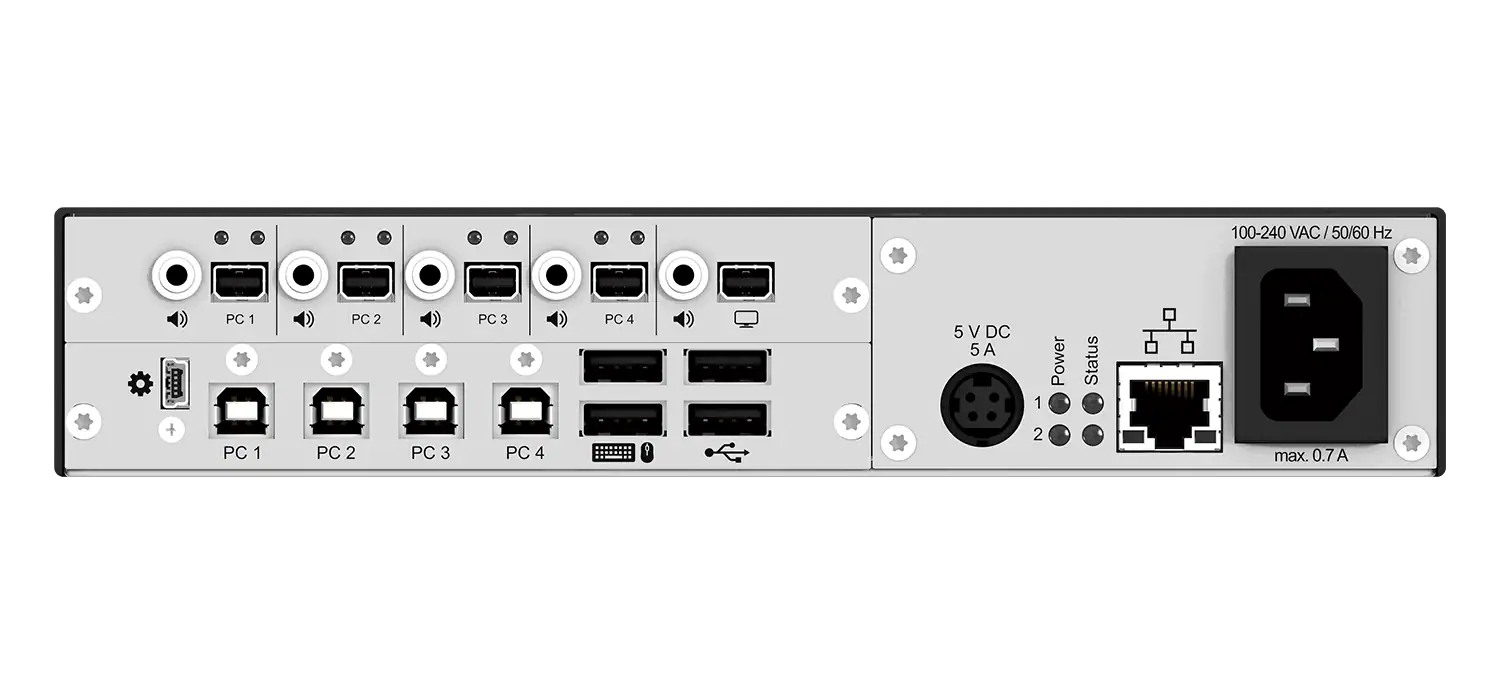

    474-BODY2BPF-SNMP + B476-4U4T + DPS41A-B
    Draco DisplayPort KVMA Switch – Single Head
    474-BODY6BP-SNMP + B476-4U4T + 1x DPS41A-B + 1x DPS41-B
    Draco DisplayPort KVMA Switch – Dual Head

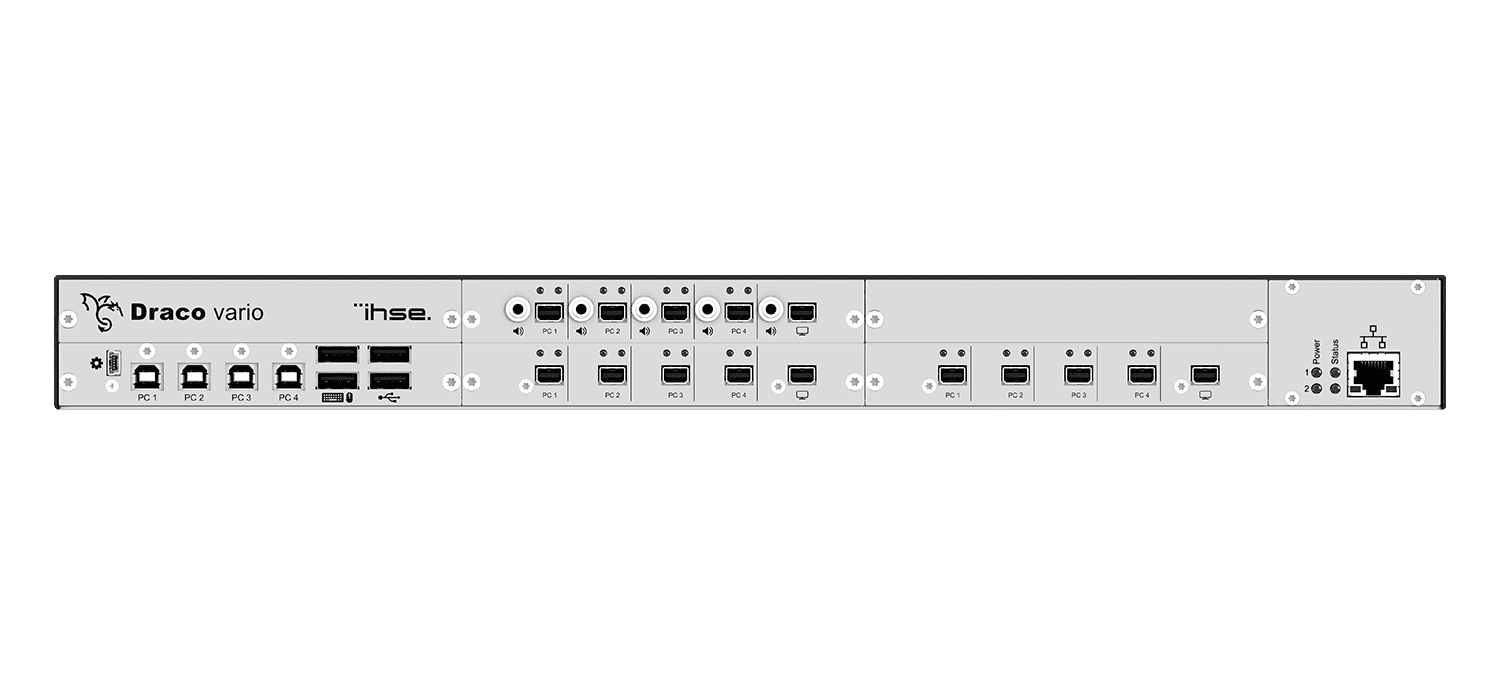

    474-BODY6BP-SNMP + B476-4U4T + 1x DPS41A-B + 2x DPS41-B

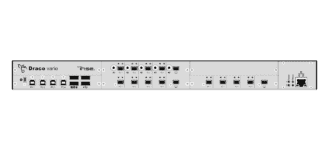

    Draco DisplayPort KVMA Switch – Triple Head
    474-BODY6BP-SNMP + B476-4U4T + 1x DPS41A-B + 3x DPS41-B
    Draco DisplayPort KVMA Switch – Quad Head
