Draco vario ultra DisplayPort 1.1 DH

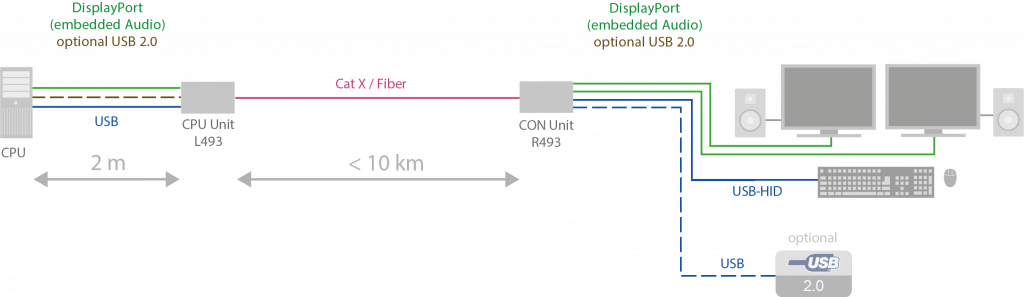

The Draco vario ultra DisplayPort 1.1 Dual-Head extender enables video transmission of two DisplayPort including keyboard and mouse signals over a single duplex fiber optic cable or a Cat X cable and includes keyboard and mouse control. This reduces the complexity of an installation, saves cost, space, cabling and reduces the need for matrix ports in a KVM matrix switch installation.

Product Information

Draco vario ultra DisplayPort 1.1 DH - Series 493

The Draco vario ultra DisplayPort 1.1 Dual-Head KVM extender allows the visually lossless extension of highresolution video and audio signals via the DisplayPort interface. Fully digital video signals can be transmitted in Single-Head operation in 4K resolutions up to 4096 x 2160 (4K DCI) and 3840 x 2160 (UHD). In Dual-Head mode, resolutions of up to 1920 x 1200 pixels per channel are supported.

The embedded audio signal is directly reproduced by the connected displays with integrated speakers. In combination with optional analog or digital audio modules, the stereo signal can be extracted and outputted separately. The Draco vario ultra DisplayPort 1.1 Dual-Head KVM extender is also compatible* with Draco tera KVM matrix systems.

Product Features

Draco vario ultra DisplayPort 1.1 DH - Series 493
  • Operation of a CPU from a remote workstation with two DisplayPort monitors and USB HID devices (keyboard/mouse)
  • Transmission of fully digital video signals up to 4K DCI (4096 x 2160) and UHD (3840 x 2160) up to 30 Hz, color depth 8 bit (4:4:4)
  • The DisplayPort interface can transmit the audio format at a sample rate of up to 192 kHz
  • Intelligent monitor EDID management
  • Optional: Redundant connections for 24/7 availability
  • Compatibility with all common operating systems (Linux, Unix, Windows, Mac OS) and Draco vario chassis
  • Compatible* with IHSE Draco tera KVM matrix systems, all add-on modules of the Draco vario extender series
    for audio and data signals such as USB or RS232
  • No frame drops, lossless image compression
  • Synchronous video transmission in multihead applications, full 60 fps, Low-Latency Mode

*Draco vario ultra CONs can be coupled with either Draco vario or Draco vario ultra CPUs (expected 11/2020). But Draco vario CONs only support connectivity to Draco vario CPUs.

Specifications

Draco vario ultra DisplayPort 1.1 DH - Series 493
Input
Primary channel: 1x DisplayPort 1.1
Secondary channel: 1x Mini DisplayPort 1.1
Output
Primary channel: 1x DisplayPort 1.1
Secondary channel: 1x Mini DisplayPort 1.1
Audio (embedded)
Stereo Linear Pulse Code Modulation (LPCM), DTS, DTS-HD (5.1), Dolby Digital, Dolby Digital Plus (5.1)
Maximum Resolution
Single-Head operation
(primary channel)
1920 x 1080 @ 120 Hz (reduced blanking)
1920 x 1200 @ 120 Hz (normal blanking)
2560 x 1440 @ 60 Hz (normal blanking)
3840 x 2160 @ 30 Hz - UHD (reduced blanking)
4096 x 2160 @ 30 Hz - 4K DCI (reduced blanking)
Dual-Head operation
(primary and secondary channel)
1920 x 1080 @ 60 Hz (reduced blanking)
1920 x 1200 @ 60 Hz (reduced blanking)
Keyboard / Mouse
USB-HID
Interfaces with optional add-on modules
USB 2.0 embedded (36, 50/100 or 480 Mbit/s), USB-HID, PS/2, analog audio with RS232 or RS422, digital audio, balanced audio.
Suitable add-on modules under the following link: https://www.ihse.com/add-on-modules/
Maximum transmission range for video and USB-HID signals (end-to-end connection)
Cat X: 140 m (459 ft)
Single-Mode 9μm: 10,000 m (32,808 ft)
Single-Mode 9μm XV: 5,000 m (16,404 ft)
Multi-Mode 50μm (OM3): 1,000 m (3,280 ft)
Multi-Mode 50μm: 400 m (1,312 ft)
Power Supply
Power supply via the used Draco vario chassis
Current draw
Max. 1.600 mA per extender module (power input via the used Draco vario chassis)
Dimensions
20 x 129 x 143 mm
Weight
100 g
Chassis / mounting accessories
Suitable Draco vario chassis and mounting accessories under the following link: https://www.ihse.com/chassis-accessoires/
Upgradable
Onboard flash

Notice:
Transmission ranges for transparent USB when using add-on modules
When using L474/R474 add-on modules with transparent USB, the binding specifications stated in the data sheets of the add-on modules apply.

Part-No.

Draco vario ultra DisplayPort 1.1 DH - Series 493
CPU-Unit:

All Variations

ImageModellDescription
L493-BDHCDraco vario ultra CPU module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, Cat X 1G
L493-BDHSDraco vario ultra CPU module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, LWL LC SM 1G
L493-BDHXDraco vario ultra CPU module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, LWL LC SM 3G
L493-BDHCRDraco vario ultra CPU module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, Cat X 1G, red.
L493-BDHSRDraco vario ultra CON module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, LWL LC SM 1G, red.
L493-BDHXRDraco vario ultra CON module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, LWL LC SM 3G, red.
R493-BDHCDraco vario ultra CON module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, Cat X 1G
R493-BDHSDraco vario ultra CON module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, LWL LC SM 1G
R493-BDHXDraco vario ultra CON module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, LWL LC SM 3G
R493-BDHCRDraco vario ultra CON module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, Cat X 1G, red.
R493-BDHSRDraco vario ultra CON module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, LWL LC SM 1G, red.
R493-BDHXRDraco vario ultra CON module DP1.1, SH 4K30 o. 2x 1920 x 1200 @ 60 Hz, USB HID, LWL LC SM 3G, red.
