Flexline

Flexline – the Full HD over IP KVM extender family for flexible and failure-critical applications

Flexline - Flexible Full HD over IP Extenders

Flexline (Series Ecosmart, Smartflex, Masterflex, Maxflex)

The Flexline series offers a range of Full HD over IP extenders with resolutions up to 1920 x 1200 at 60 Hz. Equipped with screwable DVI-I connectors, depending on the model, VGA, DVI, HDMI or DisplayPort video signals in addition to USB for mouse and keyboard and transparent transmission as well as RS232 and analog audio signals can be fed in on the transmitter side and transmitted either point to point or via L 3 IP networks connected as a matrix system, using the switching manager.

The compact housing and the fact that interfaces are only arranged on one side, the Flexline is ideal for DIN rail mounting. For use in narrow server rooms, the EcoSmart version in Dongle Format and power supply via the USB interface offers the best conditions for both VGA and DVI sources in the so-called Zero-U design. The fanless design also enables operation in sensitive workplaces that require absolutely silent operation.

In matrix operation with Switching Manager, the Mouse Glide and Switch function offers the control of multi-console workstations with just one mouse and keyboard. Depending on the video signal content, the Flexline extender series reduces the bandwidth for signal transmission to a minimum. Single- or dual head as well as fiber or copper versions are available depending on the model.

Customer Benefits

Fast and lossless Transmission

< 1 ms Latency over IP

Optimzied Housing

Perfect for DIN Rail Mounting

Ergonomic

Fanless & Space-Saving Design

Compatible & Flexible

Mix and Match with 4K series

Meeting the customer needs

Single and Dual Head Versions

Secure

Redundancy for Failsafe Operation

Product Features

Flexline (Series Ecosmart, Smartflex, Masterflex, Maxflex)

Resolution up to 4096 x 2160 @ 60 Hz /
Ultra-Widescreen 5120 x 1440 @ 60 Hz
10 Gbit max. bandwidth per link
Combines extension and multiviewing seamlessly
Scales easily in terms of application size

Flexline Inquiry

For personalized insights and dedicated support, explore our additional resources.

Specifications

Flexline (Series Ecosmart, Smartflex, Masterflex, Maxflex)

Maximum Resolution

1920 x 1200 at 60 Hz

Video Interface CPU

Single-Head: In 1 x DVI; Out 1 DVI
Dual-Head: In 2 x DVI

Video Interface CON

Single-Head: Out 1 x DVI
Dual-Head: Out 1 x DVI

Digital L-PCM Stereo Audio embedded

16 bit, 44 Hz, 2 ch

Analog Bi-Di Stereo Audio CPU

Only with Masterflex & Maxflex:
Single-Head: 1 x Input & 1 x Output (3,5 mm jack)
Dueal-Head: 1 x Input & 1 x Output (3,5 mm jack)

Analog Bi-Di Stereo Audio CON

Only with Masterflex & Maxflex:
Single-Head: 1 x Input & 1 x Output (3,5 mm jack)
Dueal-Head: 1 x Input & 1 x Output (3,5 mm jack)

USB Inferface CPU

1 x USB-B

USB Inferface CON

4 x USB-A

Link

Ecosmart:
1 x RJ45

Smartflex:
Single-Head: 1 x RJ45 Dual-Head 2 x RJ45

Masterflex:
Single-Head: 2 x RJ45 or 2 x SFP Dual-Head: 2 x RJ45 or 2 x SFP

Maxflex:
Single-Head: 2 x RJ45 or 2 x SFP

Dual-Head:
2 x RJ45 or 2 x SFP

VGA

Only with Masterflex & Maxflex, Optional for Ecosmart

Bandwidth

1 Gbit per Link

Distance

CAT: 100 m
LWL: 300 m Multi-Mode
Optional for LWL:
KT1-7009 MultiMode 850 nm 500 m
KT1-7008 MultiMode 2km
KT1-7010 SingleMode 1310 nm 20 km
KT1-7011 SingleMode BiDi 1310 / 1550 nm 20 km

Power Supply CPU

Smartflex:
1 x 12 V / 1 A, Barrel Plug 2,1 mm

Masterflex:
2 x 12 V / 1 A, Barrel Plug 2,1 mm

Maxflex:
2 x 12 V / 1 A, Barrel Plug 2,1 mm

Power Supply CON

Smartflex:
1 x 12 V / 1 A, Barrel Plug 2,1 mm

Masterflex:
2 x 12 V / 1 A, Barrel Plug 2,1 mm

Maxflex:
2 x 12 V / 1 A, Barrel Plug 2,1 mm

Power Redundancy

Only with Masterflex & Maxflex; Ecosmart Power over USB

RS232

Only with Maxflex; 1 x RJ12

Dimensions

CPU: 108 x 43 x 107,5 mm
CON: 108 x 43 x 107,5 mm

Weight

CPU: 295 g
CON: 295g

Upgradable

KT-6034: Additional Power supply PoE per Unit (only with copper models)
KT-6041: Sound Upgrade
KT-6042: Analog VGA Upgrade
KT-6043: USB Memory Ugrade

System Diagrams

Flexline (Series Ecosmart, Smartflex, Masterflex, Maxflex)

Downloads

Flexline (Series Ecosmart, Smartflex, Masterflex, Maxflex)

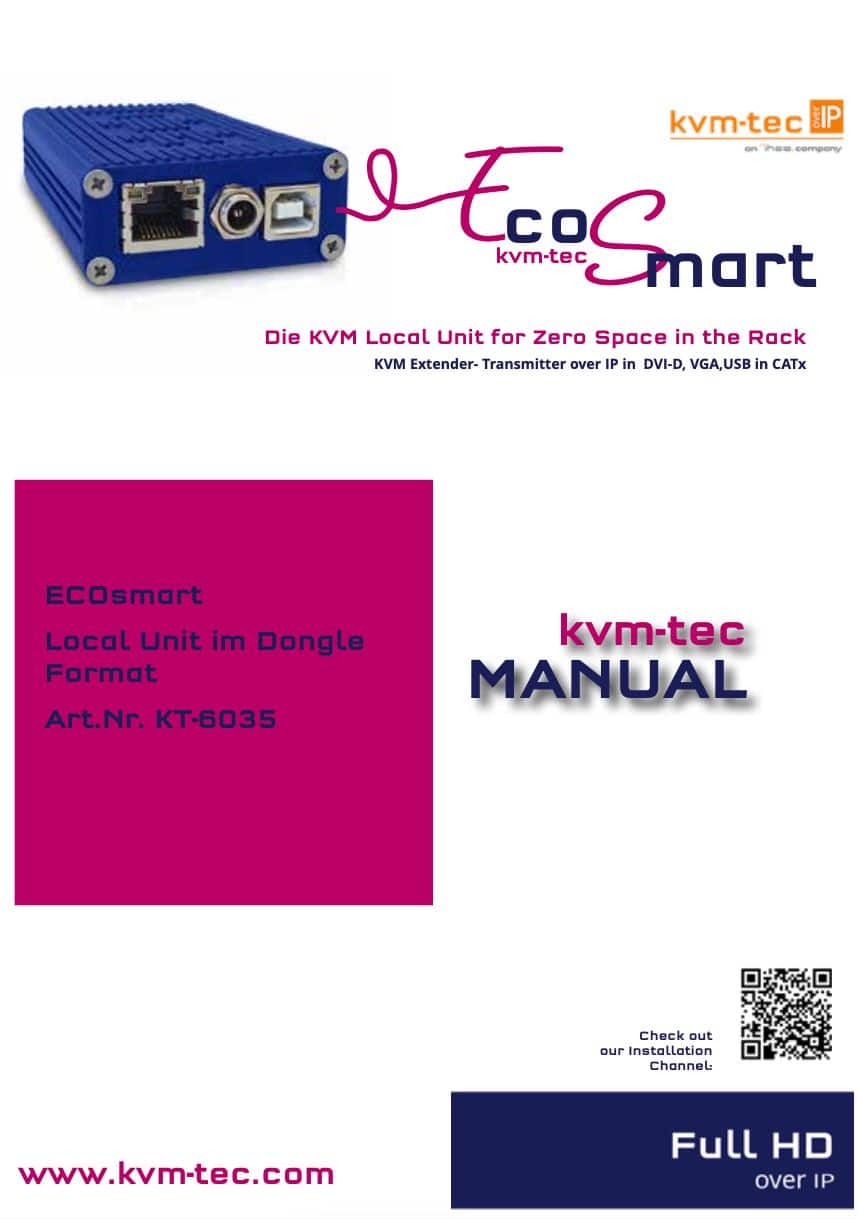

Manual (ECOsmart)

Download

Manual (Masterflex)

Download

Manual (Maxflex)

Download

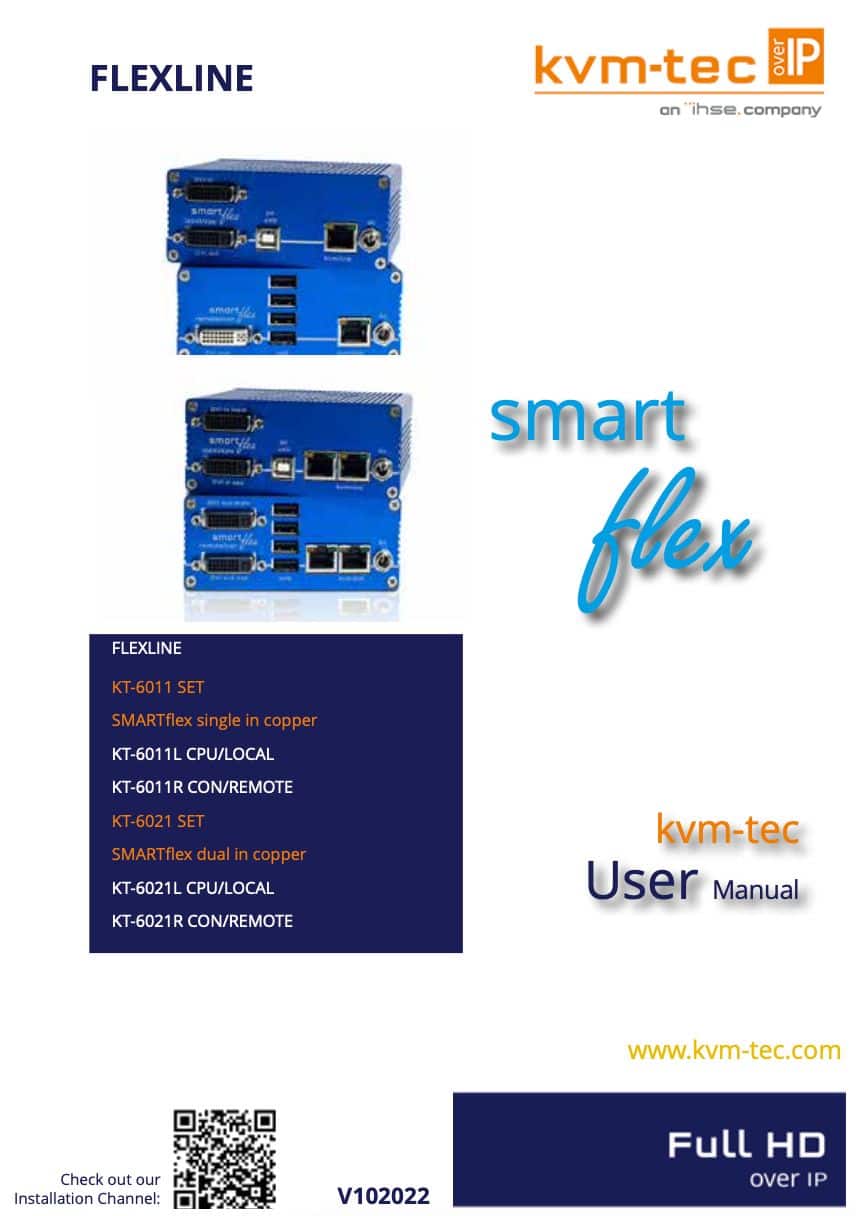

Manual (Smartflex)

Download

Datasheet (Flexline)

Download

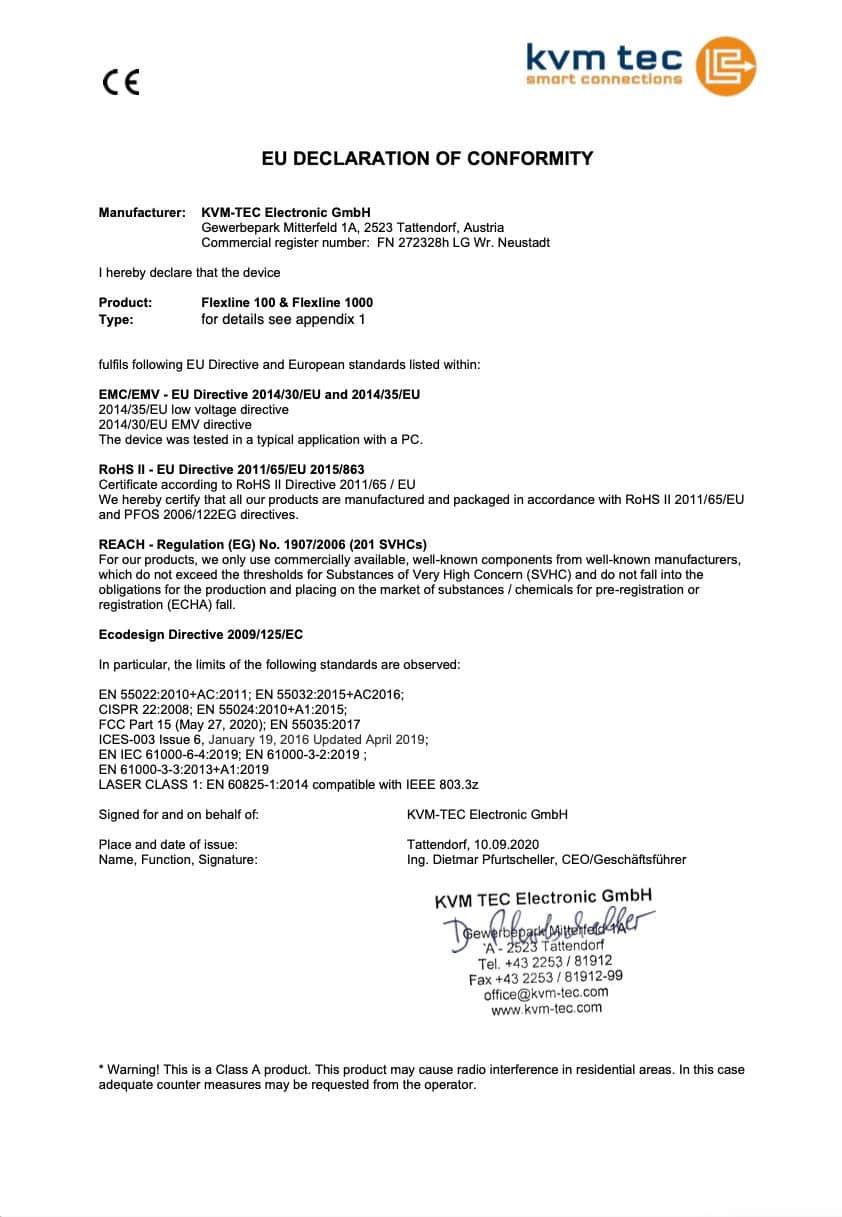

Conformity (Flexline)

Download

Part-No.

Flexline (Series Ecosmart, Smartflex, Masterflex, Maxflex)

Ecosmart

KT-6035

ECOsmart Single Copper CPU, 1x CATx, 1x DVI-D, Single Link, 1x USB Type B, Audio embedded

KT-6035V

ECOsmart Single Copper CPU with VGA, 1x CATx, 1x DVI-D, Single Link, 1x USB Type B, Audio embedded
Smartflex

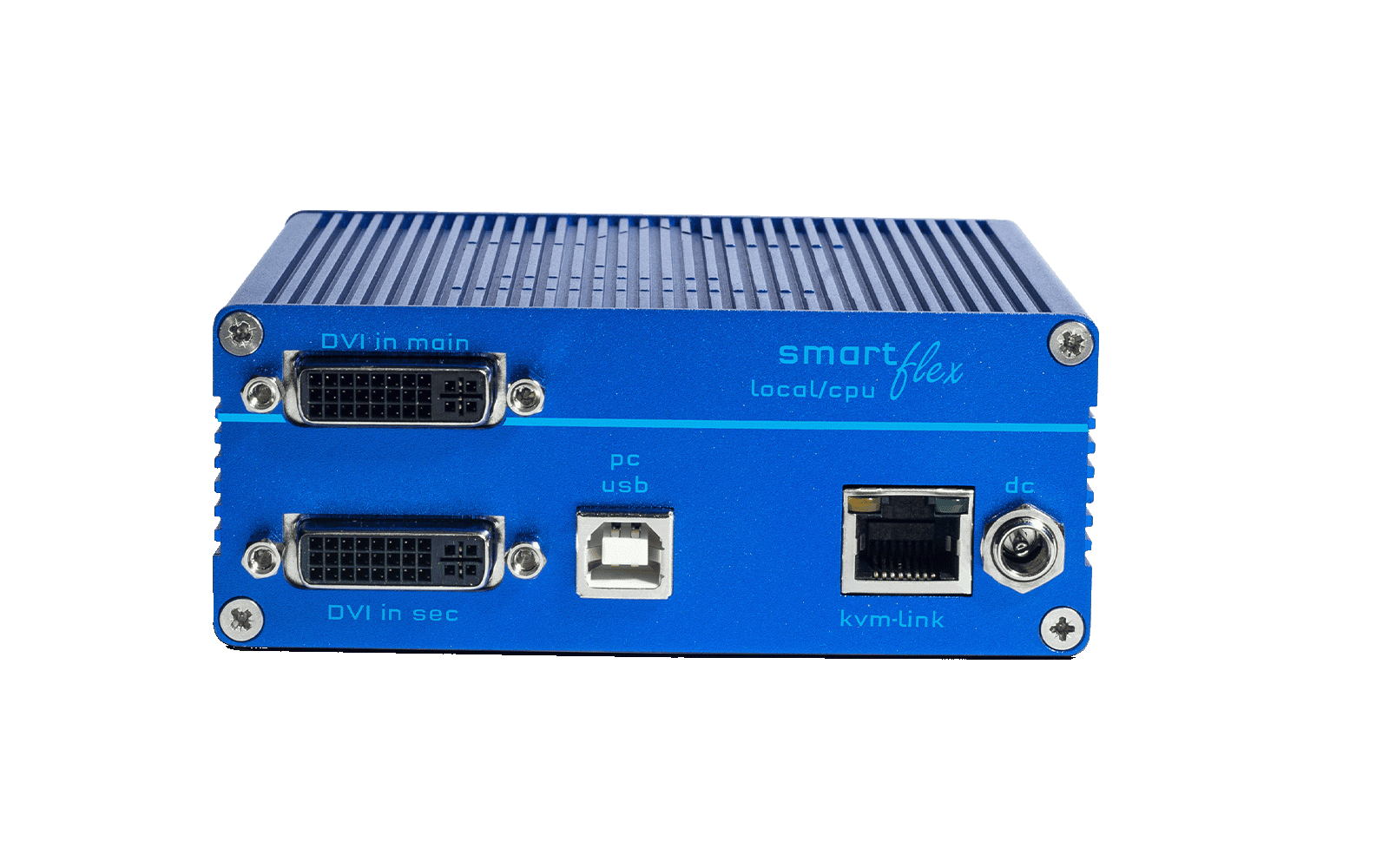

KT-6011L

Smartflex Single Copper CPU – Smartflex CPU Modul, 1x CATx, 2x DVI-D, Single Link, 1x USB Type B, Audio embedded

KT-6011R

Smartflex Single Copper CON – Smartflex CON Modul, 1x CATx, 1x DVI-D, Single Link, 4x USB Type A, Audio embedded

KT-6021L

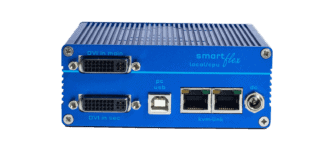

Smartflex Dual Copper CPU - Smartflex CPU Modul, 2x CATx, 2x DVI-D, Dual Link, 1x USB Type B, Audio embedded

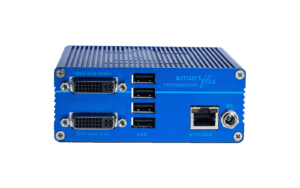

KT-6021R

Smartflex Dual Copper CON – Smartflex CON Modul, 2x CATx, 1x DVI-D, Dual Link, 4x USB Type A, Audio embedded
Masterflex

KT-6012L

Masterflex Single Copper CPU – Masterflex CPU Modul, 1x CATx, 2x DVI-D, Single Link, 1x USB Type B, Audio embedded, Audio analog

KT-6012R

Masterflex Single Copper CON – Masterflex CON Modul, 1x CATx, 1x DVI-D, Single Link, 4x USB Type A, Audio embedded, Audio analog

KT-6013L

Masterflex Single Fiber CPU – Masterflex CPU Modul, 1x LWL, 2x DVI-D, Single Link, 1x USB Type B, Audio embedded, Audio analog

KT-6013R

Masterflex Single Fiber CON – Masterflex CON Modul, 1x LWL, 1x DVI-D, Single Link, 4x USB Type A, Audio embedded, Audio analog

KT-6022L

Masterflex Dual Copper CPU – Masterflex CPU Modul, 2x CATx, 2x DVI-D, Dual Link, 1x USB Type B, Audio embedded, Audio analog

KT-6022R

Masterflex Dual Copper CON – Masterflex CON Modul, 2x CATx, 1x DVI-D, Dual Link, 4x USB Type A, Audio embedded, Audio analog

KT-6023L

Masterflex Dual Fiber CPU – Masterflex CPU Modul, 2x LWL, 2x DVI-D, Dual Link, 1x USB Type B, Audio embedded, Audio analog

KT-6023R

Masterflex Dual Fiber CON – Masterflex CON Modul, 2x LWL, 1x DVI-D, Dual Link, 4x USB Type A, Audio embedded, Audio analog
Maxflex

KT-6014L

Maxflex Single Copper CPU – Maxflex CPU Modul, 1x CATx, 2x DVI-D, Single Link, 1x USB Type B, Audio embedded, Audio analog, RS-232

KT-6014R

Maxflex Single Copper CON – Maxflex CON Modul, 1x CATx, 1x DVI-D, Single Link, 4x USB Type A, Audio embedded, Audio analog, RS-232

KT-6016L

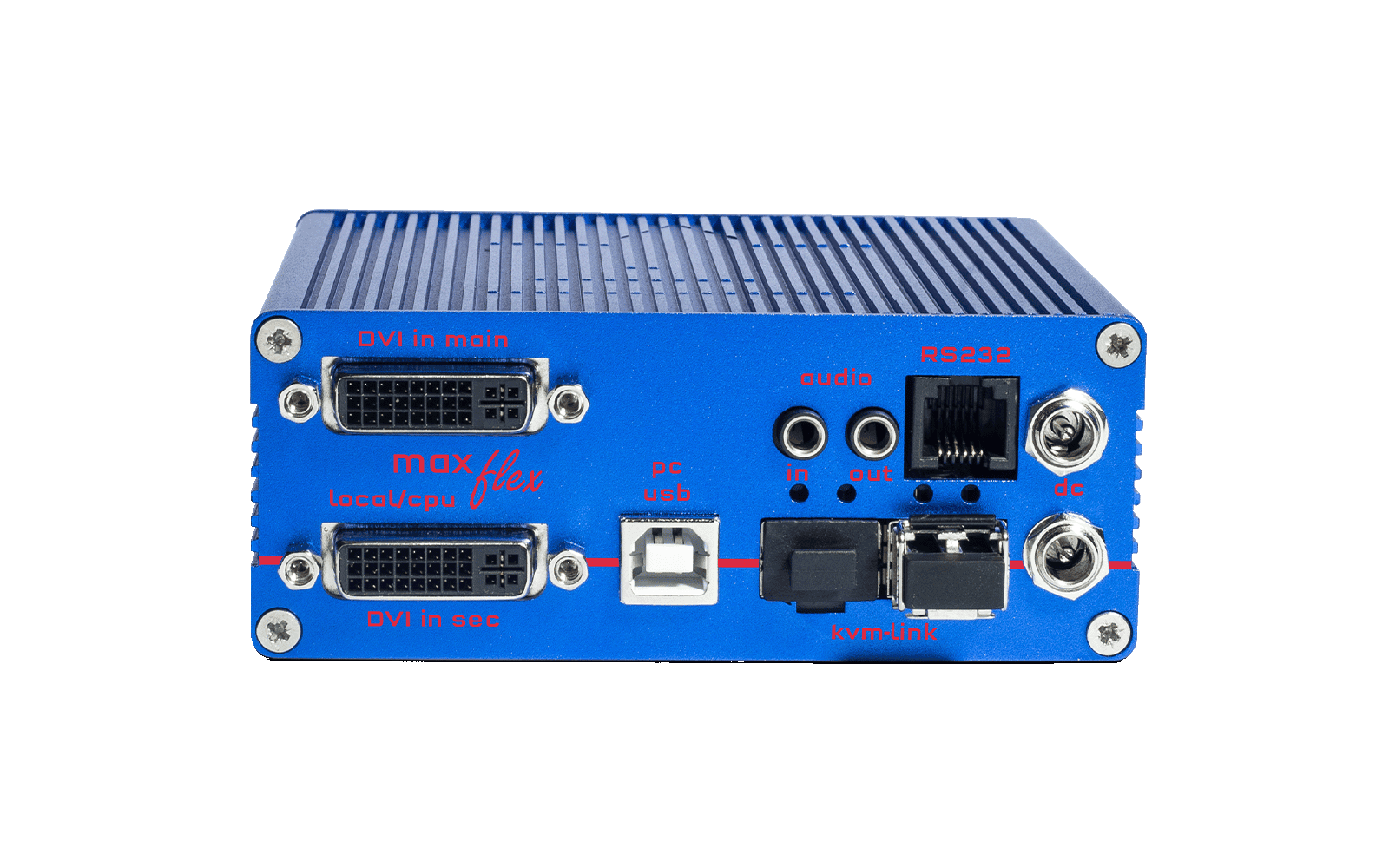

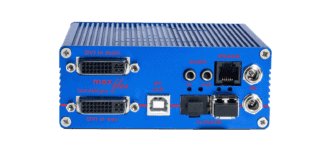

Maxflex Single Fiber CPU – Maxflex CPU Modul, 1x LWL, 2x DVI-D, Single Link, 1x USB Type B, Audio embedded, Audio analog, RS-232

KT-6016R

Maxflex Single Fiber CON – Maxflex CON Modul, 1x LWL, 1x DVI-D, Single Link, 4x USB Type A, Audio embedded, Audio analog, RS-232

KT-6024L

Maxflex Dual Copper CPU – Maxflex CPU Modul, 2x CATx, 2x DVI-D, Dual Link, 1x USB Type B, Audio embedded, Audio analog, RS-232

KT-6024R

Maxflex Dual Copper CON – Maxflex CON Modul, 2x CATx, 1x DVI-D, Dual Link, 4x USB Type A, Audio embedded, Audio analog, RS-232

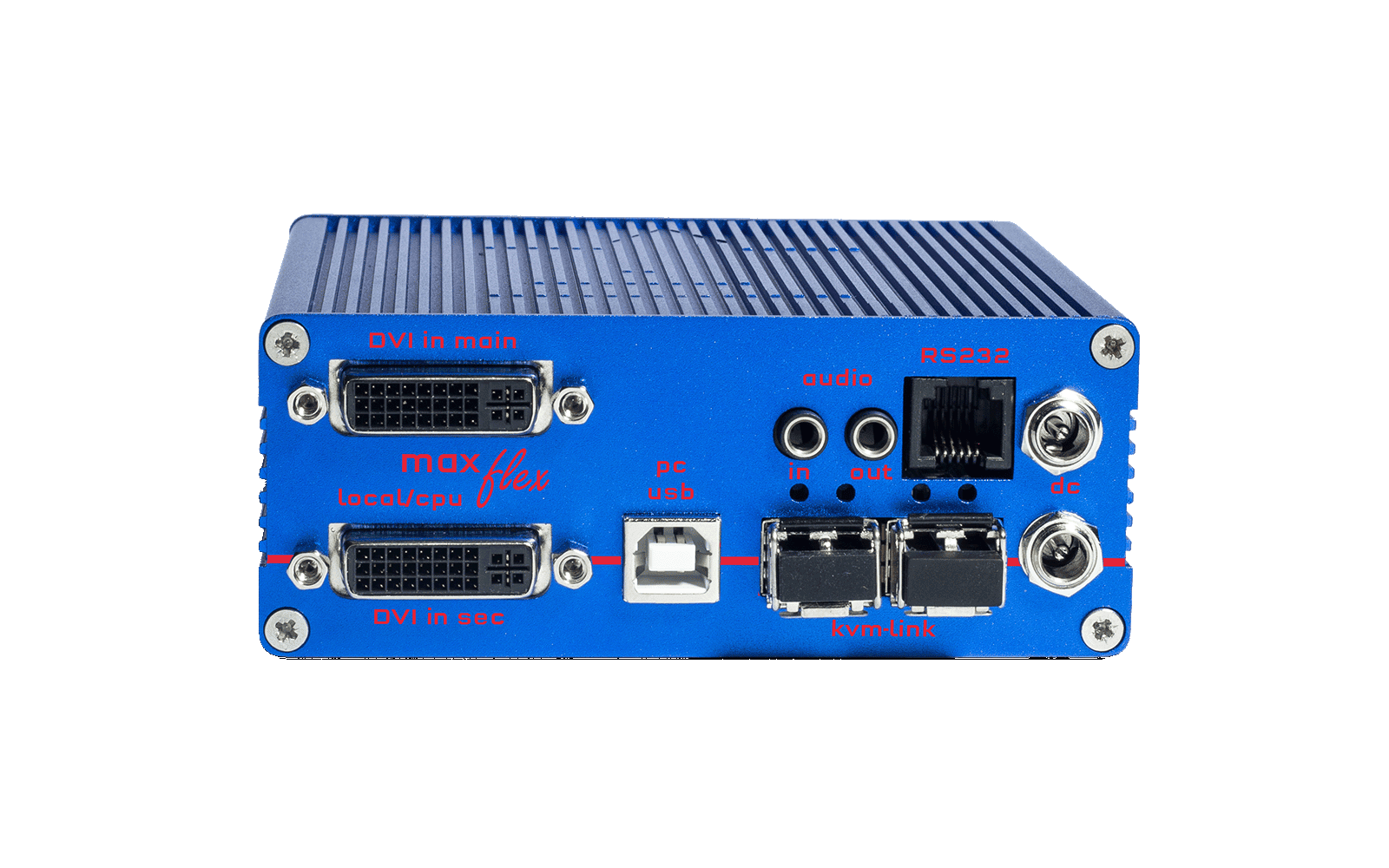

KT-6026L

Maxflex Dual Fiber CPU – Maxflex CPU Modul, 2x LWL, 2x DVI-D, Dual Link, 1x USB Type B, Audio embedded, Audio analog, RS-232

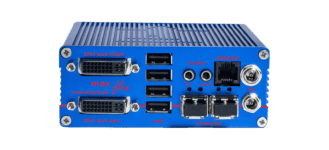

KT-6026R

Maxflex Dual Fiber CON – Maxflex CON Modul, 2x LWL, 1x DVI-D, Dual Link, 4x USB Type A, Audio embedded, Audio analog, RS-232
