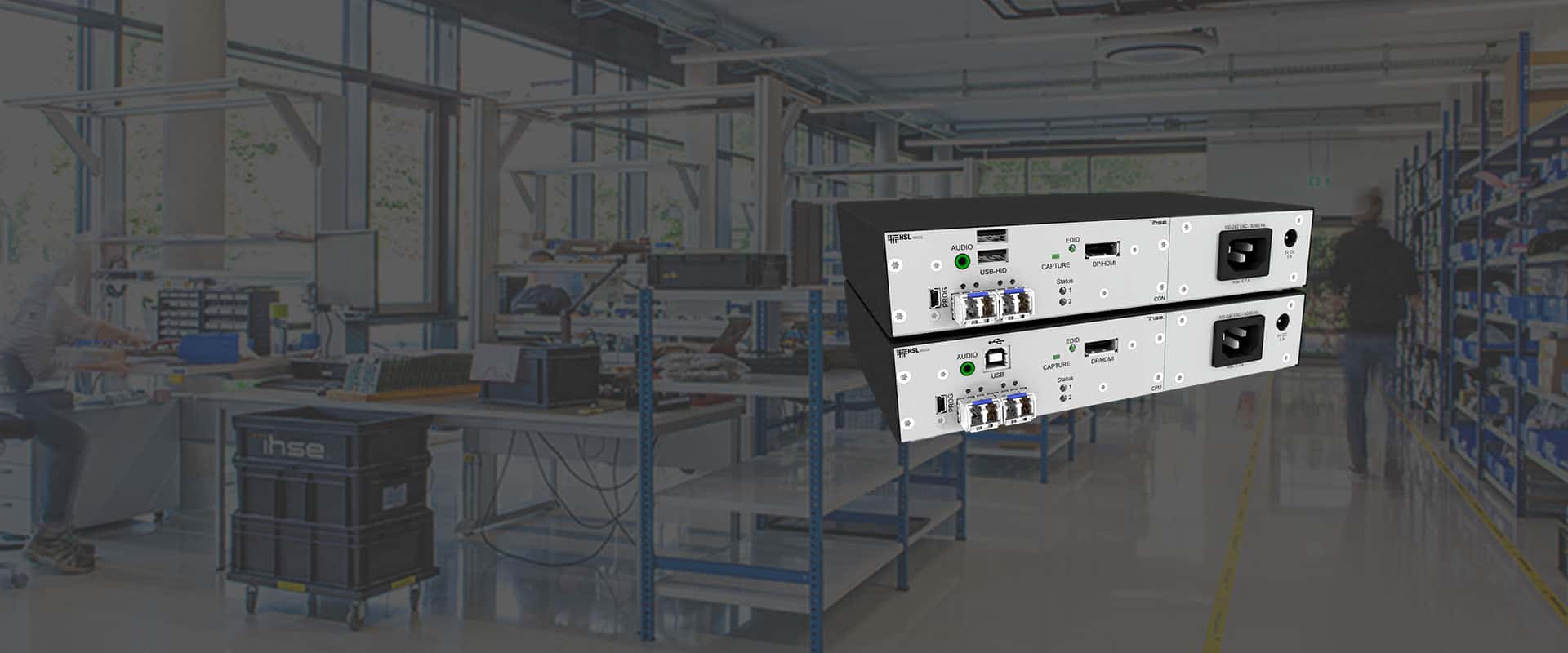

Draco vario KVMA Isolated Secure Extender
The Draco vario KVMA Isolated Secure Extenders are CC EAL4+ certified and conform to NIAP PP 4.0, meeting mandatory requirements for security-related applications worldwide.
EAL4+ certified, conforming to NIAP PP4.0
When it is key to protect your intellectual property or homeland security while still allowing the most flexible access to IT assets, use the Draco vario KVMA Isolated Secure Extender to extend keyboard, video, mouse and audio signals without any loss of quality up to 10 km. Pictures are displayed without delay, brilliantly clear and in highest resolutions, including full HD and 2K. Even 3D formats can be transmitted fast and without difficulty.
Experience excellent sound data with finest details by digital audio transmission via DP/HDMI or the analog interface. Take advantage of link and power redundancy for most failsafe interconnections via single-mode or multi-mode fiber. Both, CPU and CON devices are equipped with signal isolation with NIAP PSD PP 4.0.
In combination with Draco tera matrix switches and Draco vario extenders, a secure setup with classified and unclassified enpoints can be achieved. With isolation being guaranteed at both ends, the risk of data leakage or eaves dropping is eliminated even in environments with a cross-over of secured and unsecured devices which may be used for commercial reasons.
Produkteigenschaften
CC EAL4+ certified
Conforming to NIAP PP4.0
Draco vario series 487 in 474-BODY2N chassis (Kit)
DP/HDMI combo port
High resolution video can be transmitted via DP/HDMI interface
The interface is compatible with 3D technology: Side-by-Side and Top-and-Bottom formats can be transmitted
Allows operation of a CPU from a remote workstation with an DP/HDMI monitor and two USB-HID devices
(such as a keyboard and pointing devices) and audio speakersCompatible with all major operating systems
Compatible with all IHSE Draco KVM switches as well as Draco vario and Draco compact extenders
DP/HDMI embedded audio is cross-compatible with digital audio add-on modules
Redundant data link
Pair with Draco vario non-PP4 extenders when used in secure facilities
Support for Draco tera matrix switches 8-576 ports
Anti-tampering
Draco vario KVMA Isolated Secure Extender Anfrage
Kontaktieren Sie einen unserer Experten für individuelle Einblicke und persönliche Beratung.
Technische Daten
1920 x 1200 @ 60 Hz, Full HD (1080 p) or
2K HD (up to 2048 x 1152)
Series 497:
up to 4K30*
Single-Mode 9μm: 10.000 m (32.808 ft)
Single-Mode 9μm XV: 5.000 m (16.404 ft)
Multi-Mode 50μm (OM3): 1.000 m (3.280 ft)
Multi-Mode 50μm: 400 m (1.312 ft)
Funktionsdarstellung
Artikelnummern
-
Cat X (Series 487)
K487-1PHCA-N
Draco vario 2N KVMA Isolated Secure Extender Kit (CPU and CON), Cat X
K487-1PHCRA-N
Draco vario 2N KVMA Isolated Secure Extender Kit (CPU and CON), Cat X, redundant
-
Fiber (Series 487)
K487-1PHSA-N
Draco vario 2N KVMA Isolated Secure Extender Kit (CPU and CON), Fiber
K487-1PHSRA-N
Draco vario 2N KVMA Isolated Secure Extender Kit (CPU and CON), Fiber, redundant
-
Cat X (Series 497)
K497-1PHCA-N
Draco vario 2N KVMA Isolated Secure Extender Kit (CPU and CON), Cat X
K497-1PHCRA-N
Draco vario 2N KVMA Isolated Secure Extender Kit (CPU and CON), Cat X, redundant
-
Fiber (Series 497)
K497-1PHSA-N
Draco vario 2N KVMA Isolated Secure Extender Kit (CPU and CON), Fiber
K497-1PHSRA-N
Draco vario 2N KVMA Isolated Secure Extender Kit (CPU and CON), Fiber, redundant
