Draco tera flex

Die neue Matrixswitch-Serie ‚Draco tera flex‘ zeichnet sich durch enorme Flexibilität, Modularität, Skalierbarkeit und Funktionalität aus – bei kompakter Bauform und niedrigen Kosten.

Produktinformation

Draco tera flex (Series 480)

Die Draco tera flex KVM- Matrixwitch-Serie mit ihrer kompakten Größe von 1, 2 oder 4HE und bis zu 160 Flex-Ports wurde entwickelt, um sowohl kleine bis mittelgroße als auch große Anwendungen zu unterstützen. Mit ihrer Kapazität, 1G- und 3G-Technologie innerhalb eines einzigen Chassis sowie Cat X- und Glasfaserschnittstellen zu ermöglichen, unterstützt sie moderne Anwendungen mit einem Mix aus 2K und 4K Videoauflösungen auf sehr wirtschaftliche Weise. Kundenspezifische Chassis ermöglichen sogar eine zukünftige Aufrüstbarkeit im Bereich der Skalierung eines Systems von 40-Port auf 80-Port oder sogar 160-Port komplett blockierungsfrei.

Grid-Konnektivität
Mit der 10G-Grid-Option der Draco tera flex-Serie lassen sich nun die verschiedenen Modelle mit geringem Infrastrukturaufwand zu einem dezentralen, aber homogenen Gesamtsystem (Matrix-Grid) verbinden.

Einfaches Setup
Durch einfaches Anschließen des Extenders an das Chassis erkennt die interne Steuerungssoftware den Port und konfiguriert ihn automatisch als CPU- oder Konsolengerät. Diese Flex- Port- Technologie bietet eine enorme Zeitersparnis für Systeminstallatoren, die normalerweise die Ports für spezifische I/OAnforderungen vorkonfigurieren müssen.
Das System unterstützt außerdem die Instant-Switching-Technologie. Mit einer unglaublichen Geschwindigkeit erfolgt das Umschalten zwischen den Quellen störungsfrei und verzögerungsfrei, wodurch die Belastung der Augen und das lästige Video-Tearing, das bei anderen Systemen auftritt, reduziert wird. Wo eine zentrale KVM-Umschaltung erforderlich ist, ist der Draco tera flex die perfekte KVM-Lösung. Er eignet sich besonders für Prozessleit- und Kontrollsysteme in Fabriken, Produktionsstudios, Übertragungswagen und vielfältigen anderen Steuerungs- und Kontrollumgebungen zur Workflow-
Optimierung und Ressourcen-Einsparung.

Kompatibilität
Der Draco tera flex ist mit allen Draco vario-Extendern kompatibel. Es muss lediglich auf die richtige Link-Geschwindigkeit und Schnittstelle der verwendeten Endpunkte und deren Codec-Version geachtet werden.
Außerdem ist der Draco tera flex ist bereits für die zukünftige Rückwärtskompatibilität von Draco vario ultra CON-Einheiten zu Draco vario-CPUs gerüstet.

Produkt­eigenschaften

Draco tera flex (Series 480)
  • Kompatibel zu den aktuellen Draco tera enterprise-Serie und solchen mit neuer Controller Card

    • SNMPv3, LDAPS
    • O/S v04.x Unterstützung für for mehrsprachige OSD (Chinesisch, Deutsch, Französisch, Spanisch, …)
    • verschlüsselte Kommunikation für API, Tool und Grid, individuelles Routing von Protokollen
    • schnelleres Starten
    • verbesserte Grid-Integration (schnellere & zuverlässigere Kommunikation) inkl. Grid-Modul
  • Variationen mit Cat X und Glasfaser sowie 1G, 3G sind möglich – ebenfalls in gemischten Kombinationen

  • Gerüstet für kommende 1G/3G-Kompatibilität, IPv6

  • Internes modulares Konzept ermöglicht Skalierbarkeit und Instandhaltung (ähnlich wie zur Draco major-Serie)

  • Kompatibel zu allen Draco vario-Extender

  • Redundante Netzteile und Netzwerkschnittstellen (NICs)

  • Vielseitigkeit: Mit nur 3 Chassis-Typen und 5 verschiedenen Typen von I/O-Modulen ist eine fast unendliche Anzahl von kundenspezifischen Draco tera flex-Matrixswitchen möglich

  • Ersetzt die aktuelle Draco tera compact-Serie

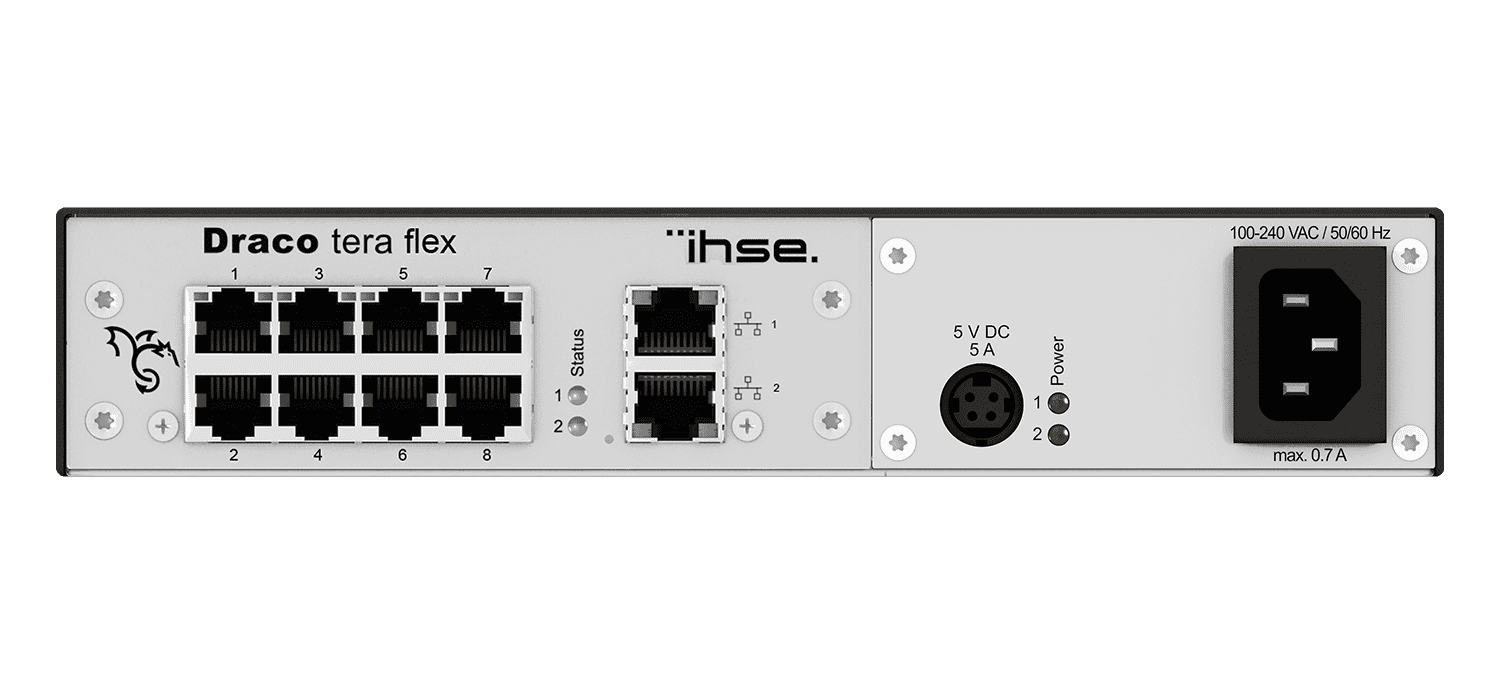

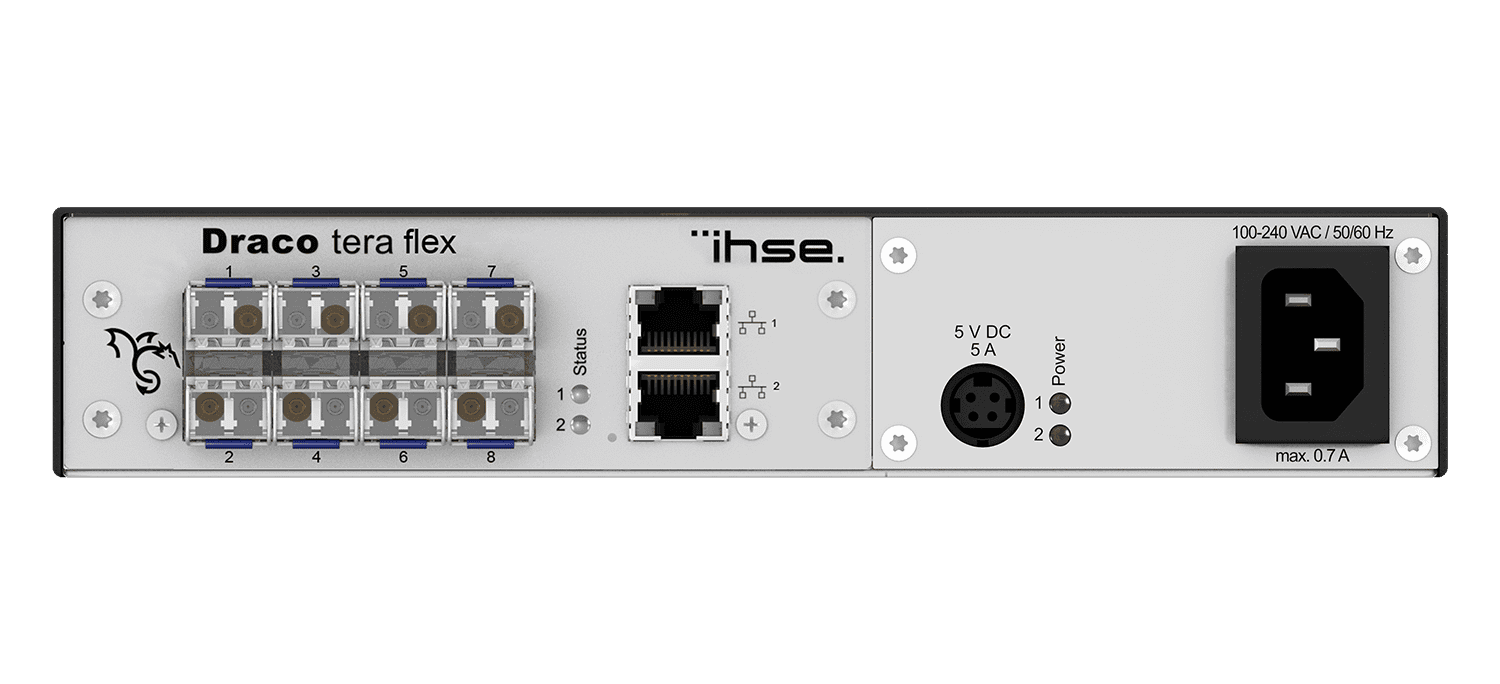

    (der 8-Port-Switch bleibt als Einstiegsvariante für kleinere KVM-Installationen bestehen)

  • Vorbereitet für den 19″-Einbau, Montagewinkel liegen den Geräten bei

Draco tera flex Anfrage

Kontaktieren Sie einen unserer Experten für individuelle Einblicke und persönliche Beratung.

Funktions­darstellung

Draco tera flex (Series 480)

Downloads

Draco tera flex (Series 480)

Datenblatt

Download

Handbuch

Download

Konformitätserklärung

Download

Quick-Setup

Download

Artikelnummern

Draco tera flex (Series 480)
  • Cat X & Cat X 3G

    K480-C16

    Draco tera flex KVM matrix 16 ports, Cat X 1G

    K480-C24

    Draco tera flex KVM matrix 24 ports, Cat X 1G

    K480-C32

    Draco tera flex KVM matrix 32 ports, Cat X 1G

    K480-C40

    Draco tera flex KVM matrix 40 ports, Cat X 1G

    K480-C48

    Draco tera flex KVM matrix 48 ports, Cat X 1G

    K480-C64

    Draco tera flex KVM matrix 64 ports, Cat X 1G

    K480-C80

    Draco tera flex KVM matrix 80 ports, Cat X 1G

    K480-C120

    Draco tera flex KVM matrix 120 ports, Cat X 1G

    K480-C128

    Draco tera flex KVM matrix 128 ports, Cat X 1G

    K480-C144

    Draco tera flex KVM matrix 144 ports, Cat X 1G

    K480-C160

    Draco tera flex KVM matrix 160 ports, Cat X 1G

    K480-CX16

    Draco tera flex KVM matrix 16 ports, Cat X 3G

    K480-CX24

    Draco tera flex KVM matrix 24 ports, Cat X 3G

    K480-CX32

    Draco tera flex KVM matrix 32 ports, Cat X 3G

    K480-CX40

    Draco tera flex KVM matrix 40 ports, Cat X 3G

    K480-CX48

    Draco tera flex KVM matrix 48 ports, Cat X 3G

    K480-CX64

    Draco tera flex KVM matrix 64 ports, Cat X 3G

    K480-CX80

    Draco tera flex KVM matrix 80 ports, Cat X 3G

    K480-CX120

    Draco tera flex KVM matrix 120 ports, Cat X 3G

    K480-CX128

    Draco tera flex KVM matrix 128 ports, Cat X 3G

    K480-CX144

    Draco tera flex KVM matrix 144 ports, Cat X 3G

    K480-CX160

    Draco tera flex KVM matrix 160 ports, Cat X 3G

  • Fiber & Fiber 3G

    K480-F16

    Draco tera flex KVM matrix 16 ports, fiber 1G

    K480-F24

    Draco tera flex KVM matrix 24 ports, fiber 1G

    K480-F32

    Draco tera flex KVM matrix 32 ports, fiber 1G

    K480-F40

    Draco tera flex KVM matrix 40 ports, fiber 1G

    K480-F48

    Draco tera flex KVM matrix 48 ports, fiber 1G

    K480-F64

    Draco tera flex KVM matrix 64 ports, fiber 1G

    K480-F80

    Draco tera flex KVM matrix 80 ports, fiber 1G

    K480-F120

    Draco tera flex KVM matrix 120 ports, fiber 1G

    K480-F128

    Draco tera flex KVM matrix 128 ports, fiber 1G

    K480-F144

    Draco tera flex KVM matrix 144 ports, fiber 1G

    K480-F160

    Draco tera flex KVM matrix 160 ports, fiber 1G

    K480-FX16

    Draco tera flex KVM matrix 16 ports, fiber 3G

    K480-FX24

    Draco tera flex KVM matrix 24 ports, fiber 3G

    K480-FX32

    Draco tera flex KVM matrix 32 ports, fiber 3G

    K480-FX40

    Draco tera flex KVM matrix 16 ports, fiber 3G

    K480-FX48

    Draco tera flex KVM matrix 48 ports, fiber 3G

    K480-FX64

    Draco tera flex KVM matrix 64 ports, fiber 3G

    K480-FX80

    Draco tera flex KVM matrix 80 ports, fiber 3G

    K480-FX120

    Draco tera flex KVM matrix 120 ports, fiber 3G

    K480-FX128

    Draco tera flex KVM matrix 128 ports, fiber 3G

    K480-FX144

    Draco tera flex KVM matrix 144 ports, fiber 3G

    K480-FX160

    Draco tera flex KVM matrix 160 ports, fiber 3G

  • Hybrid & Hybrid 3G

    K480-C24F16

    Draco tera flex KVM matrix 40 ports, hybrid 1G

    K480-C24F40

    Draco tera flex KVM matrix 64 ports, hybrid 1G

    K480-C40F24

    Draco tera flex KVM matrix 64 ports, hybrid 1G

    K480-C40F40

    Draco tera flex KVM matrix 80 ports, hybrid 1G

    K480-C80F40

    Draco tera flex KVM matrix 120 ports, hybrid 1G

    K480-C80F80

    Draco tera flex KVM matrix 160 ports, hybrid 1G

    K480-C120F40

    Draco tera flex KVM matrix 160 ports, hybrid 1G

    K480-CX24FX16

    Draco tera flex KVM matrix 40 ports, hybrid 3G

    K480-CX24FX40

    Draco tera flex KVM matrix 64 ports, hybrid 3G

    K480-CX40FX24

    Draco tera flex KVM matrix 64 ports, hybrid 3G

    K480-CX40FX40

    Draco tera flex KVM matrix 80 ports, hybrid 3G

    K480-CX80FX40

    Draco tera flex KVM matrix 120 ports, hybrid 3G

    K480-CX80FX80

    Draco tera flex KVM matrix 160 ports, hybrid 3G

    K480-CX120FX40

    Draco tera flex KVM matrix 160 ports, hybrid 3G

  • IP Gateway- / Grid-Versionen

    K480-C32G

    Draco tera flex KVM-Matrix 40-Port, 32x Cat X 1G, 1xIP Gateway

    K480-F32G

    Draco tera flex KVM-Matrix 40-Port, 32x LWL 1G, 1x IP Gateway

    K480-C16F16G

    Draco tera flex KVM-Matrix 40-Port, 16x Cat X/16x LWL 1G, 1x IP Gateway, 1 HE

    K480-C16F16G-2RU

    Draco tera flex KVM-Matrix 40-Port, 16x Cat X/16x LWL 1G, 1x IP Gateway, kundenspezifisch, 2 HE

    K480-C16F16G-4RU

    Draco tera flex KVM-Matrix 40-Port, 16x Cat X/16x LWL 1G, 1x IP Gateway, kundenspezifisch, 4 HE

    K480-C24G2

    Draco tera flex KVM-Matrix 40-Port, 24x Cat X 1G , 2x IP Gateway, 1 HE

    K480-C24G2-2RU

    Draco tera flex KVM-Matrix 40-Port, 24x Cat X 1G, 2x IP Gateway, kundenspezifisch, 2 HE

    K480-C24G2-4RU

    Draco tera flex KVM-Matrix 40-Port, 24x Cat X 1G, 2x IP Gateway, kundenspezifisch, 4 HE

    K480-F24G2

    Draco tera flex KVM-Matrix 40-Port, 24x LWL 1G, 2x IP Gateway, 1HE

    K480-F24G2-2RU

    Draco tera flex KVM-Matrix 40-Port, 24x LWL 1G, 2x IP Gateway, kundenspezifisch, 2 HE

    K480-F24G2-4RU

    Draco tera flex KVM-Matrix 40-Port, 24x LWL 1G, 2x IP Gateway, kundenspezifisch, 4 HE

  • Custom Design Starterkit 2RU up to 80 Ports

    K480-C40-2RU

    Draco tera flex KVM matrix 40 ports, custom design 2RU, Cat X 1G

    K480-F40-2RU

    Draco tera flex KVM matrix 40 ports, custom design 2RU, fiber 1G

    K480-C24F16-2RU

    Draco tera flex KVM matrix 40 ports, custom design 2RU, hybrid 1G

    K480-CX40-2RU

    Draco tera flex KVM matrix 40 ports, custom design 2RU, Cat X 3G

    K480-FX40-2RU

    Draco tera flex KVM matrix 40 ports, custom design 2RU, fiber 3G

    K480-CX24FX16-2RU

    Draco tera flex KVM matrix 40 ports, custom design 2RU, hybrid 3G

    K480-C32G-2RU

    Draco tera flex KVM matrix 32 ports + Grid, custom design 2RU, Cat X 1G

    K480-F32G-2RU

    Draco tera flex KVM matrix 32 ports + Grid, custom design 2RU, fiber 1G

  • Custom Design Starterkit 2RU up to 160 Ports

    K480-C40-4RU

    Draco tera flex KVM matrix 40 ports, custom design 4RU, Cat X 1G

    K480-F40-4RU

    Draco tera flex KVM matrix 40 ports, custom design 4RU, fiber 1G

    K480-C24F16-4RU

    Draco tera flex KVM matrix 40 ports, custom design 4RU, hybrid 1G

    K480-CX40-4RU

    Draco tera flex KVM matrix 40 ports, custom design 4RU, Cat X 3G

    K480-FX40-4RU

    Draco tera flex KVM matrix 40 ports, custom design 4RU, fiber 3G

    K480-CX24FX16-4RU

    Draco tera flex KVM matrix 40 ports, custom design 4RU, hybrid 3G

    K480-C32G-4RU

    Draco tera flex KVM matrix 32 ports + Grid, custom design 4RU, Cat X 1G

    K480-F32G-4RU

    Draco tera flex KVM matrix 32 ports + Grid, custom design 4RU, fiber 1G
