Discover the power of IHSE’s first IP-based point-to-point extender family.
The DNX 4K brings brilliant 4K and 5K performance to modern workplaces, control rooms, and studios — delivering flawless image quality, quiet operation, and plug-and-play simplicity. Perfect for organizations that demand professional performance in compact, cost-sensitive environments.
Ssddd
Discover DNX 4K for various applications ideal for
Small studios, OB vans and mobile production units
Broadcast and post production facilities
Industrial control rooms
Medical environments requiring silent operation
Government, security and military installations
Connect with one of our Experts for Personalized Insights and Dedicated Support.
IHSE DNX 4K offers KVM extension combined with audio and USB for DisplayPort video signals up to 4K60 or 5K60 (1440p) via a single Cat X or duplex fiber optic cable. The extender set can easily be connected point to point using a simple link cable. There are three options available: Cat X (Cat6a), fiber
Multimode or singlemode.
The extenders are delivered with static IP addresses and allow point to point connection via 10G networks. To match client network settings, the extenders IP addresses can easily be amended via OnScreen-Menu, so that signals can even be routed.
The extender kits are available as Single Head and Dual Head version. Even the Dual Head version extends all signals across the single 10G link. Both version have slim footprint and are completely fanless for noiseless operation.

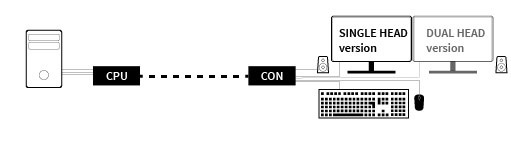

Functional Diagram:
Functions:
Read the latest press release announcing DNX 4K
The Draco XStreme Display Port Series will be available from mid 2025. HDMI and UCB-C interfaces will follow.
