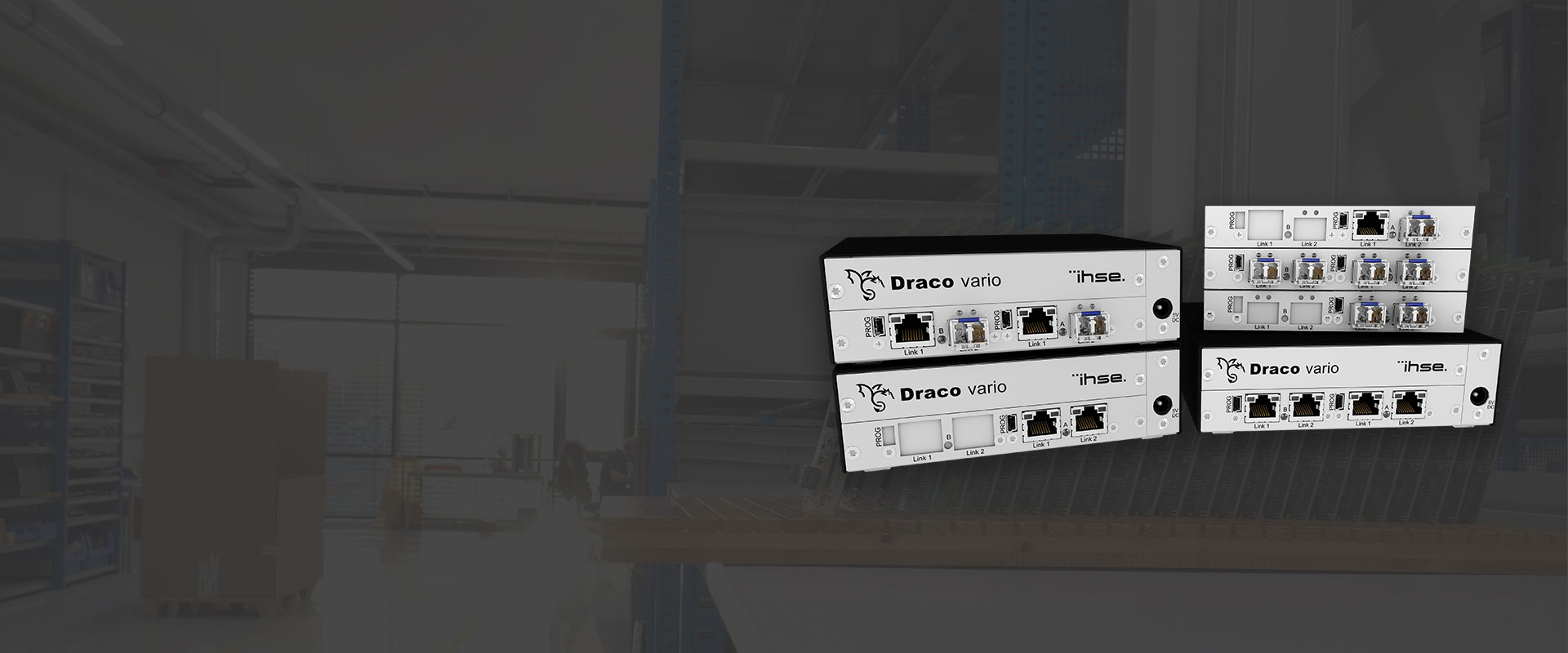

DRACO VARIO REPEATER
The highly-flexible Draco vario Repeater family provides the extension of digital signals and cross-conversion between Cat X and fiber cables.
Extension and format conversion
The installation of repeaters at intervals within a signal path extends the distance the signal can be transmitted to further distance via Cat X and fiber cable. The Draco vario repeater also offers cross-conversion between Cat X and fiber cables. Signals available on a Cat X network may be converted to fiber for transmission and converted back to Cat X at the receiver (or vice-versa). High-quality signal processing and integral amplification ensure no signal degradation or transmission artifacts.
Both device options can be deployed between extenders and between extender and matrix. The devices support our Flex-Port technology. Cat X and fiber ports will automatically configure as input or output according to the connected devices. No additional configuration is required. Please note that the scope of delivery includes only a module (without chassis). Single- and dual-repeater module versions are available for installation in Draco vario frame chassis.
Product Features
- Doubling of cable length
- Electrical/optical conversion
- Bidirectional data ports
- No configuration needed
- Compatible with all Draco KVM products
- Scope of delivery: Module (for mounting in Draco vario chassis)
Specifications
KVM
max. 2 x 10 km single-mode fiber (9µ)
Part-No.
All Variations
| Image | Modell: | Description |
|---|---|---|
 | 485-BC | Repeater module Cat X |
 | 485-BCC | Dual repeater module Cat X |
 | 485-BS | Repeater module fiber |
 | 485-BSS | Dual repeater module fiber |
 | 485-BX | Repeater module Cat X/fiber |
 | 485-BXX | Dual repeater module Cat X/fiber |
System Diagram
