DRACO VARIO DUAL-HEAD / DUAL-LINK

The Draco vario Dual-Head/Dual Link KVM extender is available in two variants to either extend DVI Dual Link video signals or transmit two DVI signals to two monitors via one data cable.

DVI Dual-Head and Dual Link extension

Draco vario DH / DL (Series 482)

The Draco vario Dual-Head KVM extender enables the connection of two DVI monitors over a single Cat X or fiber cable, saving the expense of a second extender and reducing cabling cost and installation effort. When used in conjunction with KVM matrix systems, the Draco vario Dual-Head KVM extender saves valuable matrix ports.

It’s sister product, the Draco vario Dual Link KVM extender, enables the transmission of DVI signals to one single monitor up to 4K@30Hz resolution. Extension of signals requires a single data cable.

The extenders are compatible with regular Single-Head/Single extenders: Consoles can access Single-Head/Single Link CPU Units instantaneously. In this situation, signals from Single-Head/Single Link sources are embedded within the Dual Link signal format and can be switched with no discernible switching delay. Single-Head/Single Link images are displayed at their own native resolution within a blanked area on-screen.

Product Features

Draco vario DH / DL (Series 482)
  • Excellent image quality at all resolutions
  • Compatible with all major operating systems
  • Compatible with all IHSE Draco KVM switches
  • Only one KVM matrix port per unit required
  • Wide range of additional options:
    – Two USB ports for HID devices
    – USB 2.0 embedded
    – Serial interface (RS232 or RS422)
    – Analog audio
    – Digital audio
    – DVI-D
  • Redundant interconnect link
  • 19” rack mount kit available
  • All devices with redundant power supply (load-sharing) available

Specifications

Draco vario DH / DL (Series 482)
Input
DMS-59 (DVI-D Dual-Head/Single Link adapter)
DMS-59 (DVI-D Dual Link adapter)
Output
DMS-59 (DVI-D Dual-Head/Single Link adapter)
DMS-59 (DVI-D Dual Link adapter)
Data rates (max)
2 x 165 MPixel/s (Dual-Head)
330 MPixel/s (Dual Link)
Maximum Resolutions
Draco vario Dual-Head:
2 x 1920 x 1200 @ 60 Hz
Draco vario Dual Link:
2560 x 2048 @ 60 Hz
4096 x 2160 @ 30 Hz
Color Depth
8 bit / True Color
Maximum transmission range for video and USB-HID signals (end-to-end connection)
Cat X: 140 m (459 ft)
Single-Mode 9μm: 10,000 m (32,808 ft)
Single-Mode 9μm XV: 5,000 m (16,404 ft)
Multi-Mode 50μm (OM3): 1,000 m (3,280 ft)
Multi-Mode 50μm: 400 m (1,312 ft)
Optional Interfaces
USB 2.0, analog audio with RS232, digital audio, PS/2, etc
Keyboard/Mouse
USB-HID

Notice:
Transmission ranges for transparent USB when using add-on modules
When using L474/R474 add-on modules with transparent USB, the binding specifications stated in the data sheets of the add-on modules apply.

Part-No.

Draco vario DH / DL (Series 482)
CPU Unit: Cat X

L482-B2HC

CPU module, 1x Cat X, 2x monitors, single-link, 2x USB-HID

L482-B2HCR

CPU module, 2x Cat X (redundant), 2x monitors, single-link, 2x USB-HID

L482-BDHC

CPU module, 1x Cat X, 1x monitor, dual-link or 4K30, 2x USB-HID

L482-BDHCR

CPU module, 2x Cat X (redundant), 1x monitor, dual-link or 4K30, 2x USB-HID

L482-B2HS

CPU module, 1x Fiber, 2x monitors, single-link, 2x USB-HID

L482-B2HSR

CPU module, 2x Fiber (redundant), 2x monitors, single-link, 2x USB-HID

L482-BDHS

CPU module, 1x Fiber, 1x monitor, dual-link or 4K30, 2x USB-HID

L482-BDHSR

CPU module, 2x Cat X (redundant), 1x monitor, dual-link or 4K30, 2x USB-HID

L482-B2HX

CPU module, 1x Fiber XV, 2x monitors, single-link, 2x USB-HID

L482-B2HXR

CPU module, 2x Fiber XV (redundant), 2x monitors, single-link, 2x USB-HID

L482-BDHX

CPU module, 1x Fiber XV, 1x monitor, dual-link or 4K30, 2x USB-HID

L482-BDHXR

CPU module, 2x Fiber XV (redundant), 1x monitor, dual-link or 4K30, 2x USB-HID

R482-B2HC-R1

CON module, 1x Cat X, 2x monitors, single-link, 2x USB-HID

R482-B2HCR-R1

CON module, 2x Cat X (redundant), 2x monitors, single-link, 2x USB-HID

R482-BDHC-R1

CON module, 1x Cat X, 1x monitor, dual-link or 4K30, 2x USB-HID

R482-BDHCR-R1

CON module, 2x Cat X (redundant), 1x monitor, dual-link or 4K30, 2x USB-HID

R482-B2HS-R1

CON module, 1x Fiber, 2x monitors, single-link, 2x USB-HID

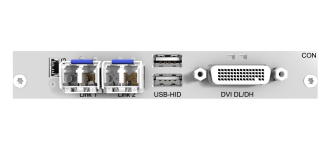

R482-B2HSR-R1

CON module, 2x Fiber (redundant), 2x monitors, single-link, 2x USB-HID

R482-BDHS-R1

CON module, 1x Fiber, 1x monitor, dual-link or 4K30, 2x USB-HID

R482-BDHSR-R1

CON module, 2x Fiber (redundant), 1x monitor, dual-link or 4K30, 2x USB-HID

R482-B2HX-R1

CON module, 1x Fiber XV, 2x monitors, single-link, 2x USB-HID

R482-B2HXR-R1

CON module, 2x Fiber XV (redundant), 2x monitors, single-link, 2x USB-HID

R482-BDHX-R1

CON module, 1x Fiber XV, 1x monitor, dual-link or 4K30, 2x USB-HID

R482-BDHXR-R1

CON module, 2x Fiber XV (redundant), 1x monitor, dual-link or 4K30, 2x USB-HID

Downloads

Draco vario DH / DL (Series 482)
Draco vario Dual-Head
Draco vario Dual-Link

System Diagram

Draco vario DH / DL (Series 482)
