KVM Switches

Access and management of multiple computers

A KVM matrix switch enables access to, and management of, any size of computer installation. Sources can be accessed, switched and shared instantly by users. Any connected user console, consisting of keyboard, mouse, monitor or other peripherals, can access any computer within the network. Expensive equipment and software licenses can be shared between multiple users accessing the same computers from their individual workstations in real time.

The system supports all relevant computer video formats up to 8K and higher resolutions as well as SDI and USB 3.0. Switches include comprehensive features such as multi-screen control and cross-conversion between AV signals and transmission media (Cat X and fiber).

A secure IP interface provides remote users with seamless, location-independent IP access via browser or client. For maximum security, the core matrix is completely shielded from the TCP/IP network

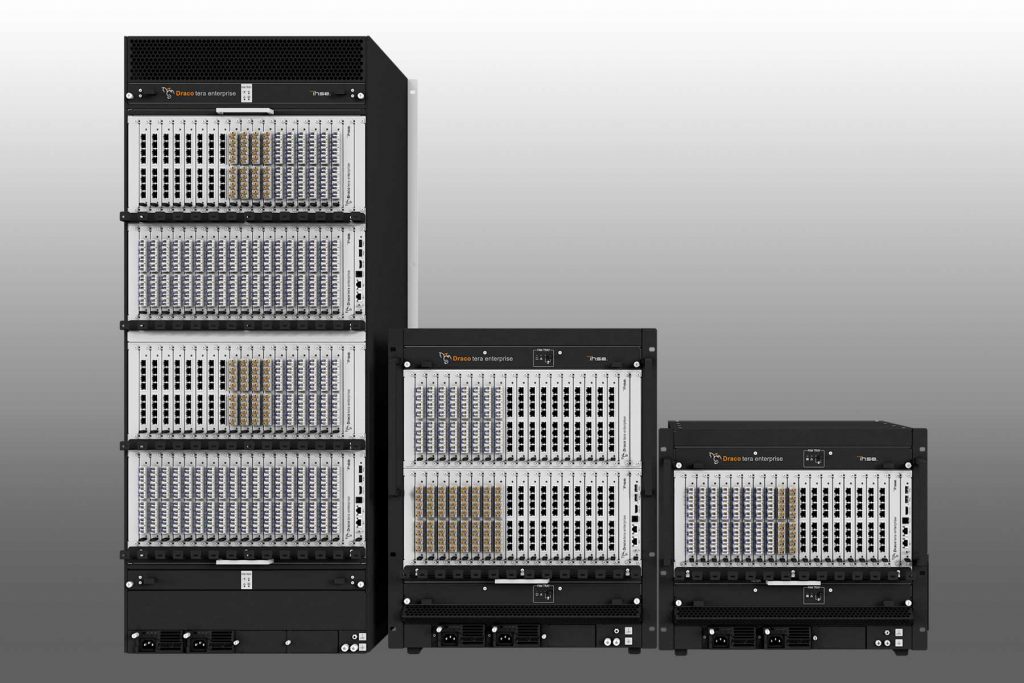

Draco tera enterprise

A modular KVM switch that delivers the ultimate in flexibility, back-up and redundant component options, scalability and future-proofing. Ideal formission-critical installations in which system down-time is unacceptable and failure is not an option.

Highlights
  • Freely assignable, non-blocking, 48-576 ports
  • Mixed copper and fiber configuration
  • Digital video formats up to 4K 60Hz (4:4:4)
  • Multiple chassis and location capability
  • In-band and out-of band control
  • Extensive redundancy and backup options

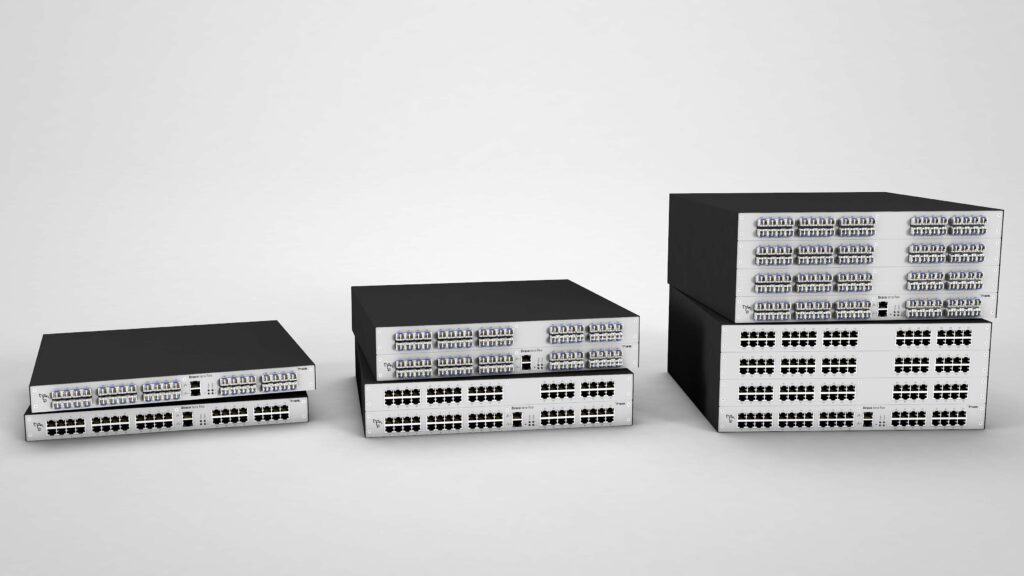

Draco tera flex

Along with compact design and low cost the Draco tera flex family incorporates features from the Draco tera enterprise series of switches; including SNMPv3, LDAPS, multilingual on-screen display, encrypted communication for maximum security (for API, Draco tera configuration tool and Matrix Grid) and fast booting. Draco tera flex devices can now be interconnected easily in a decentralized matrix system using matrix grid technology.

Highlights
  • Enterprise functions in a compact format
  • Three housing variants (1, 2 and 4 U) with between 16 and 160 ports
  • All ports can be used flexibly as inputs or outputs
  • 8-port expansion modules can be mixed between Cat and fiber optic types
  • 1 Gbit/s or 3 Gbit/s bandwidth
  • Integrated power supply and redundant network connection
  • Prepared for 19″ installation, mounting brackets included

Draco tera compact

The 8-port Draco tera compact switch is available as an entry-level variant for smaller KVM installations using the same technology found in the larger Draco tera enterprise switch systems. These models are offered in Cat X, fiber, fiber XV or universal combinations to switch. Based on a small footprint package, the cost effective frame can be used with all of the Draco extender modules.

Highlights
  • Digital video formats up to 4K 60Hz (4:4:4)
  • In-band and out-of band control
  • PSU and port redundancy options
  • Instant switching
  • Up to 6G bandwith

KVM Switches for total connectivity

The Draco tera range extends from 8 to 576 non-blocking, assignable ports. With mixed operation over copper and fiber cables, the switches handle all types of digital video up to 4K UHD resolution as well as SDI and USB3.0. The Draco tera KVM switch delivers visually lossless transmission, instant connectivity and extensive configuration and redundancy options.

Draco tera connects and switches users to remote work-stations instantly. With no transmission delay or picture degradation. It is the ideal solution for today’s facilities.

Click here for an overview of all case studies.

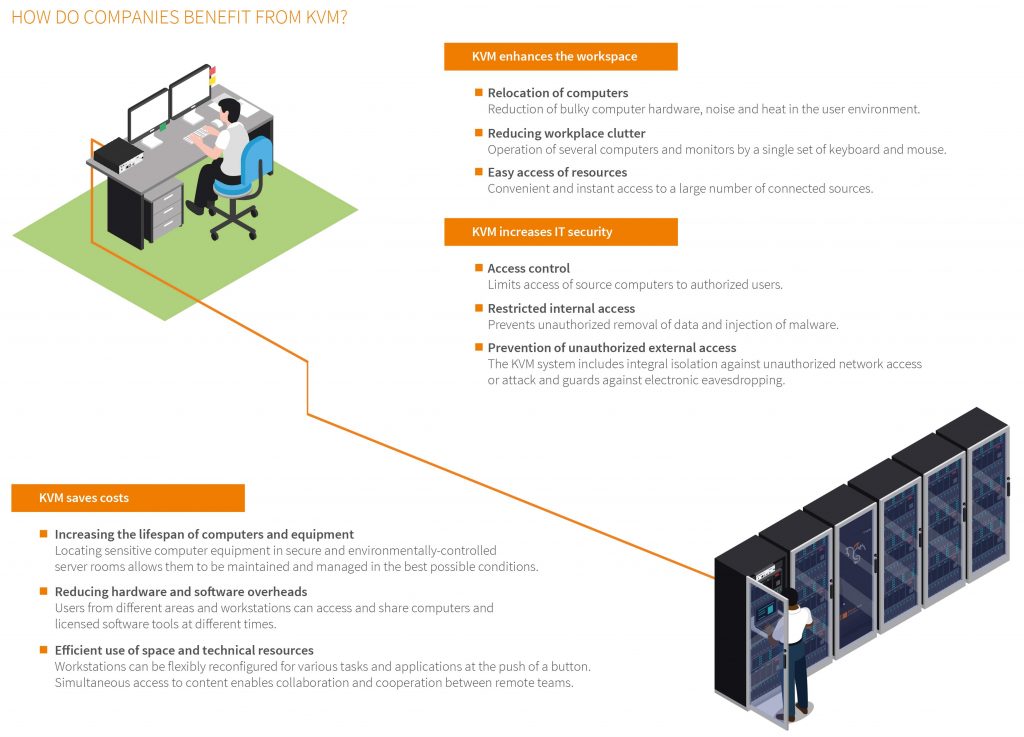

By adding a KVM switch, users can connect to multiple computers with their monitor, keyboard and mouse. This offers significant advantages: Each operator can instantly access the tools they need; equipment and software can be shared between users throughout a complex. Also, multiple computers and monitors can be conveniently operated from one keyboard and mouse.

IHSE KVM Switches

What is KVM?

KVM stands for Keyboard-Video-Mouse, referring to the familiar workplace computer input and output devices.

Our mission-critical system solutions extend the distance between the computer and peripheral devices (keyboard, screen, mouse). Allowing users to select between different source devices to create more comfortable and efficient working environments and streamlined workflows. We offer KVM products for the switching, sharing, extension and conversion of all types of computer signals, including analog and digital video and audio, USB and SDI video; applicable to all markets. Long distances are bridged by Cat X, fiber or mixed cabling, depending on requirements and applications

What products and solutions do we offer?

KVM extenders enable computer access from remotely-located workstations. This makes it easy to protect critical CPUs and servers from heat, dirt, moisture and unauthorized access.

Removing noisy, bulky, heat-producing computers from the operator workplace creates a more pleasant, less-cluttered, working environment Users’ desks simply require basic peripheral devices: monitors, keyboards and pointing devices.

A KVM matrix switch enables access to, and management of, any size of computer installation. Sources can be accessed, switched and shared instantly by users. Any connected user console, consisting of keyboard, mouse, monitor or other peripherals, can access any computer within the network. Expensive equipment and software licenses can be shared between multiple users accessing the same computers from their individual workstations in real time.

Why are our systems modular?

Individual KVM modules can be integrated together to meet specific requirements. Enabling tailor-made solutions for every individual project. Standardized modules facilitate installation in common 19-inch chassis or rack cabinets found in server rooms.

Modularity offers a high level of investment security. Whenever new video standards are added or additional interfaces are required, the system can easily be expanded with additional modules. This saves time-consuming and cost-intensive system replacements.

How does it work?

Extend Your Reality

Wie KVM-Systeme mit niedriger Latenzzeit agile Umgebungen für Industriedesign unterstützen…. [MEHR]

True KVM

So wird Ihre KVM-Investition zukunftsfähig, zuverlässig, flexibel und sicher…. [MEHR]

eSports & KVM

Erfahren Sie, wie KVM-Switching-Lösungen zu Display-Management-Systemen werden… [MEHR]

KVM-Switching - Alle Infos im Überblick

PDF-Dokument mit Tipps und Schaubildern – wenn Sie über eine KVM-Lösung nachdenken
