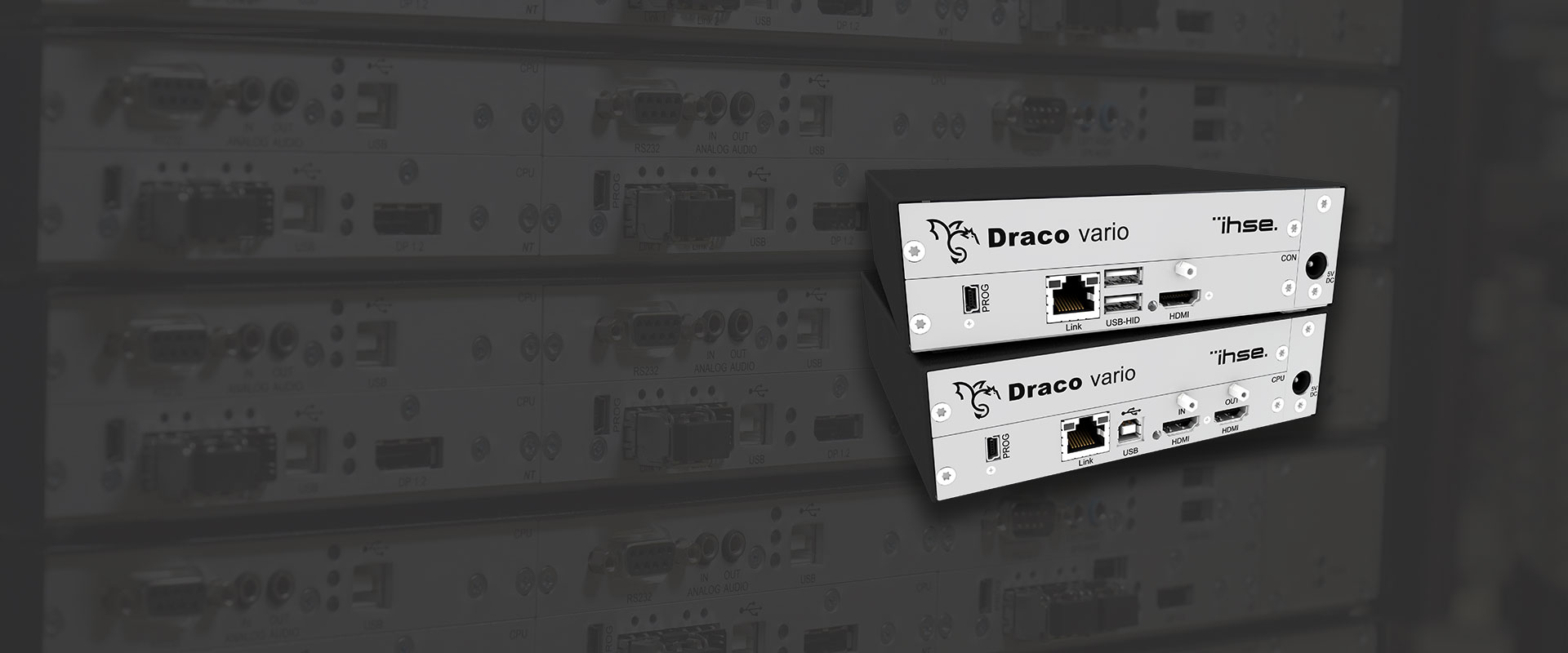

Draco vario HDMI
The Draco vario HDMI extender gives users real-time access to HDMI computers from a remote workstation, including monitor, keyboard, mouse, loudspeakers and other peripheral devices.
Long-distance HDMI extension
The Draco vario HDMI is the perfect extender for high resolution HDMI video signals of superior quality, including 3D formats and digital audio. Multi-Head applications are achieved using an optional module.
The Draco vario HDMI extender is ideal for broadcast applications as well as professional audio and video editing. Use the Draco vario HDMI extender to transmit your audio and video data to the highest resolutions, including Full HD and 2K.
Product Features
Lockable HDMI port
High resolution video can be transmitted via HDMI interface
The interface is compatible with 3D technology. Side-by-Side and Top-and-Bottom formats can be transmitted
The standard version allows operation of a remote workstation with a HDMI/DVI-D monitor and two USB-HID devices (such as a keyboard and mouse)
Compatible with all major operating systems
Compatible with all IHSE Draco KVM switches, Draco vario and compact extenders, Draco vario chassis and modules
HDMI embedded audio is cross compatible with digital audio add-on modules
Redundant data link
Fits into one 19“/1U rack
Draco vario HDMI Inquiry
For personalized insights and dedicated support, explore our additional resources.
Specifications
Single-Mode 9μm: 10,000 m (32,808 ft)
Single-Mode 9μm XV: 5,000 m (16,404 ft)
Multi-Mode 50μm (OM3): 1,000 m (3,280 ft)
Multi-Mode 50μm: 400 m (1,312 ft)
Transmission ranges for transparent USB when using add-on modules
When using L474/R474 add-on modules with transparent USB, the binding specifications stated in the data sheets of the add-on modules apply.
System Diagrams
Part-No.
-
CON Unit: Cat X
R481-BHHCCON module, 1x Cat X, 1x HDMI monitor, single-link, 2x USB-HID
R481-BHHCRCON module, 2x Cat X (redundant), 1x HDMI monitor, single-link, 2x USB-HID
R481-BHHCWCON module, 1x Cat X, 1x HDMI monitor, single-link, 2x USB-HID, local KVM-Switch
R481-BHHCWRCON module, 2x Cat X (redundant), 1x HDMI monitor, single-link, 2x USB-HID, local KVM-Switch

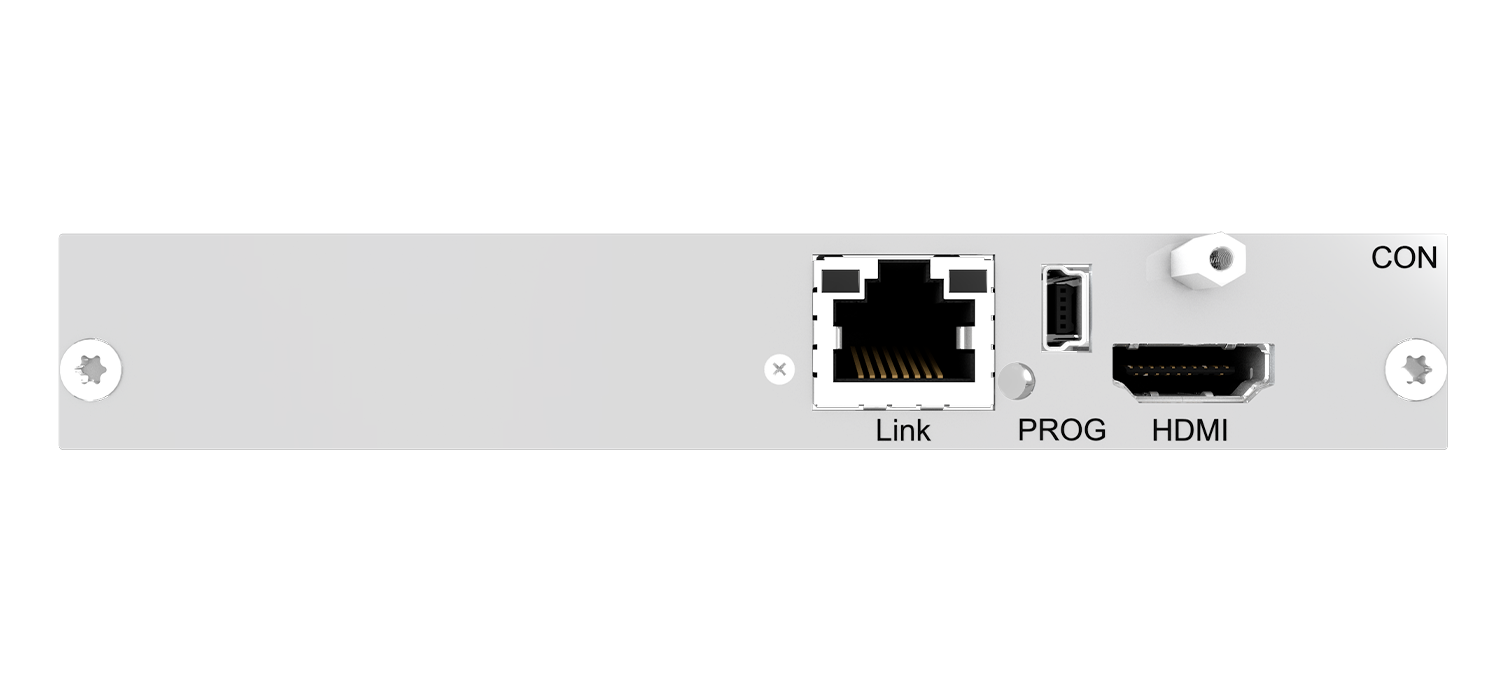

R481-BHXCCON module, 1x Cat X, 1x HDMI monitor, single-link
R481-BUHCLCON module, 1x Cat X, HDMI 4K30
R481-BUHCLRCON module, 2x Cat X (redundant), HDMI 4K30 -
CON Unit: Fiber
R481-BHHSCON module, 1x Fiber, 1x HDMI monitor, single-link, 2x USB-HID
R481-BHHSRCON module, 2x Fiber (redundant), 1x HDMI monitor, single-link, 2x USB-HID
R481-BHHSWCON module, 1x Fiber, 1x HDMI monitor, single-link, 2x USB-HID, local KVM-Switch
R481-BHHSWRCON module, 2x Fiber (redundant), 1x HDMI monitor, single-link, 2x USB-HID, local KVM-Switch

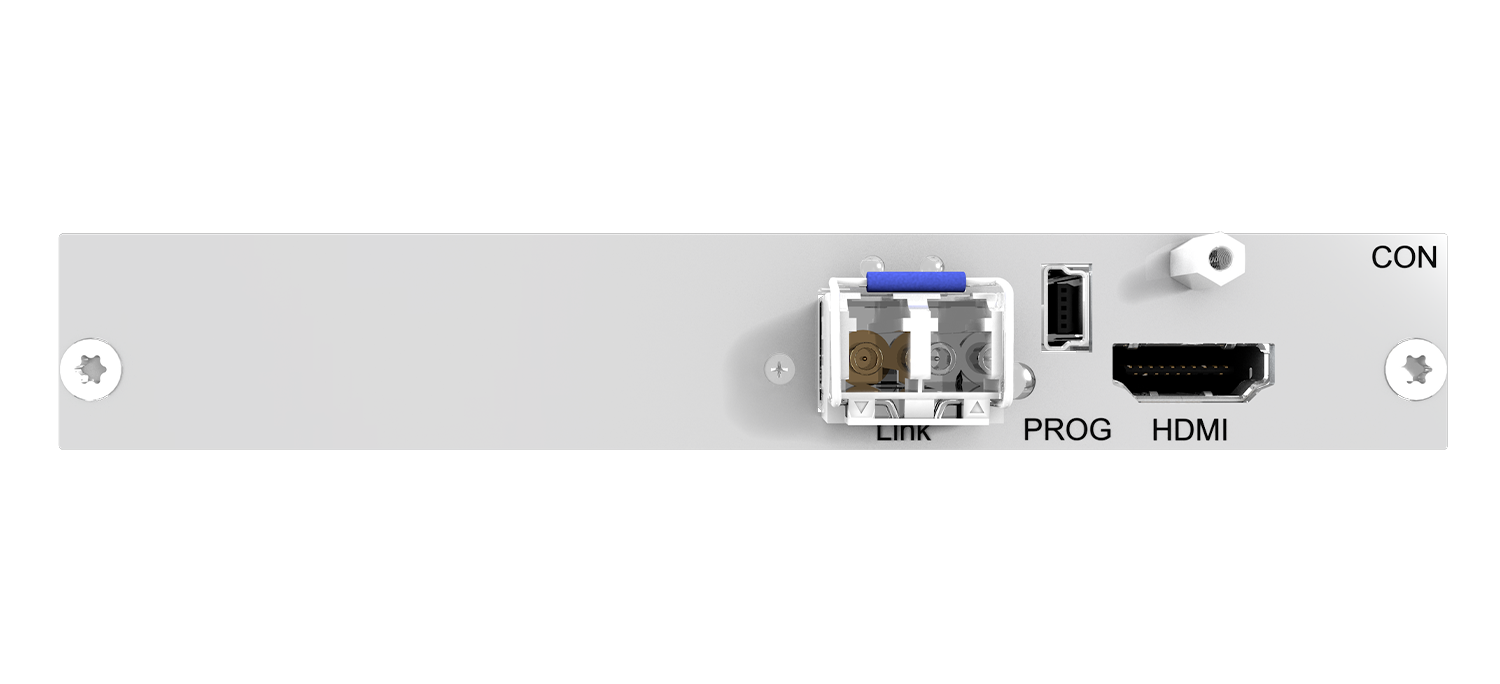

R481-BHXSCON module, 1x Fiber, 1x HDMI monitor, single-link
R481-BUHSLCON module, 1x Fiber, 1x HDMI monitor 4K30
R481-BUHSLRCON module, 2x Fiber, 1x HDMI monitor 4K30, redundant -
CPU Unit: Cat X
L481-BHHCCPU module, 1x Cat X, 1x HDMI monitor, single link, 2x USB-HID
L481-BHHCLCPU module, 1x Cat X, 1x HDMI monitor, single-link, 2x USB-HID, local output
L481-BHHCLRCPU module, 2x Cat X (redundant), 1x HDMI monitor, single-link, 2x USB-HID, local output
L481-BHHCRCPU module, 2x Cat X (redundant), 1x HDMI monitor, single-link, 2x USB-HID

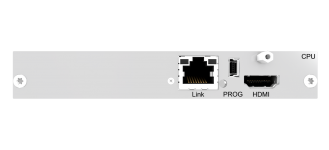

L481-BHXCCPU module, 1x Cat X, 1x HDMI monitor, single-link
L481-BUHCLCPU module, 1x Cat X, 1x HDMI monitor 4K30
L481-BUHCLRCPU module, 2x Cat X, 1x HDMI monitor 4K30, redundant -
CPU-Unit: Fiber
L481-BHHSCPU module, 1x Fiber, 1x HDMI monitor, single-link, 2x USB-HID
L481-BHHSLCPU module, 1x Fiber, 1x HDMI monitor, single-link, 2x USB-HID, local output
L481-BHHSLRCPU module, 2x Fiber (redundant), 1x HDMI monitor, single-link, 2x USB-HID, local output
L481-BHHSRCPU module, 2x Fiber (redundant), 1x HDMI monitor, single-link, 2x USB-HID
L481-BHXSCPU module, 1x Fiber, 1x HDMI monitor, single-link
L481-BUHSLCPU module, 1x Fiber, 1x HDMI monitor 4K30
L481-BUHSLRCPU module, 2x Fiber, 1x HDMI monitor 4K30, redundant
